Mini Wireless Camera

Mini Wireless Camera thumbnail-1
Mini Wireless Camera photo-1
Negotiable MOQ: 100 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GTW
Model Number:
ZJ201G
Contact Supplier Request Quote Chat Now
Shenzhen Gtw Security Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GTW
Model Number ZJ201G
Type Analog Camera
Style Mini Camera
Sensor CMOS
Technology Infrared
Special Features Vandal-proof

Specifications

-1.2GHz Wireless Pinhole Camera
-High quality Color CMOS sensor
-Built-in microphone
-View Angles: 62 degrees

Details of 1.2GHz Wireless Pinhole Camera



Camera Specification



-Frequency: 1.2GHz
-Imaging Sensor: 1/3 inch OMNIVISION Color CMOS
-Horizontal Resolution: 380TV Line
-CMOS Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC)
-View Angles: 62 degrees
-Minimum Illumination: 2Lux
-Gain Control: Automatic
-Transmission Power: 50mW
-Consumption Current: 80 mA
-Modulation Mode: FM
-Operating Range: 30m/100m (Obstructed / Unobstructed)
-Power: DC 8V 200mA or 9V battery(not included)
-Operating Temperature: -10oC ~ +40oC
-Operating Humidity: 85%RH
-Dimension(WxLxH):21x21x21 mm
-Weight: 20g



Receiver Specification



-Frequency: 960MHZ-1.2GHz
-Scanning Frequency: PAL/CCIR: 50GHz NTSC/EIA: 60Hz
-Receiving Sensitivity: <-85dBm
-Power: DC 9V 500mA
-Operating Temperature: -10~ +40oC
-Dimension(WxLxH): 110x80x23 mm
-Weight: 130g

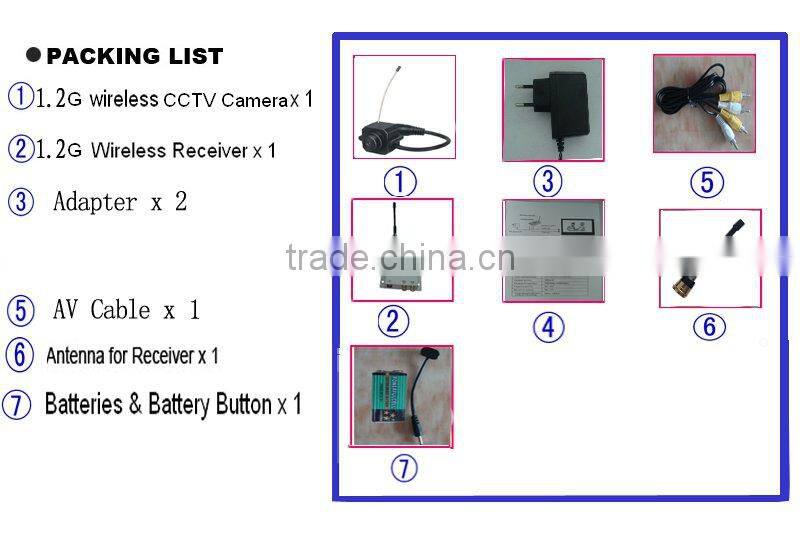

Standard Package Content



-1.2GHz Wireless Pinhole Camera with Built-in Microphone
-1.2GHz Wireless Fine-tuning AV Receiver
-Antenna for Receiver
-AV cable
-Power Adaptor for Camera
-Power Adaptor for Receiver



Packing Details:



-Gift Box Size : 19.5x18x18cm
-Carton Box Size: 41.5x37.5x42cm
-1 gift box : 1 Unit
-1 Carton Box : 20 sets
-Gross Weight : 11 kg/Carton
-Net Weight : 10 kg/Carton
-Weight : 0.5 kg/Carton



Mini wireless camera
