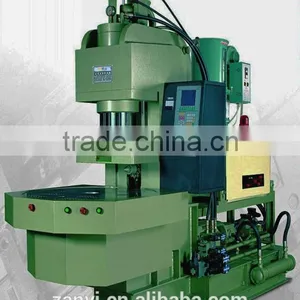

Injection Molding Machine Manufacturer
US$ 8,000 - 8,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, screw injection
Style:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hand Operated Injection Molding MachineUS$ 8,000 - 8,200MOQ: 1 Set -
Servo Motor Injection Moulding MachineUS$ 8,000 - 8,200MOQ: 1 Set
-
Bakelite Injection Molding MachineUS$ 8,000 - 8,200MOQ: 1 Set
-
Clf Injection Moulding MachineUS$ 8,000 - 8,200MOQ: 1 Set
-
100ton Shoe Sole Injection MachineUS$ 8,000 - 8,200MOQ: 1 Set
Condition
New
Type
Other, screw injection
Style
Vertical
Brand Name
ZAN YI
Model Number
ZY-850-C-R
Place of Origin
Guangdong, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
249g,325g,412g
Injection Rate
43cm3/sec,56.6cm3/sec,71.6cm3/sec
Clamping Force
85T
Opening Stroke
280mm
Power(W)
23KW
Certification
CE,ISO9001:2008
After-sales Service Provided
Engineers available to service machinery overseas
injection molding machine manufacturer
Product Details:
Item Name: plastic rotary machine
| Speifications: | |||||
| MODEL | UNIT | ZY-850-C-R | |||
| Screw Diameter | Mm | 42 | 48 | 54 | |
| Injection Pressure | kg/cm² | 2173 | 1663 | 1314 | |
| Theoretical Shot Volume | cm³ | 277 | 362 | 458 | |
| Max.Shot Weight(ps) | g | 249 | 325 | 412 | |
| Safe Shot Weight(ps) | OZ | 8.9 | 11.6 | 14.7 | |
| Max.Shot Weight(ps) | cm³/sec | 43 | 56.6 | 71.6 | |
| Injection Rate | mm | 200 | |||
| Screw Speed Max. | rpm | 0-160 | |||
| Nozzle Comtact Force | Tons | 1.76 | |||
| Nozzle Retraction Stroke | mm | 180 | |||
| Number of Temperature Control | 4 | ||||
| Clamping Force | Tons | 85 | |||
| Disk Size | mm | 980 | |||
| Min.Mold Height | mm | 230 | |||
| Opening Stroke | mm | 280 | |||
| Max.Open Daylight | mm | 510 | |||
| Ejetor Force | Tons | 2.2 | |||
| Ejetor Stoke | mm | 135 | |||
| Max.Hydaulic Pressure | kg/cm² | 140 | |||
| Pump Output | l/min | 47 | |||
| Oil Resservoir Capacity | l | 300 | |||
| Cooling Waer Consumption | l/hr | 1000-1200 | |||
| Pump Motor Power | KW/HP | 11/15P | |||
| Berrel Heating Power | KW | 8.5 | |||
| Total Electricity | KW | 23 | |||
| Machine Weight | Tons | 5.8 | |||
| Machine Dimensions(LxWxH) | m | 3.4*1.4*2.45 | |||
| Shipping Weight | Tons | 6.5 | |||
| Shipping Measurements(LxWxH) | m | 3.6*1.5*2.7 | |||
Features:
1.Alternate the two lower dies of ZY-C series double-mode round slide board on a flat surface.Several dies are used for alternating working at the same flat face.One die is used for confectioning,and the other dies are used for inserted action outside.
features,working efficiency can be advanced in large range.The finished goods are propped up to outside for completion.
Samples produced:
