Mini Vertical Plastic Injection Molding Machine 30 Tons
US$ 4,000 - 4,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, screw injection
Style:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
15T Small Plastic Injection Molding MachineUS$ 4,000 - 4,200MOQ: 1 Set -
35T Injection Molding Machine for Plastic ProductsUS$ 8,000 - 8,200MOQ: 1 Set
-
45T Semi Auto Plastic Injection Molding MachineUS$ 8,000 - 8,200MOQ: 1 Set
-
Abs Injection Molding MachineUS$ 8,000 - 8,200MOQ: 1 Set
-
Hand Operated Injection Molding MachineUS$ 5,000 - 5,200MOQ: 1 Set
Condition
New
Type
Other, screw injection
Style
Vertical
Brand Name
ZAN YI
Model Number
ZY-200ST
Place of Origin
Guangdong, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
58g&67g
Injection Rate
67~76.7cm3/sec
Clamping Force
30T
Opening Stroke
180mm
Power(W)
4.2KW
Certification
CE,ISO9001:2008
After-sales Service Provided
Engineers available to service machinery overseas

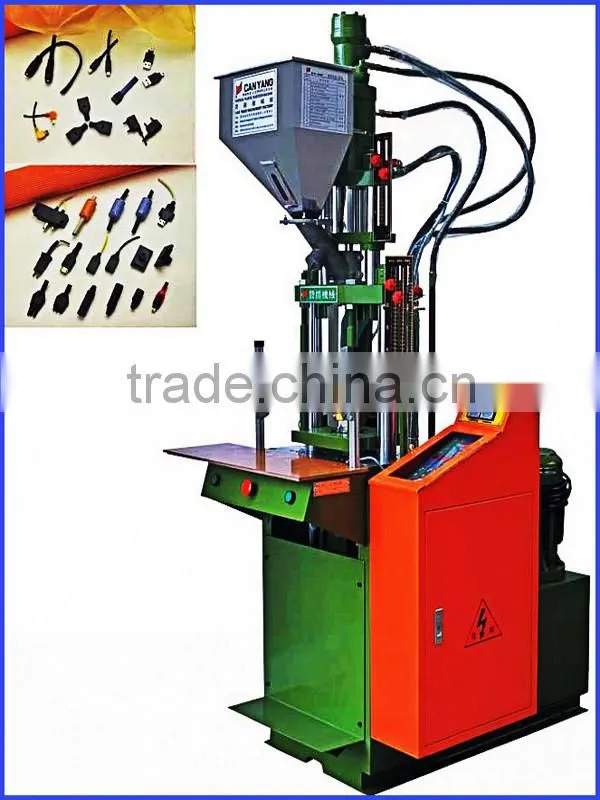

Mini Vertical Plastic injection Molding machine 30 tons
| Specifications: | ||||
| MODEL | UNIT | ZY-200ST | ||
| Screw Diameter | Mm | 28 | 30 | |
| Injection Pressure | kg/cm² | 1019 | 896 | |
| Theoretical Shot Volume | cm³ | 64.6 | 74 | |
| Max.Shot Weight(ps) | g | 58 | 67 | |
| Safe Shot Weight(ps) | OZ | 2.0 | 2.4 |
|
| Max.Shot Weight(ps) | cm³/sec | 67 | 76.7 | |
| Injection Rate | mm | 105 | ||
| Screw Speed Max. | rpm | 0-200 | ||
| Nozzle Comtact Force | Tons | 4.45 | ||
| Nozzle Retraction Stroke | mm | 130 | ||
| Number of Temperature Control | 3 | |||
| Clamping Force | Tons | 30 | ||
| Platen Size | mm | 480*310 | ||
| Distance between tie bere | mm | 295 | ||
| Min.Mold Height | mm | 100/60 | ||
| Opening Stroke | mm | 180 | ||
| Max.Open Daylight | mm | 280/240 | ||
| Ejetor Force | Tons | 1.3 | ||
| Ejetor Stoke | mm | 35 | ||
| Max.Hydaulic Pressure | kg/cm² | 140 | ||
| Pump Output | l/min | 29.5 | ||
| Oil Resservoir Capacity | l | 100 | ||
| Cooling Waer Consumption | l/hr | 400-600 | ||
| Pump Motor Power | KW/HP | 3.75/5.5HP | ||
| Berrel Heating Power | KW | 1.8 | ||
| Total Electricity | KW | 5.5 | ||
| Packing Weight | ton | 1.3 | ||
| Packing size(LxWxH) | m | 1.4*0.90*2.37 | ||
Features:
1.Straight screw ejected assembly.
2.Two(three) phase temperature ,ejected speed,backing pressure and screw speed is suitable for various plastic to confectioned.
3.Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4.Low-pressure closed die assembly can protect the safety of die .

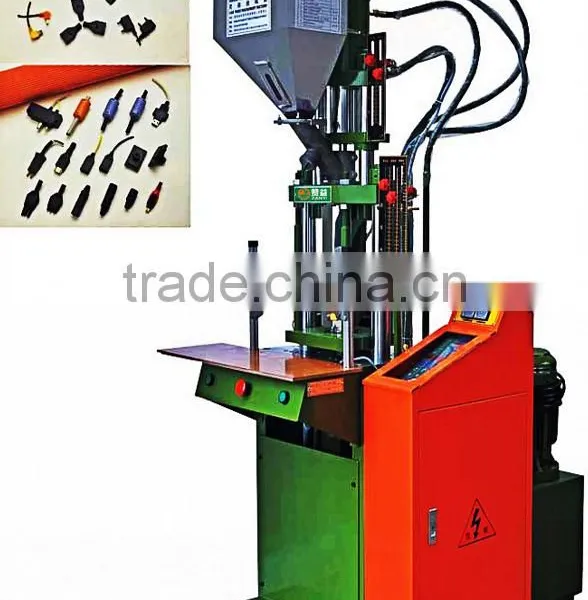

Samples produced:
