35T Full Automatic Micro Plastic Injection Molding Machine

35T Full Automatic Micro Plastic Injection Molding Machine thumbnail-1
35T Full Automatic Micro Plastic Injection Molding Machine photo-1
US$ 8,000 - 8,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, screw injection
Style:
Vertical
Contact Supplier Request Quote Chat Now
Dongguan Zan Yi Machinery Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, screw injection
Style Vertical
Brand Name ZAN YI
Model Number ZY-250ST-DM
Place of Origin Guangdong, China
Plastic Type Thermoplastic
Automatic Yes
Injection Weight 56g,64g,74g
Injection Rate 57cm3/sec,66cm3/sec,76cm3/sec
Clamping Force 35T
Opening Stroke 180mm
Power(W) 6.3KW
Certification CE,ISO9001:2008
After-sales Service Provided Engineers available to service machinery overseas

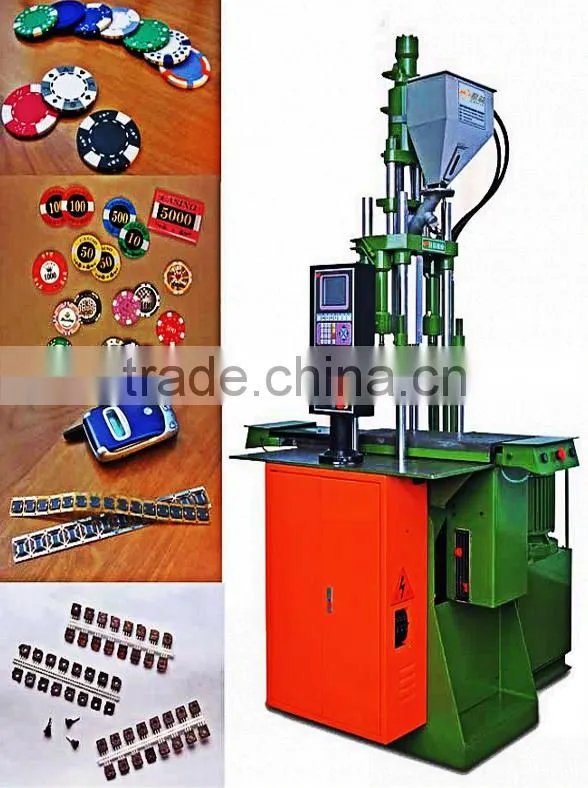

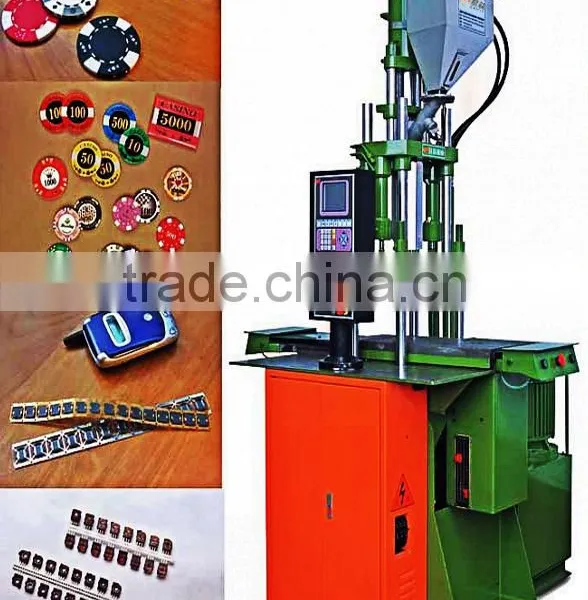

35T full automatic micro plastic injection molding machine



 Specifications:
MODEL UNIT ZY-250ST-DM
Screw Diameter Mm 26 28 30
Injection Pressure kg/cm² 1530 1278 886
Theoretical Shot Volume cm³ 61 70.8 81
Max.Shot Weight(ps) g 56 64 74
Safe Shot Weight(ps) OZ 2.0 2.3 2.6
Max.Shot Weight(ps) cm³/sec 57 66 76
Injection Rate mm 115
Screw Speed Max. rpm 0-205
Nozzle Comtact Force Tons 4.45
Nozzle Retraction Stroke mm 170
Number of Temperature Control   3
Clamping Force Tons 35
Slide Platen Size mm 700*350
Distance Between Tie Bere mm 375*205
Min.Mold Height mm 150/100
Opening Stroke mm 180
Max.Open Daylight mm 330/485
Ejetor Force Tons 2.2
Ejetor Stoke mm 135
Max.Hydaulic Pressure kg/cm² 140
Pump Output l/min 34.5
Oil Resservoir Capacity l 100
Cooling Waer Consumption l/hr 400-600
Pump Motor Power KW/HP 3.75/5.5P
Berrel Heating Power KW 2.4
Total Electricity KW 6.3
Machine Weight Tons 1.7
Machine Dimensions(LxWxH) m 1.5*1.15*2.52
Shipping Weight Tons 2
Shipping Measurements(LxWxH) m 1.8*1.3*2.3

 Features:

1.Straight scew ejected assembly.

 2.Two(three) phase temperature ,ejected speed,backing pressure and screw speed is

suitable for various plastic to confectioned.

3.Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.

4.Low-pressure closed die assembly can protect the safety of die .

5.Material tube can be lifted ,It is easy to clean stub bar .It is easy to fix die .

6.Can be installed a single mold or double shuttle table.
