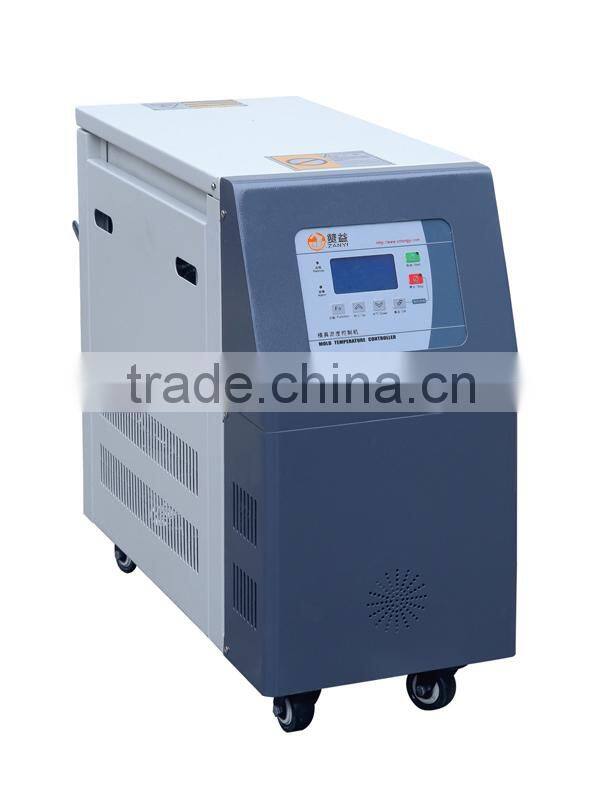

9kw Water Type Induction Heating Machine
- Shenzhen China
- Money Gram Credit Card
You May Like
-
Injection Mold Temperature Controller for Plastic
-
Heaters for Injection Molding Machine
-
Digital Mould Temperture Controller for Heating Pad
-
Oil Temperature Controller for Heat Press
-
Oil Heating PAD Mold Temperature Controller for Injection Molding Machine
-
Injection Mold Temperature Controller Manual
Product Details
| Condition | New | Type | Water Temperature Machine | |
| Application | Plastic Industrial | Place of Origin | Guangdong, China | |
| Brand Name | Zanyi | Model Number | TMC90W | |
| Temperature Range | 35 ~120 | Temperature Control Accuracy | ±1 | |
| Dimension(L*W*H) | 600*280*620mm | Weight | 42KG | |
| Internal Piping Size | 1/2 INCH | Voltage | Customize | |
| Power(W) | 9KW | Certification | ISO9001 | |
| After-sales Service Provided | Overseas service center available |
Product Description
9kw water type induction heating machine )
| Model | TMC-90W |
| Temperature range | 35 C-120℃(H) |
| Heating medium | Water |
| Tank Capcity | 8L |
| Pump Power | 1HP |
| Pump Pressure | 2.8KG/CM2 |
| Heater | 9KW |
| Cooling type | direct cooling |
| Moldinlet & outlet | 3/8"*4 |
| Cooling water inlet | 1/2'' |
| L*W*H(MM) | 600*280*620mm |
| Weight (kg) | 42KG |
Choose to Configure
1.Muril -inlet & outlet joints.
2.Refractoy teflon hoses.
3.Thermal oil.
4.PID Temperature controller
Safety System :
1.Electric power's lack -phash & anti-phase Protector and its Signal Light.
2.Punch's Rolling back protector and its signal light.
3.Radiator's overload protector.
4.Buzzing alarm protector when lacking medium and its signal light.
5.Punch's overload protector and its signal light.
6.Inletting ultra-temperature protector and its signal light.
7. Oils overflowing protector and prepare connector.
8.Auto Oil recycling equipment and perpared connector.It is cleam and Economical to change the molds.
9.Special Value type of oil measurement.Its absoulutely safe in operating and maintenance.
10.Anti-explosion design in oil channel . Its absoulutely safe in operating and maintenance.
Features:
A:Improve injection mouding efficent.
1.Before forming ,TMC can automatic control temperature,can reached to the required temperature quickly,and always keep a constant temperature,reduce the time required for preheating the mold.
2.Keeps mold at correct temperatures even when machine is stopped thus eliminating start up delays in the morning or during daytime stops.
B: Improve injection moulding quality.
1.Accurate mold temperatures give even plastic flow patterns .Reduce flow & weld lines,help retain gloss appearance,Eliminate sink marks,silver streaking,delaminating,warping ect.......
2.Steady controlled temperatures make your plastic molding accurate in size & Consistent in quality.
C:Features of the units:
1.Water/oil dual purpose machine can use either water or oil heating medium.
2.Optional PID temperature controllers are used for accurate control of temperature within ± 1 ℃
3.Two step heating select of gives rapid temperature increase control when required thus saning time & power.
