Home > Products > Marine Environment Protection Plants > IMO MEPC Marine Oil Water Separator With 15ppm Bilge Alarm

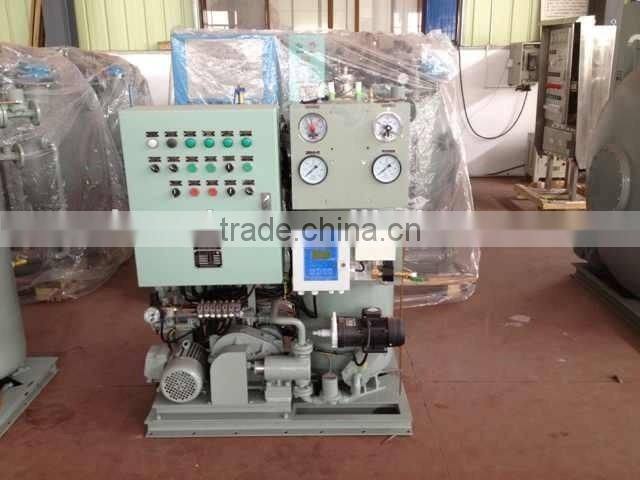

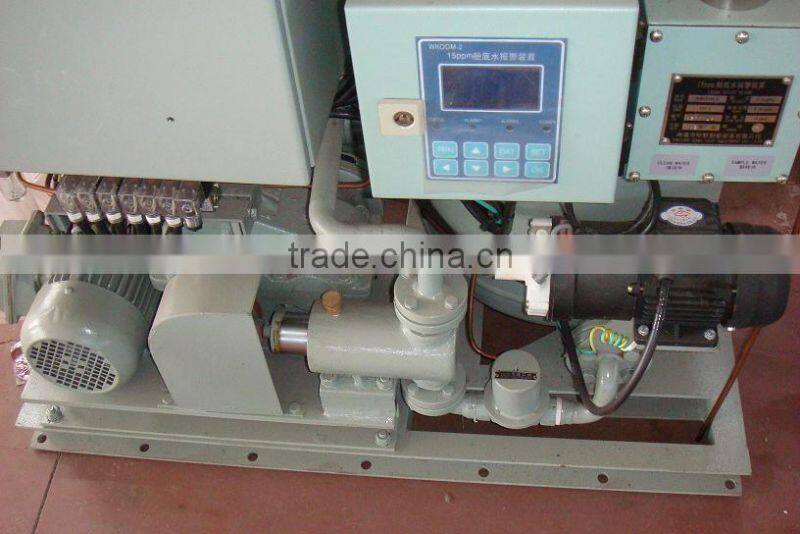

IMO MEPC Marine Oil Water Separator With 15ppm Bilge Alarm
- Shanghai China IMO Bilge Separator
- T/T Money Gram Credit Card
You May Like
-
EC & CCS Approval 2.5m3 /h Marine Oily Water Separator
-
MED Marine 15ppm Bilge Separator 3.0m3 /h Marine Oil Water Separator
-
EC Approved GRCM Series Compact Marine Sewage Treatment Plant
-
MED 15ppm Bilge Separator 4m3 Marine Oily Water Separator
-
IMO Approved MBR Marine Sewage Treatment Plant
-
15 Persons MBR Sewage Treatment Plant Price
Product Details
| Place of Origin | Shanghai, China | Brand Name | GATHERING Bilge Separator | |
| Model Number | GRC-2.0 Bilge Separator |
Product Description
IMO MEPC Marine Oil Water Separator
1.Introduction
15ppm Bilge Separator (Oil Water Separator) is a kind of environmental protection equipment designed
based on International Maritime Organization IMO MEPC 107(49) standard, the oil content in effluent water ≤ 15ppm
It’s the high-tech newest product which can effectively dispose all kinds of fluids in bilge water
including fuel oil,high-density residual oil and emulsion mixture combined with
black ferric oxide and surfactant.
This separator can also be used in industrial and petroleum, besides in ship vessels. The effluent oil content
can meet any standards of Environment Bureau in China.
2. Main Parameters
(1) Capacity: From 0.25m3/h to 5m3/h
(2) Oil content in the effluent water ≤ 15 ppm
(3) Meet the standard of IMO MEPC. 107(49)
(4) Heating mode: Steam /Electric heating
(5) CCS, EC certification
(6) Applicable ship: Less than 1000 DWT to above 300 KDWT
(7) There are 9 types with different capacities

3.Specification
Type | GRC-0.25 | GRC-0.50 | GRC-1.00 | GRC-1.50 | GRC-2.00 | GRC-2.50 | GRC-3.00 | GRC-4.00 | GRC-5.00 |
Rating/max Capacity (m3/h) | 0.25 | 0.5 | 1 | 1.5 | 2.0 | 2.50 | 3.00 | 4.00 | 5.00 |
Power of pump (kw) | 0.37 | 0.55 | 0.75 | 1.10 | 1.10 | 1.50 | 1.50 | 2.20 | 2.20 |
Electric Heater Power (kw) | 3 | 3 | option | option | option | option | option | option | option |
Steam Heater (m2/kw) | --- | --- | 1.0/30 | 1/45 | 2/60 | 2/75 | 3/90 | 4/120 | 5/150 |
15ppm Bilge Alarm | included | included | included | included | included | included | included | included | included |
Base (channel steel) (mm) | #5 | #6 | #6 | #6 | #8 | #8 | #8 | #8 | #8 |
Height( mm) | 1250 | 1460 | 1600 | 1650 | 1700 | 1900 | 1900 | 1900 | 1900 |
Dry/wet weight (kg) | 300/450 | 600/800 | 800/860 | 1060/1810 | 1260/2260 | 1500/2800 | 1800/3200 | 2100/3900 | 2500/4600 |
Applicable ship vessel | < 1000 DMT | 1000-5000 DMT | 5-10 KDWT | 10-30 KDWT | 30-50 KDWT | 50-100 KDWT | 100-200 KDWT | 100-300 KDWT | 300 KDWT above |
4.Other Related Equipment
1) MBR Sewage Treatment Plant
2) Biochemical Sewage Treatment Plant
3) Marine Black and Gray Water Treatment and Water Recovery System
4) Marine Sewage Comminuting and Disinfecting Holding Tank
5) Oil Water Separator
6) UV Sterilizer
Please contact us talk about details if you are interested in Oil Water Separator or other items. Thanks
