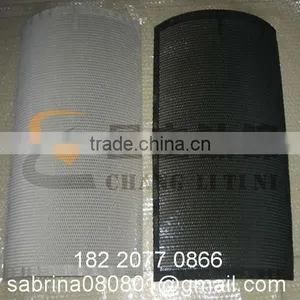

Titanium Anode for Plating

Name: Titanium Anode for Plating
Brand: CLTN
SKU: 125416375
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shaanxi, China

Brand Name:

CLTN

Model Number:

CLTN1002

Baoji Changli Special Metal Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shaanxi, China

Brand Name CLTN

Model Number CLTN1002

Specifications

Titanium anode for plating
Base material: Gr1 pure titanium
Standard: ASTM B265
Application: metal plating, water treatment

Titanium anode for plating
Material	Base metal: Gr1 titanium, ASTM B265 Coating: mixed precious metal oxide (MMO) as coating
Technology	Sand blasting, acid washing, brush coating and sintering
Dimension & Shape	Different dimension and shape are available, process according to customized design/ drawing
Working Parameter	Current density≤2000A/M2 Temperature<60°C Max content of Fluoride ion is 200PPM
Electrolyte	H2SO4 or HNO3,Neutral
Features	Insoluble anode, Stable dimension, Stable distance of the anode & cathode, Stable cell voltage Low working voltage, save power High purity of the electroposited material No pollution of the cell Light weight The titanium material is recyclable High property of current efficiency & catalysis Long working life
Applications	Electrowinning for Cu, Zn,Ni,Co,Mn,Pd,Cr,Ag,Au,Rh etc
Packing	Plastic or paper as inside,plywood case or carton as outside,or according to client's demand
MOQ	Flexible,customized sample order is acceptable
