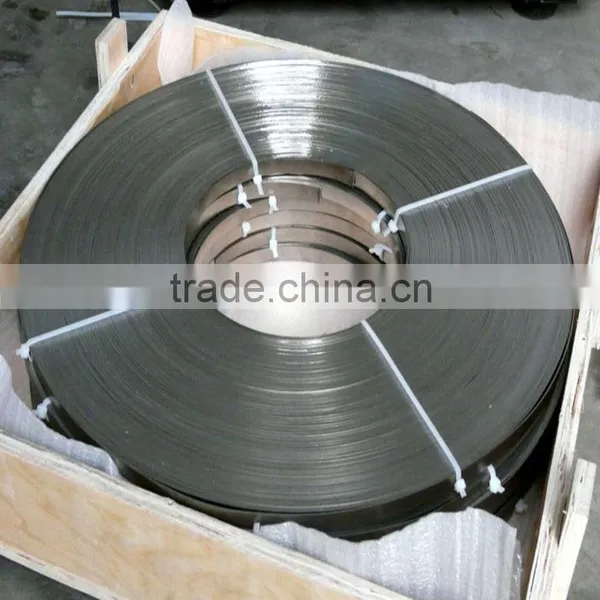

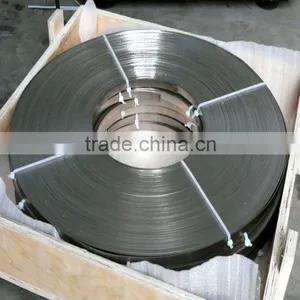

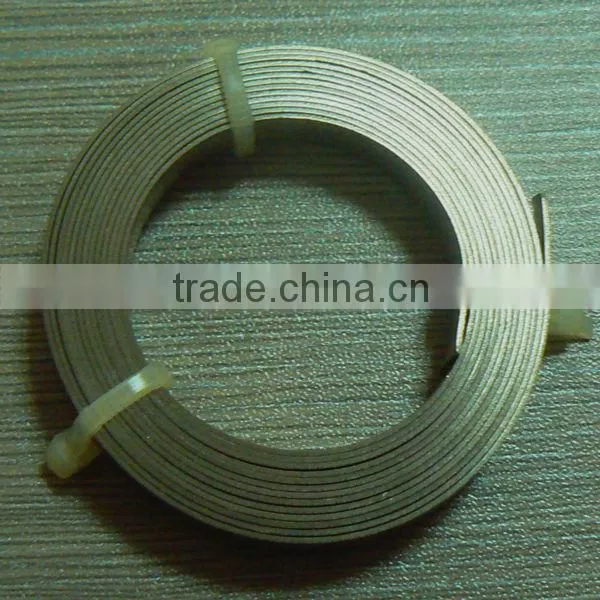

Titanium mesh ribbon

Item name

MMO ribbon anodes

Base metal

Titanium Gr1, ASTM B265

Nominal dimensions

6.35*0.635 mm

Standard coil length

76.22 m

Standard coil weight

1.12 kgs

Surface area of ribbon

0.014 m²/m

Environment

(anode maximum operating current density)

Current output

Design life

In fine sand (current density of 3 A/m²)

42 mA/m

50 years

In concrete (current density of 0.11 A/m²)

1.5 mA/m

100 years

Item name

Titanium conductor bar

Nominal dimensions

12.7*0.9 mm

Standard coil length

76.22 m

Weight

3.8 kgs
