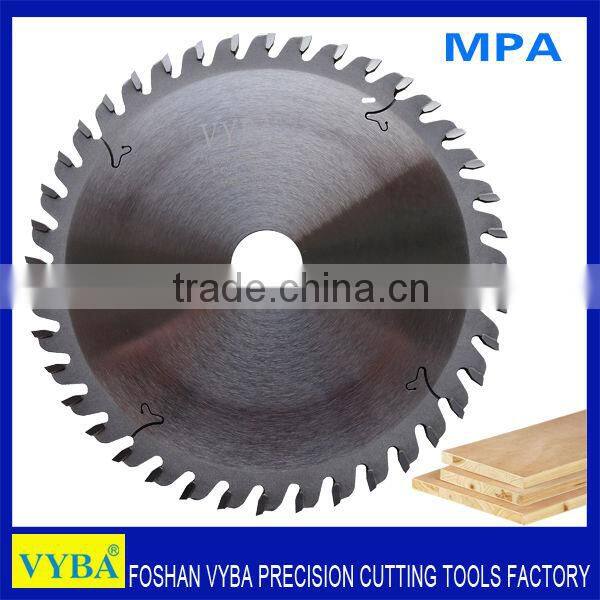

Twin Scoring TCT Circular Saw Blade
US$ 10 - 20
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
VYBA
Model Number:
Grooving
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot-selling TCT Circular Saw Blade,TCT Saw Blade for Wood Cutting,TCT Circular Saw Blade Industrial Grade,75Cr1/65MnUS$ 1 - 100MOQ: 10 Pieces -
Good Quality Panel Sizing Saw BladeUS$ 1 - 30MOQ: 10 Pieces
-
Customer Requried Size High Quality TCT Circular Saw Blade Cutter for Panel SizingUS$ 10 - 30MOQ: 10 Pieces
-
VYBA on Popular Industrial Grade 75Cr1 Steel Saw Blade CompanyUS$ 30 - 32MOQ: 10 Pieces
-
Universal Industrial Grade Tungsten Carbide Tip Cutting Universal Industrial Grade Tungsten Carbide Tip Cutting Blade WholesaleUS$ 30 - 32MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
VYBA
Model Number
Grooving
Type
Saw Blade
Blade Material
Tungsten Carbide Steel
Finishing
Other
Size
4"
circular saw blade,circular saw blade(scoring),TCT saw blade,TCT saw blade for wood cutting,industrial quality,75Cr1/65Mn steel body,CERATIZIT carbide tip,shaped in cone and equipped with ATB tooth,for wood cutting,conical scoring saw blade,imported material,processed by automatic CNC machine.

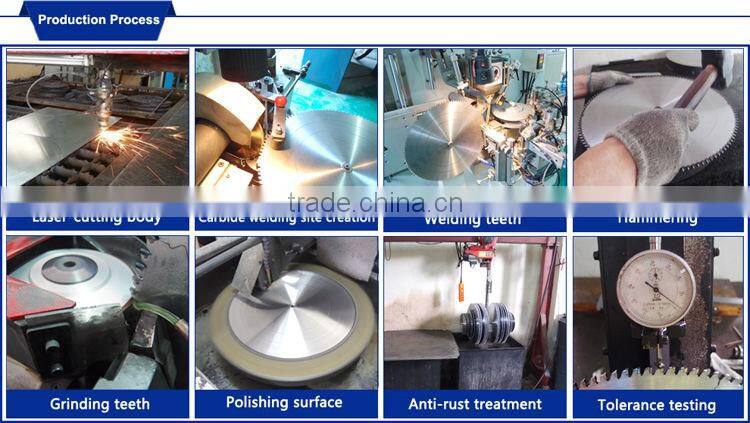

- Imported tip and blank steel,welded and ground by automatic CNC machine.With small vertical and flat jump.Vertical jump less than +/-0.02mm,flap jump less than +/-0.01mm.

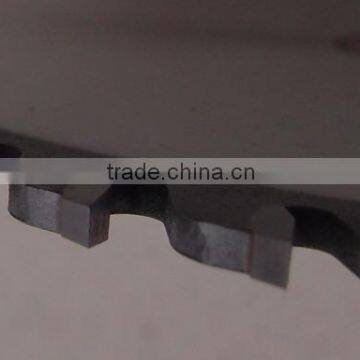

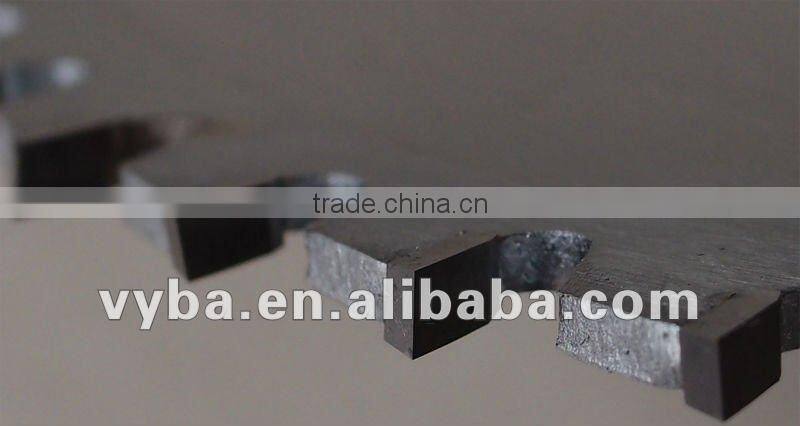

- This blade is shaped in cone and equipped with the left/right bevel sawtooth,and the prescring width can be adjusted by raising or lowering its principal axis.
- It is exclusively applied to the cutting of various double-face veneered medium-density fibreboard.
- The cracking and rough edge of the veneered can be avoided.
- It is applicable to the computer controlled tandem slitter.
Use: cutting various of double-face veneered medium-density fibreboard so as to avoid the cracking and rough edge of the veneering.
| Out diameter(ΦD) | Tooth width(B)mm | Tooth thickness(Φb)mm | Inner diameter(d)mm | Number of Teeth(Z) | Cutting Angle(a°) | Positioning hole(NI) | Use(U) |
| 125 | 4.3-5.3 | 3.0 | 20/45 | 24 | 5 |
Use in the cutting of various double-face veneered medium-density fibreboard, avoid the cracking and rough edge of the veneering. |
|
| 125 | 4.6-5.6 | 3.0 | 20/45 | 24 | 5 | ||
| 150 | 4.3-5.3 | 3.0 | 25.4/45 | 36 | 10 | ||
| 150 | 4.3-5.3 | 3.0 | 25.4/45 | 40 | 10 | ||
| 150 | 4.6-5.6 | 3.0 | 25.4/45 | 36 | 10 | ||
| 150 | 4.6-5.6 | 3.0 | 25.4/45 | 40 | 10 | ||
| 160 | 4.3-5.3 | 3.0 | 45 | 36 | 10 | 3/11/70 | |
| 160 | 4.3-5.3 | 3.0 | 55 | 36 | 10 | 3/7/66 | |
| 160 | 4.3-5.3 | 3.0 | 60 | 36 | 10 | 3/7/80 | |
| 160 | 4.3-5.3 | 3.0 | 45/60 | 40 | 10 | ||
| 160 | 4.6-5.6 | 3.0 | 45/55 | 36 | 10 | 3/9/72+3/7/66 | |
| 180 | 4.3-5.3 | 3.0 | 30/50 | 36 | 10 | (Φ50hole 3/15/80) | |
| 180 | 4.3-5.3 | 3.0 | 30/50 | 40 | 10 | (Φ50hole 3/15/80) | |
| 180 | 4.6-5.6 | 3.0 | 45/55 | 36 | 10 | ||
| 200 | 4.3-5.3 | 3.0 | 20/22 | 36 | 10 | ||
| 200 | 4.3-5.3 | 3.0 | 30/45 | 36 | 10 | ||
| 200 | 4.3-5.3 | 3.0 | 20/80 | 40 | 10 | ||
| 200 | 4.6-5.6 | 3.0 | 20/65 | 36 | 10 | (Φ65hole 2/9/110) | |
| 300 | 4.3-5.3 | 3.0 | 25.4/50 | 48 | 12 | (Φ50hole 3/15/80) | |
| 300 | 4.3-5.3 | 3.0 | 65/80 | 60 | 12 | (Φ65hole 2/9/110) | |
| 300 | 4.3-5.3 | 3.0 | 65/80 | 72 | 12 | (Φ65hole 2/9/110) |
We can also manufacture the special specification of TCT saw blade according to your need.
