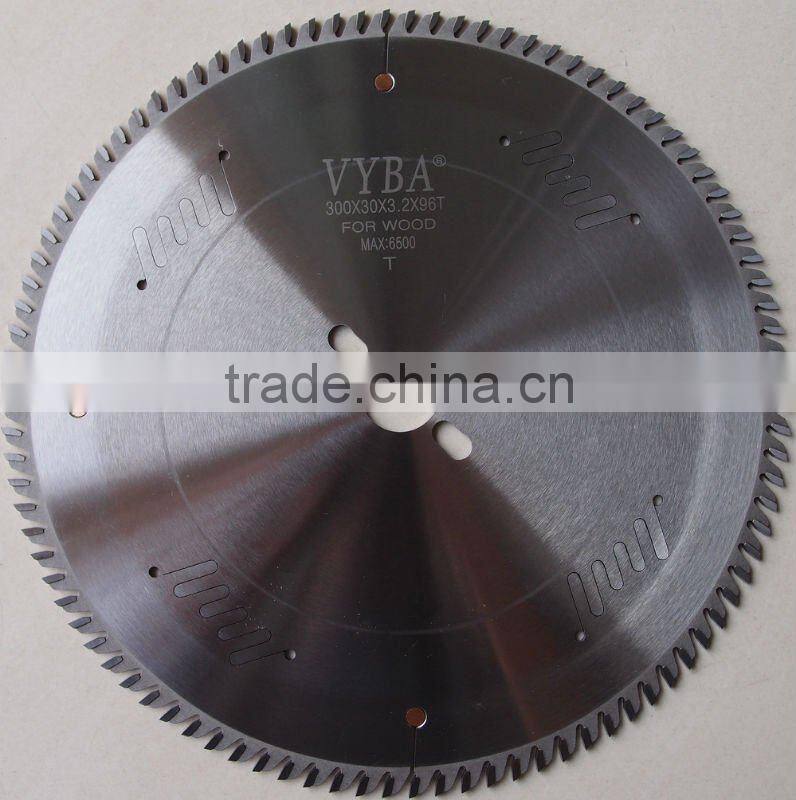

circular saw blade,TCT circular saw blade,saw blade,75Cr1 steel body,with CERATIZIT carbide tip welded on,automatic CNC machine,ATB sawtooth type,good for wood cutting.
The saw blade is applied to the computer controlled tandem slitter.Supported by the cone-shaped sub-saw,it can cut various sheet materials,with its processing thickness at more than 100mm,with excellent cutting surface&durability.
left/right bevel for solid wood cutting.

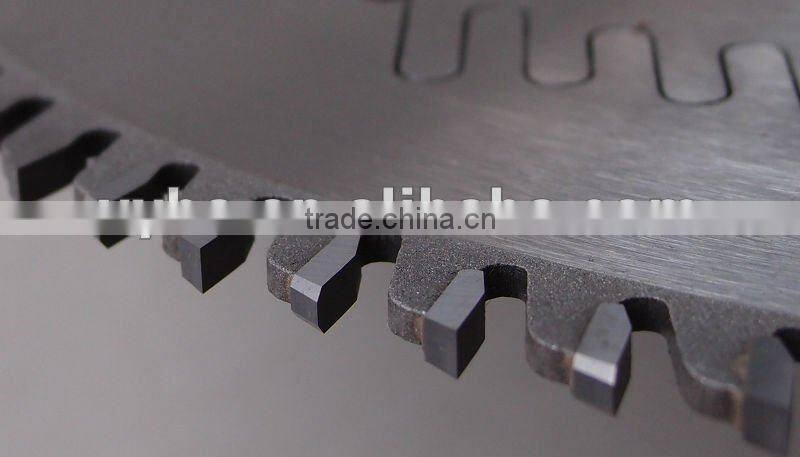

trapezoidal with flat saw tooth,for MDF,HDF,laminate,melamine with double-veneered face
The most comman sizes are 300*96T and 300*72T.
Advantages:
1.Material:steel body in 75Cr1 imported from Japan,tip CERATIZIT/K01/Taiwanese/Top quality made-in-China.
A.Steel body,laser-cutting,heat treatment to add strength.
B.Hand hammered to make run-out to minimum.
C.Dynamic balancing and straightness:To diminish the saw blade "run-out" and vibration enhancing the accuracy.
2.Automatic welding and grinding machine.
3.Sandwich soldering flake.
4.Saw blade can be re-sharpen repeatedly.
5.Customized size is also available.Any size can be produced as customer required.
6.Quality grade:industrial,semi-industrial,professional quality
Pls refer the common sizes as below.
| Out diameter(ΦD) | Tooth width(B)mm | Tooth thickness(Φb)mm | Inner diameter(d)mm | Number of Teeth(Z) | Cutting Angle(a°) | Tooth type(C) |
| 200 | 3.2 | 2.2 | 30 | 64 | 10 | Trapezoidal flat |
| 250 | 3.2 | 2.2 | 30 | 80 | 10 | |
| 300 | 3.2 | 2.2 | 30 | 72 | 10 | |
| 300 | 3.2 | 2.2 | 30 | 96 | 10 | |
| 350 | 3.5 | 2.5 | 30 | 84 | 12 | |
| 350 | 3.5 | 2.5 | 30 | 96 | 12 | |
| 350 | 3.5 | 2.5 | 30 | 108 | 12 | |
| 400 | 3.5 | 2.5 | 30 | 96 | 15 | |
| 400 | 3.5 | 2.5 | 30 | 120 | 15 |
