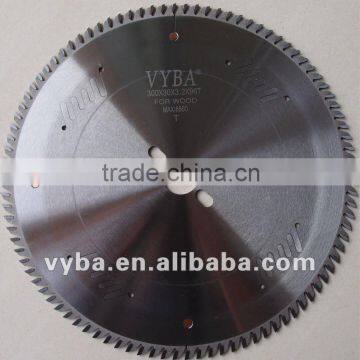

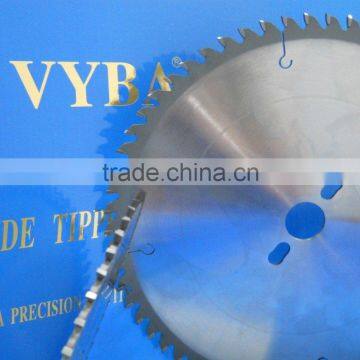

universal industrial grade tungsten carbide tip cutting blade wholesale ,circular saw blade panel sizing,TCT saw blade panel sizing,ATB or TCG saw tooth,300*96T is most popular.
With teeth of left and right bevel type,the saw blade is applied to the computer controlled tandem slitter.Supported by the cone-shaped sub-saw,it can cut various sheet materials,with its processing thickness at more than 100mm,with excellent cutting surface&durability.

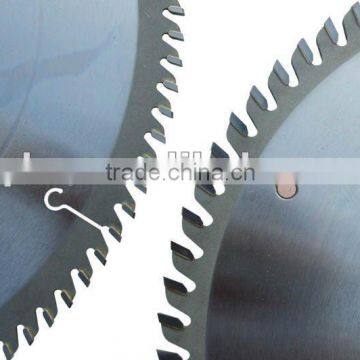

Left/right bevel--ATB saw tooth:for solid wood cutting.
Trapezoidal with flat tooth--TCG saw tooth:for MDF,HDF,laminate,melamine board with double-veneered face.
The most comman size:300*96T and 300*72T
Advantages:
1.Material:steel body in 75Cr1 imported from Japan,tip CERATIZIT/K01/Taiwanese/Top quality made-in-China.
A.Steel body,laser-cutting,heat treatment to add strength.
B.Hand hammered to make run-out to minimum.
C.Dynamic balancing and straightness:To diminish the saw blade "run-out" and vibration enhancing the accuracy.
2.Automatic welding and grinding machine.
3.Sandwich soldering flake.
4.Saw blade can be re-sharpen repeatedly.
5.Customized size is also available.Any size can be produced as customer required.
Pls refer the common sizes as below.
| Out diameter(ΦD) | Tooth width(B)mm | Tooth thickness(Φb)mm | Inner diameter(d)mm | Number of Teeth(Z) | Cutting Angle(a°) | Tooth type(C) |
| 200 | 3.2 | 2.2 | 30 | 64 | 10 | Trapezoidal flat |
| 250 | 3.2 | 2.2 | 30 | 80 | 10 | |
| 300 | 3.2 | 2.2 | 30 | 72 | 10 | |
| 300 | 3.2 | 2.2 | 30 | 96 | 10 | |
| 350 | 3.5 | 2.5 | 30 | 84 | 12 | |
| 350 | 3.5 | 2.5 | 30 | 96 | 12 | |
| 350 | 3.5 | 2.5 | 30 | 108 | 12 | |
| 400 | 3.5 | 2.5 | 30 | 96 | 15 | |
| 400 | 3.5 | 2.5 | 30 | 120 | 15 |
.
