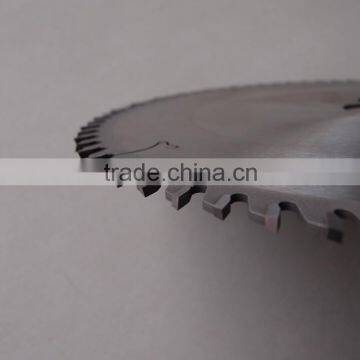

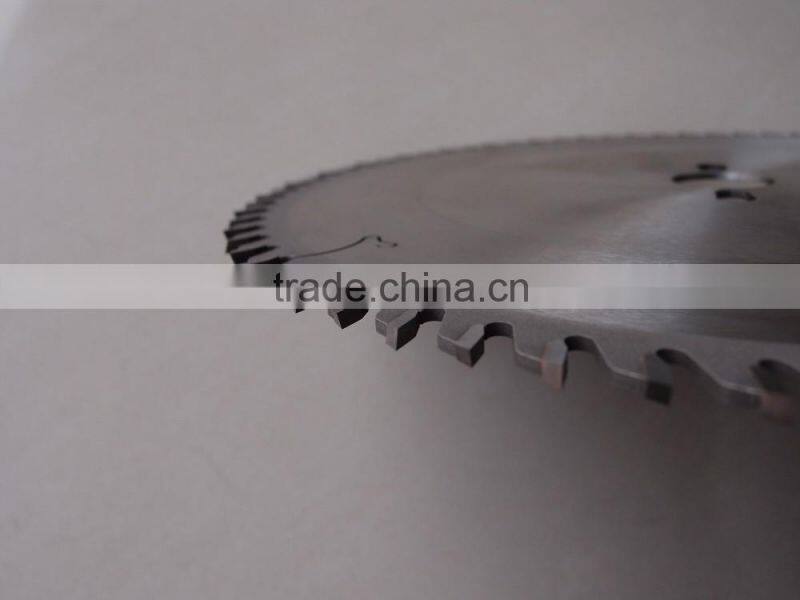

TCT circular saw blade(panel sizing),panel sizing circular saw blade,panel sizing saw blade,with left/right bevel saw teeth,or trapezoidal with flat saw tooth.
The saw blade is applied to the computer controlled tandem slitter.Supported by the cone-shaped sub-saw,it can cut various sheet materials,with its processing thickness at more than 100mm,with excellent cutting surface&durability.
left/right bevel for solid wood cutting.
trapezoidal with flat saw tooth,for MDF,HDF,laminate,melamine with double-veneered face
The most comman sizes are 300*96T and 300*72T.
Advantages:
1.Material:steel body in 75Cr1 imported from Japan,tip CERATIZIT/K01/Taiwanese/Top quality made-in-China.
A.Steel body,laser-cutting,heat treatment to add strength.
B.Hand hammered to make run-out to minimum.
C.Dynamic balancing and straightness:To diminish the saw blade "run-out" and vibration enhancing the accuracy.

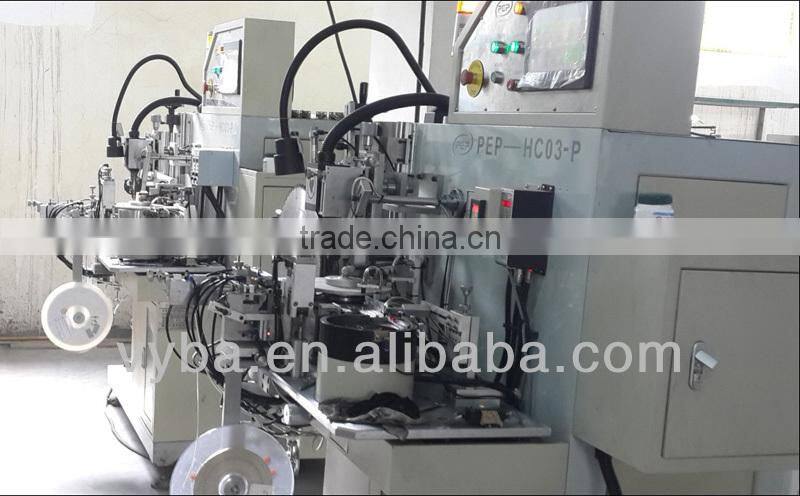

2.Automatic welding and grinding machine.
3.Sandwich soldering flake.
4.Saw blade can be re-sharpen repeatedly.
5.Customized size is also available.Any size can be produced as customer required.
6.Quality grade:industrial,semi-industrial,professional quality
Pls refer the common sizes as below.
| Out diameter(ΦD) | Tooth width(B)mm | Tooth thickness(Φb)mm | Inner diameter(d)mm | Number of Teeth(Z) | Cutting Angle(a°) | Tooth type(C) |
| 200 | 3.2 | 2.2 | 30 | 64 | 10 | Trapezoidal flat |
| 250 | 3.2 | 2.2 | 30 | 80 | 10 | |
| 300 | 3.2 | 2.2 | 30 | 72 | 10 | |
| 300 | 3.2 | 2.2 | 30 | 96 | 10 | |
| 350 | 3.5 | 2.5 | 30 | 84 | 12 | |
| 350 | 3.5 | 2.5 | 30 | 96 | 12 | |
| 350 | 3.5 | 2.5 | 30 | 108 | 12 | |
| 400 | 3.5 | 2.5 | 30 | 96 | 15 | |
| 400 | 3.5 | 2.5 | 30 | 120 | 15 |
