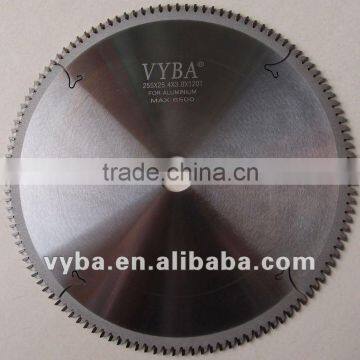

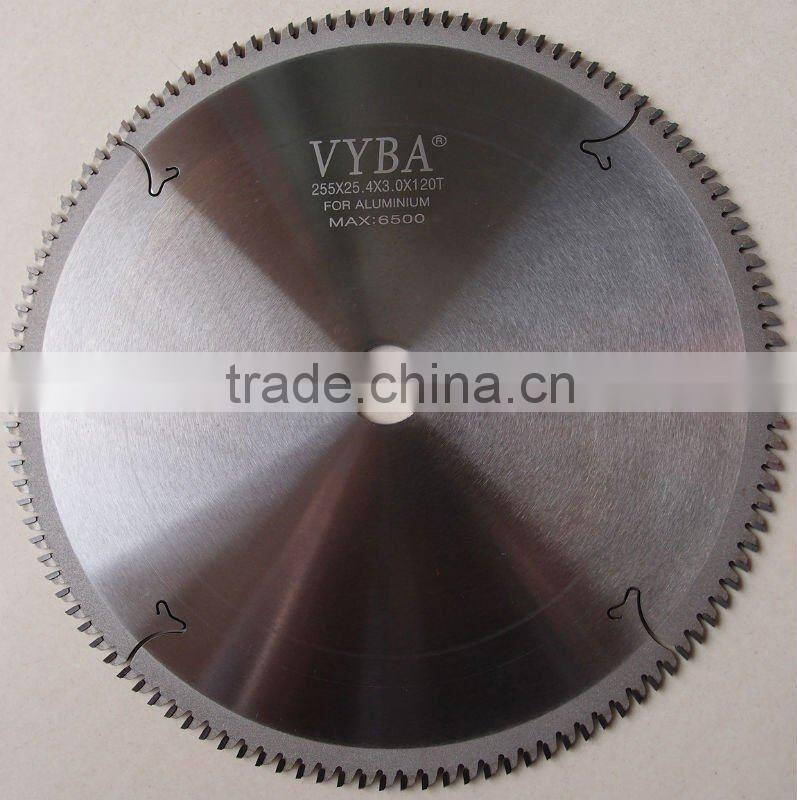

TCT cutting saw blade for aluminium,TCT circular saw blade,TCT saw blade,TCG sawtooth,specially for aluminium,alu alloy

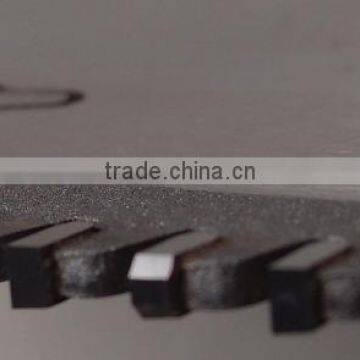

The trapezoidal saw tooth with flat tooth is applied to such saw blade for cutting of stainless steel and aluminium alloy.The body is treated in special heat treatment,and the tip angle is designed for metal cutting.The processed materials have to be fixed mechanically for such processing.
Advantages:
1.CNC grinding and welding machines are automatic ones.
2.Material: steel body in 75Cr1 and 65Mn;Carbide tip in Luxemburg,CERATIZIT,Taiwanese,top quality made in China.
3.UMICORE soldering paste and WILKE soldering flake.
4.Customized size is available.Any size can be provided as customer required.
Pls kindly refer the comman sizes as below.
| Out diameter(ΦD) | Tooth width(B)mm | Tooth thickness(Φb)mm | Inner diameter(d)mm | Number of Teeth(Z) | Tooth type(C) |
| 205 | 2.0 | 1.4 | 25.4 | 80 | TCG |
| 205 | 2.8 | 2.2 | 25.4 | 80 | |
| 205 | 2.0 | 1.4 | 25.4 | 100 | |
| 205 | 2.8 | 2.2 | 25.4 | 100 | |
| 250 | 3.0 | 2.4 | 25.4 | 80 | |
| 250 | 2.6 | 2.0 | 25.4 | 100 | |
| 250 | 3.0 | 2.4 | 25.4 | 100 | |
| 250 | 2.6 | 2.0 | 25.4 | 120 | |
| 250 | 3.0 | 2.4 | 25.4 | 120 | |
| 300 | 2.6 | 2.0 | 25.4 | 100 | |
| 300 | 3.0 | 2.4 | 25.4 | 100 | |
| 350 | 3.0 | 2.4 | 25.4 | 100 | |
| 350 | 3.6 | 3.0 | 25.4 | 100 | |
| 400 | 3.0 | 2.4 | 25.4 | 100 | |
| 400 | 3.6 | 3.0 | 25.4 | 100 | |
| 400 | 3.0 | 2.4 | 25.4 | 120 | |
| 400 | 3.6 | 3.0 | 25.4 | 120 | |
| 450 | 3.6 | 3.0 | 25.4 | 120 | |
| 450 | 4.0 | 3.4 | 25.4 | 120 | |
| 500 | 4.6 | 4.0 | 25.4 | 100 | |
| 500 | 4.6 | 4.0 | 25.4 | 120 |
