Specifications
1.achieving the semi-automatical compact pallet storage2."FIFI"and"LIFO" sequence
3.using together with relevent rack system

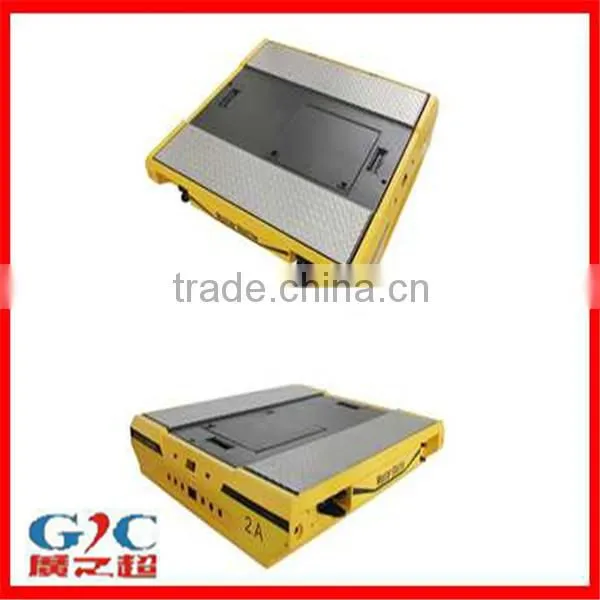

Electric Rail Guided Vehicle for Warehouse Storage
The rail guided vehicles compact rack system achieves the semi-automatical compact pallet storage, by this combination with the channel racks and rail guided vechiles. According to the locations of in or out entrances, the RGV coud be sorted two kinds of model, first in first out and last in first out.It is the best solution for high density pallet storage systems.

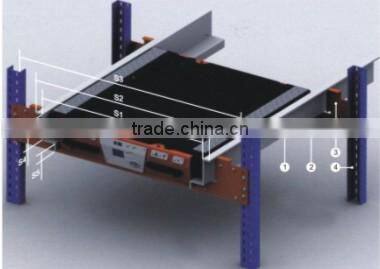

1.rail
2.crossbeam
3.inner rail support
4.post
5.inner width of rails: s1=983mm
6.outer width of rails:s2=1093mm
7.inner width of posts:s3=W+146mm (w=the width of pallet, w=1200-1250mm)
8.height of rail:s4=163mm
9.gap of rail: s5=51mm
Main Data Sheet of RGV
| Item | The Specification |
Equipment Model RGV-500 RGV-1000 RGV-1500 |
| 1. | suitable pallets | |
| 1.1 | standard pallet:W*Dmm | 1200*1000 |
| 1.2 | available pallet:W*Dmm | w1100-1250, D 800-1100 |
| 1.3 | styles of pallet bottom | 'chuan"type or "tian" type |
| 1.4 | material of pallet | wood, plastic, steel |
| 1.5 | deflection of pallet | max 20mm |
| 2. | total weight of loading | max 500kg max 1000kg max 1500kg |
| 3. | model of running | inside the two rails |
| 4. | data of running | |
| 4.1 | running without loading | 1.1m/s |
| 4.2 | running with full loading | 0.9m/s 0.7m/s 0.5m/s |
| 5. | data of lifting | |
| 5.1 | time of single lift | 1.1s 1.3s 1.5s |
| 5.2 | distance of lift | 22mm |
| 5.3 | lift height from rail | 13mm |
| 6. | size of equipment | |
| 6.1 | outside dimensionsL*W*Hmm | 1100*977*198 |
| 6.2 | total weight of equipment | 242kg 248kg 260kg |
| 6.3 | plate size of equipment | L960*W85*T3mm, 2Pcs |
| 6.4 | inner width of two forks | 230mm |
| 6.5 | width of single forks | 236mm |
| 7. | driver motor for running | Lenze 24v 200w |
| 8. | wheels of running | 120mm Vulkollan |
| 9. | driver motor for lifting | Lenze 24v 370w |
| 10. | battery packs capacity | BYD 2set 24v 30AH |
| 11. | weight of battery packs | 2 set *11kg |
| 12. | number of charge-discharge | 900 times |
| 13. | discharging time | about 5 hours |
| 14. | methods o remote control | radio frequence 433MHz, 3.7V 1500m Ah |
| 15. | remote controller | handheld remote controller |
| 16. | model of control | handling / automatic model |
| 17. | temperature of warehouse | -18-40°c(normal)/-30_-18°c(cryogenic) |
| 18. | programmable logic controller | Siemens PLC |
| 19. | voltage of controller loop | DC24V |
| 20. | noise peak of running | <70DB |

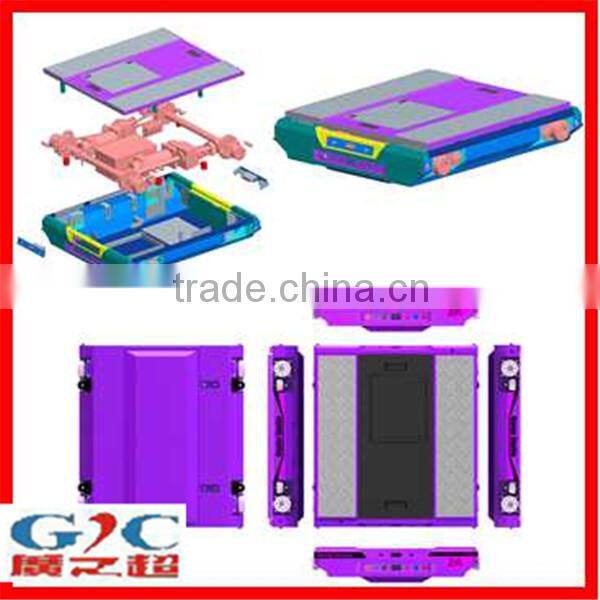

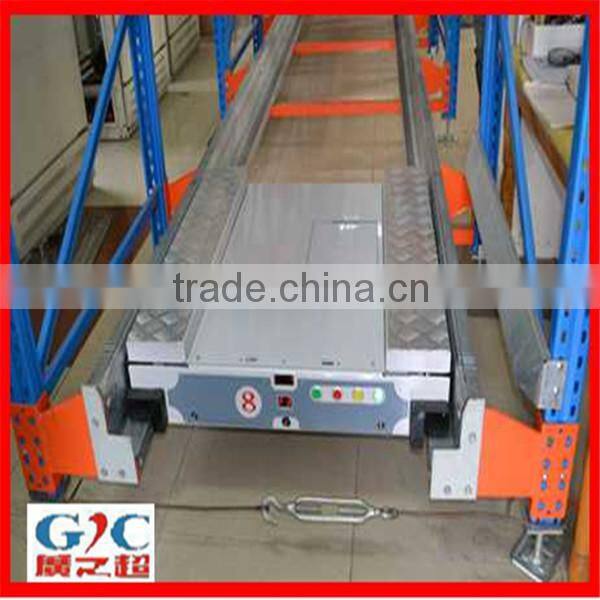

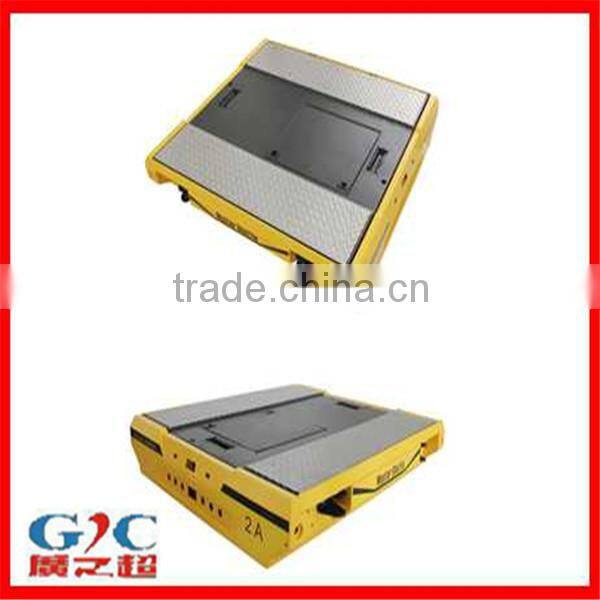

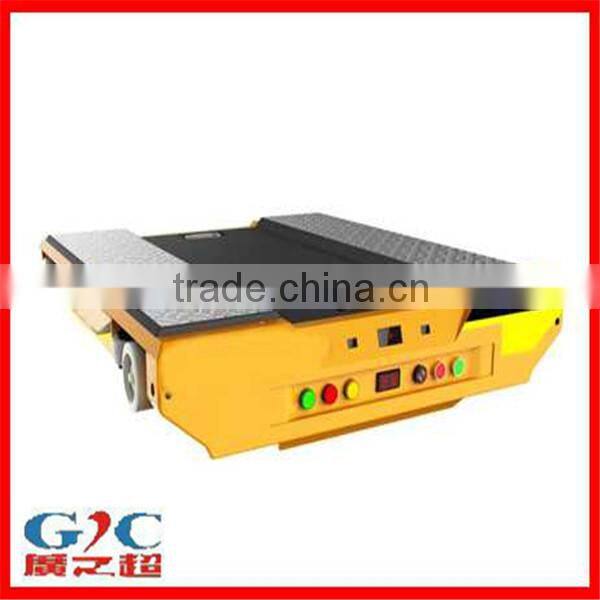

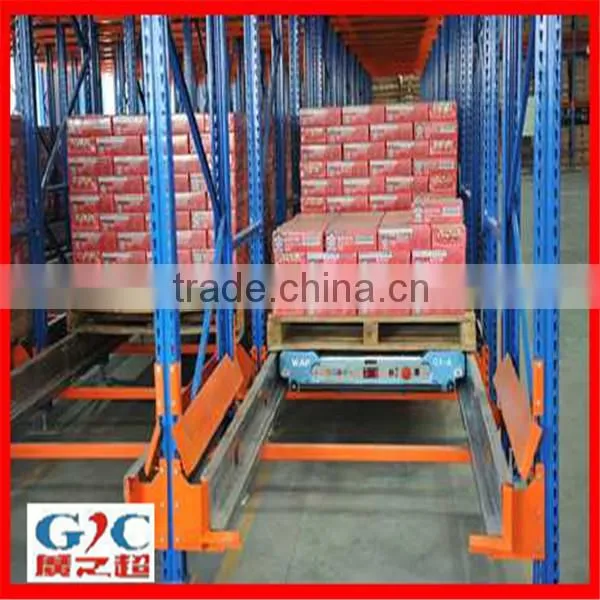

Product Showcase:
Usage:

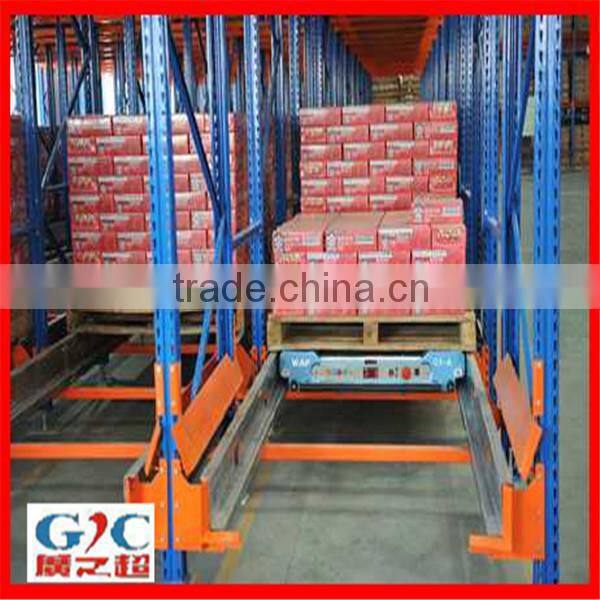

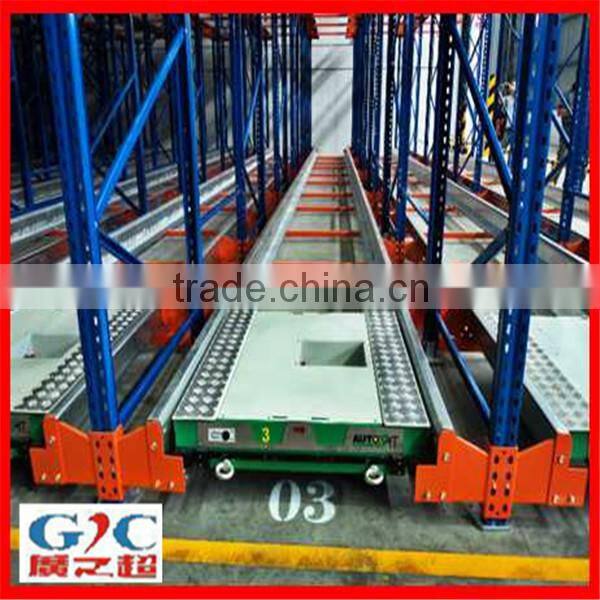

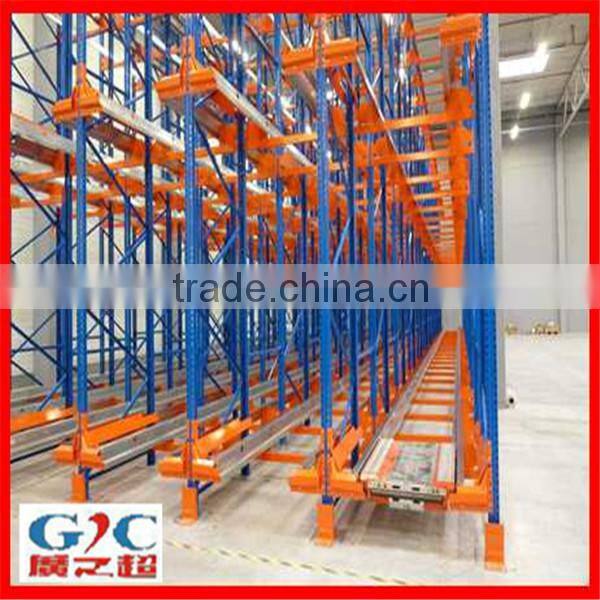

It is used together with matched racking system, road rail of which is specially designed so as to ensure the safety. Matched racking systems are as follows:
Producing Period:
about 42 workdays
The first stage: appearance design ---------15 days
The second stage: structure design---------15 days
The third stage:sample producing-----------12 days
