Specifications
1.efficient load and unload system2.less time is required to unload pallets
3.less damage to racking system
Industrial Electric Radio Shuttle

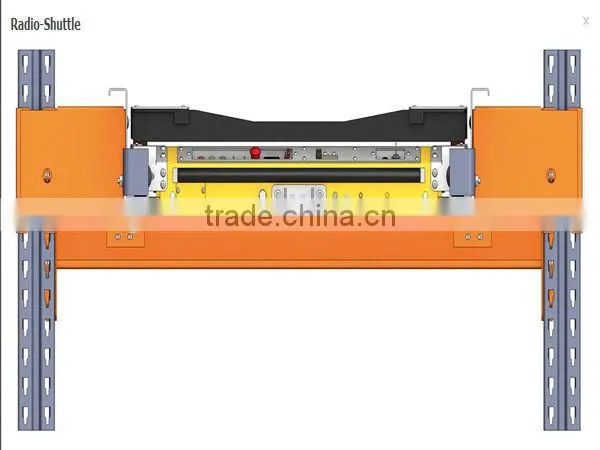

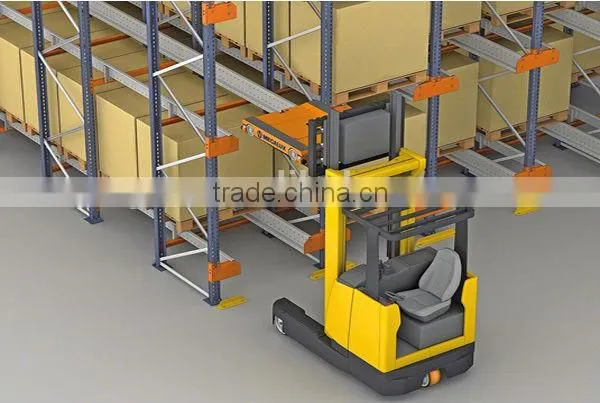

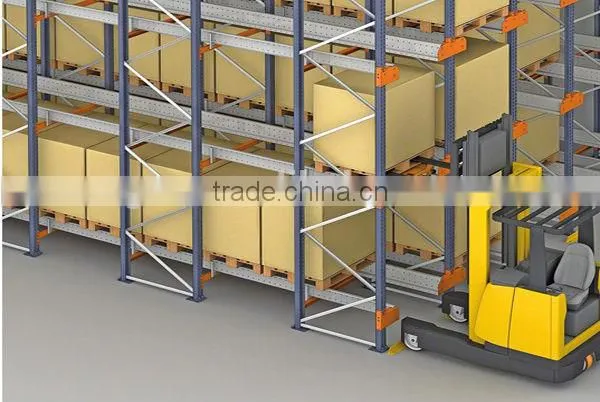

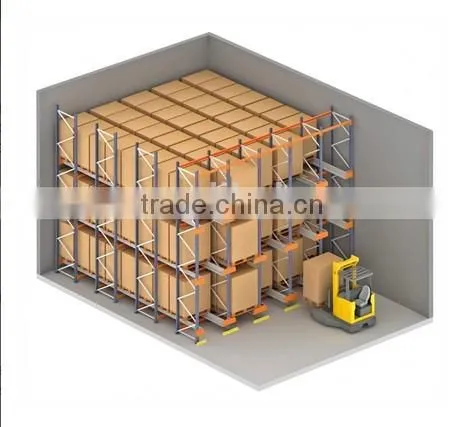

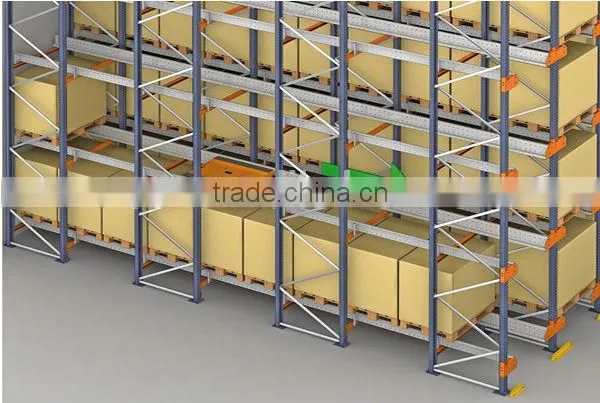

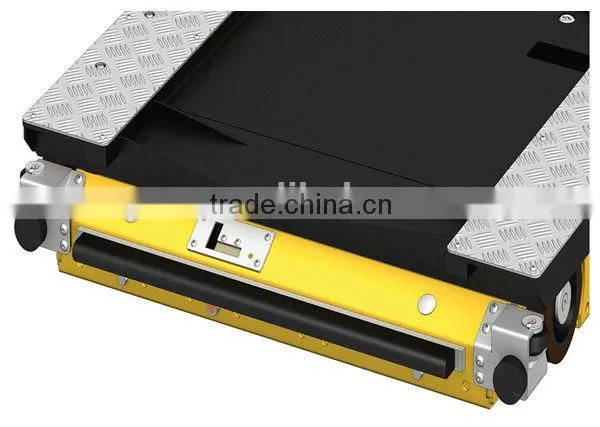

This is a high-density pallet storage system making it easier to load and unload goods thanks to an electric carriage called a Radio-Shuttle. The system uses shuttles to move independently within the rack itself, meaning forklifts are not needed to reach inside the storage lanes.

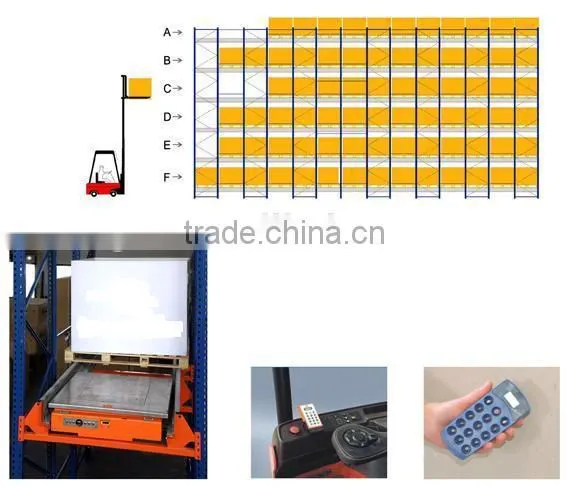

The operator performs all the procedures for storing and extracting pallets simply by using a remote control.
1.rail
2.crossbeam
3.inner rail support
4.post
5.inner width of rails: s1=983mm
6.outer width of rails:s2=1093mm
7.inner width of posts:s3=W+146mm (w=the width of pallet, w=1200-1250mm)
8.height of rail:s4=163mm
9.gap of rail: s5=51mm

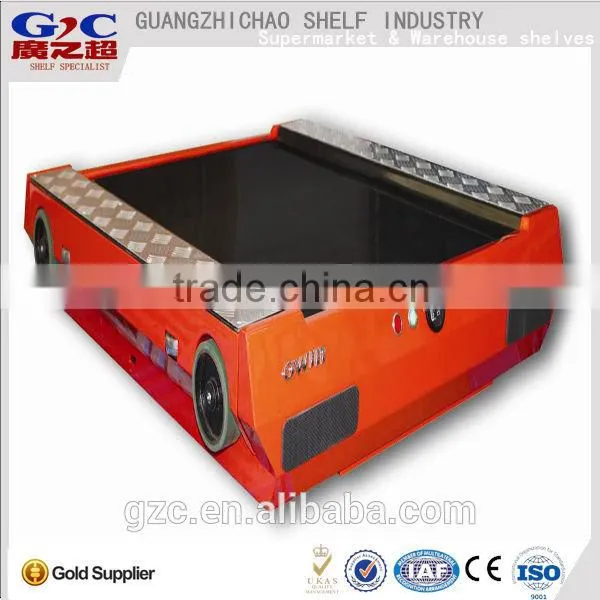

Main Data Sheet of RGV
| Item | The Specification |
Equipment Model RGV-500 RGV-1000 RGV-1500 |
| 1. | suitable pallets | |
| 1.1 | standard pallet:W*Dmm | 1200*1000 |
| 1.2 | available pallet:W*Dmm | w1100-1250, D 800-1100 |
| 1.3 | styles of pallet bottom | 'chuan"type or "tian" type |
| 1.4 | material of pallet | wood, plastic, steel |
| 1.5 | deflection of pallet | max 20mm |
| 2. | total weight of loading | max 500kg max 1000kg max 1500kg |
| 3. | model of running | inside the two rails |
| 4. | data of running | |
| 4.1 | running without loading | 1.1m/s |
| 4.2 | running with full loading | 0.9m/s 0.7m/s 0.5m/s |
| 5. | data of lifting | |
| 5.1 | time of single lift | 1.1s 1.3s 1.5s |
| 5.2 | distance of lift | 22mm |
| 5.3 | lift height from rail | 13mm |
| 6. | size of equipment | |
| 6.1 | outside dimensionsL*W*Hmm | 1100*977*198 |
| 6.2 | total weight of equipment | 242kg 248kg 260kg |
| 6.3 | plate size of equipment | L960*W85*T3mm, 2Pcs |
| 6.4 | inner width of two forks | 230mm |
| 6.5 | width of single forks | 236mm |
| 7. | driver motor for running | Lenze 24v 200w |
| 8. | wheels of running | 120mm Vulkollan |
| 9. | driver motor for lifting | Lenze 24v 370w |
| 10. | battery packs capacity | BYD 2set 24v 30AH |
| 11. | weight of battery packs | 2 set *11kg |
| 12. | number of charge-discharge | 900 times |
| 13. | discharging time | about 5 hours |
| 14. | methods o remote control | radio frequence 433MHz, 3.7V 1500m Ah |
| 15. | remote controller | handheld remote controller |
| 16. | model of control | handling / automatic model |
| 17. | temperature of warehouse | -18-40°c(normal)/-30_-18°c(cryogenic) |
| 18. | programmable logic controller | Siemens PLC |
| 19. | voltage of controller loop | DC24V |
| 20. | noise peak of running | <70DB |
Standard Configuration:
1. lithium battery :2
2. charge cabinet: 1
3. handing remote controller: 1
4. wooden packing box: 2
5. user guide: 1 set
Advantages:
- It permits the storage of different reference numbers per module.
- Efficient load and unload system, which ensures high accuracy.
- Less time is required to unload pallets.
- Less damage to the racking units as the forklift does not enter the racking unit.
- Higher production since the flow of incoming and outgoing good increases.
- Compatible with different pallet sizes.
- Ideal for storage at low temperature.
Producing Period:
at least 42 workdays
The first stage: appearance design ---------15 days
The second stage: structure design---------15 days
The third stage:sample producing-----------12 days
Product Showcase:
Shenzhen Guangzhichao Shelf Industry Development Co., Ltd was established in 1988 with a site area of over 68,000 m2 . We are specialized in designing, manufacturing, installation of warehouse racking and enjoy high reputation both home and abroad. Fifty percent of our products are exported to Europe, America, Southeast Asia and Middle East etc. Our customers vary from large supermarkets,logistics, factories to distributing centers.
List of our customers: SONY, Panasonic, LG, Ford,SIEMENS,NISSAN and so on.
Certificates:
