Help CenterZmodo 4CH DVR IR Outdoor CCTV Camera Kit
Related Products
-
Zmodo 4CH Full D1 DVR 600TVL Camera KitNegotiableMOQ: 50 Sets -
Zmodo 8CH DVR Outdoor Sony Camera House Security SystemNegotiableMOQ: 50 Sets
-
Zmodo Outdoor Camera 4 Channel DVR SystemNegotiableMOQ: 50 Sets
-
Zmodo 4CH DVR Outdoor Dome CCD Camera Security SystemNegotiableMOQ: 50 Sets
-
Zmodo H.264 8CH DVR IR Outdoor Camera CCTV System KitNegotiableMOQ: 50 Sets
Specifications
* H.264* Up to 30ft IR
* Full D1 Dispaly
* Weatherproof
* One Year Warranty

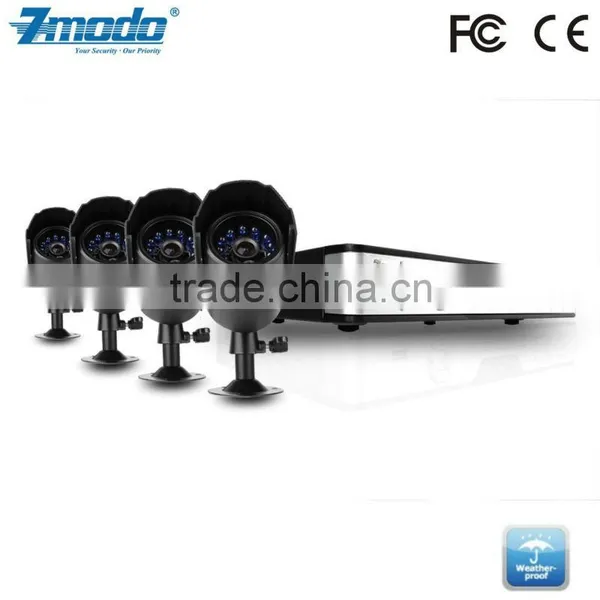

4CH H.264 Full D1 DVR Security System with Four Indoor/Outdoor Night Vision Best Outdoor Cameras
The 4 channel DVR System delivers everything you need to defend your home or business, safeguard your loved ones and deter intruders. This DVR provides you with real-time D1 resolution, the highest resolution available to DVRs! It allows you to have peace of mind at your home or business whenever and wherever you are. It provides the basic surveillance function at an affordable price for your security surveillance needs.
24/7 Scheduled Recording
Choose which days of the week and hours of the day you want set your DVR to record, or not record. Each individual camera can even have a personalized weekly schedule.

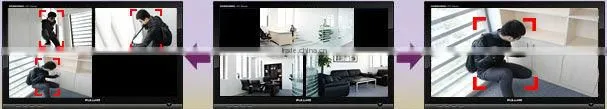

Advanced Motion Detection Recording
The motion detection option allows you record only when motion is detected so that you save hard drive space without missing important events. You can even ensure that false alarms are not triggered as the easy motion detection “mask” allows you to block out areas with constantly no-changing movement.
Monitor over Internet via PC or Smartphone
This system allows you to view your footage, no matter the time or location. Access your security DVR ’s footage over the internet, or directly from your Android™ , iPhone®, iPad®, Symbian™ , Windows Mobile®.
Instant Email Alerts if Activity Detected
Instantly know if suspicious activity is happening on your property. This Zmodo system is designed to send you an email alert, complete with photo, if any motion is detected on your property.
Included Mouse and Remote
Navigate through the menu with ease using the included USB mouse, the front panel of your DVR or the convenient IR remote control.
Easy USB Backup
Built-in USB port gives you the option of backing up and transferring your video footage with a USB flash drive or external USB hard drive.
Search by Date, Time or Event
Simply choose the desired date and time range, and the requested video clips will appear. Clips are also labeled by event, which makes it easy to find particular footage.
Password Protection
Set a password to prevent unauthorized users from viewing your footage or changing any of your DVR settings.
Weatherproof for Indoor & Outdoor Use
Each camera is built with professional grade metal housing and a sunshade to help prevent glare, deterioration and rusting.
Enhanced Focus
Get closer view of your monitoring areas with 6mm lens. This is beneficial when placing your cameras up high or monitoring areas that are further away. You will get a clean, crisp picture that is focused on what is important.
| Model | ZMD-DD-SBN4 - Full D1 4CH H.264 DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC 4-Channel Input / BNC 1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input / BNC 1-Channel Output |
| Display Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Display Resolution | NTSC: D1 (704 x 480) / PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Recording Pack Time | 15/30/45/60mins Selectable |
| Simplex / Duplex /Triplex / Pentaplex | Pentaplex |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| Playback Mode | Normal Play /Fast Forward /Fast Rewind/ Frame by Frame |
| USB | USB Backup / USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1000mA |
| Dimension | 300mm (W) x 220mm (D) x 47mm (H) |
| Model | ZMD-CBR-BAS16NM(CM-C21606BK)- Color IR Bullet Camera |
| Image Sensor | 1/4" Color CMOS |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V) |
| Horizontal Resolution | 480 TV-Lines |
| Lens | 6mm |
| Number of IR LEDs | 11 LEDs |
| Infrared Illumination (Night Vision) | up to 30ft(10~15m) |
| Minimum Illumination | 0.0 Lux |
| S/N Ratio | 48dB |
| Video Output | 1.0Vp-p, 75ohms |
| Weatherproof | Yes |
| Operating Temperature | -25°F~122°F / -32°C ~50°C |
| Power | 12V DC |

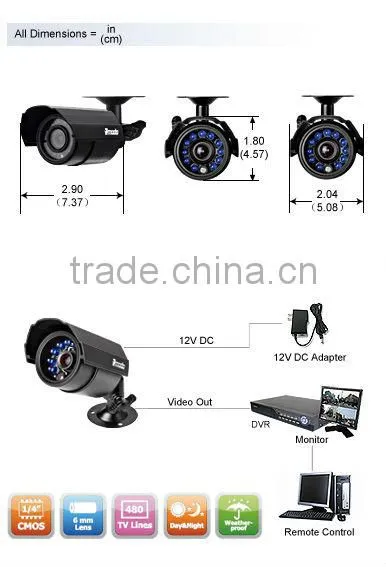

| Dimensions (W x D x H) | 2.9" x 2" x 1.8" |
| Gross Weight | 0.38 lbs |
| Material | Metal Shell |
