Zmodo 4CH Full D1 DVR 600TVL Camera Kit

Zmodo 4CH Full D1 DVR 600TVL Camera Kit thumbnail-1
Zmodo 4CH Full D1 DVR 600TVL Camera Kit photo-1
Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ZMODO
Model Number:
ZMD-KDA4-CARQZ4ZN
Contact Supplier Request Quote Chat Now
Zmodo Technology Shenzhen Corp., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ZMODO
Model Number ZMD-KDA4-CARQZ4ZN

Specifications

* 1/3.7" Color CMOS
* H.264
* Up to 65ft with 24 LEDs
* Weatherproof
* One Year Warranty

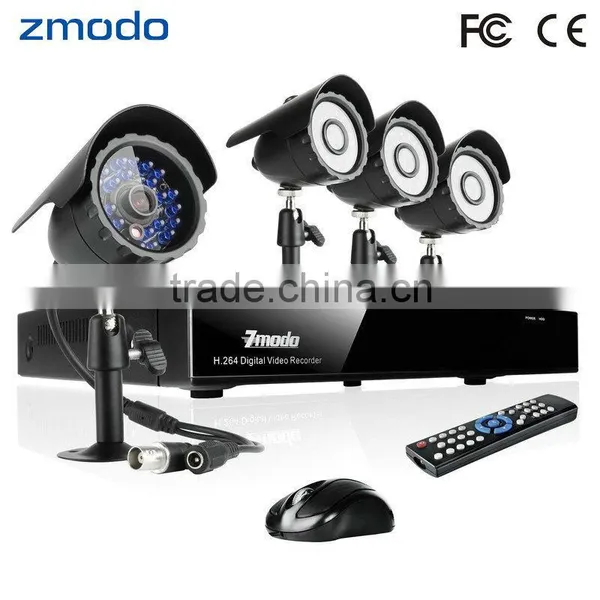

The kit ZMD-KDA4-CARQZ4ZN includes a 4 CH H.264 standalone DVR and four night vision outdoor security cameras. All cables and power supplies are included.

The ZMD-DD-SAN4 is a 4 channel security DVR is a fully integrated, real time and hardware-based standalone digital video recorder based on an embedded Linux operating system.With video/audio input/output, motion detection, 3G Remote View, network access, PTZ camera control and USB2.0 backup, this 4 channel DVR is perfect for the home or small business.

This DVR provides you with real-time D1 resolution, the highest resolution available to DVRs! At 120 FPS (30 FPS Per Channel), recorded video will appear smooth and fluid. D1 gives you 4-times the image size, detail and clarity of conventional CIF quality. Its larger image and added detail makes it easier for you to identify people and objects.

These Ultra High Resolution outdoor cameras deliver clear, high-quality video with 600TVL. 24IR LEDs allow for 65ft of automatic night vision. Weatherproof housing with sunshade to protect again rust, deterioration and glare. They are perfect for outdoor and indoor applications, driveways, parking lots, halls, warehouses, and open office areas.



Zmodo 4CH Full D1 DVR 600TVL Camera KitZmodo 4CH Full D1 DVR 600TVL Camera Kit Zmodo 4CH Full D1 DVR 600TVL Camera Kit Zmodo 4CH Full D1 DVR 600TVL Camera Kit



Model ZMD-DD-SAN4 - Full D1 4CH StandAlone DVR
Video Compression H.264
Video System NTSC / PAL
Operation System Linux Based
Video Input / Output BNC 4-Channel Input /BNC1-Channel Output
Other Video Output VGA
Audio Input / Output RCA 4-Channel Input /BNC1-Channel Output
Display Frame Rate NTSC: 120 fps @ D1 / PAL: 100 fps @ D1
Display Resolution NTSC: D1 (704 x 480) / PAL: D1 (704 x 576)
Recording Frame Rate NTSC: 120 fps @ D1 / PAL: 100 fps @ D1
Record Resolution Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288)
Record Mode Continuous / Time Schedule / Motion Detection
Network RJ45, 10M/100M
Net Protocol TCP/IP, PPPoE, DHCP and DDNS
Remote Access LAN or Internet Browsing
PTZ Control RS-485
HDD Interface SATA, Support between 250GB and 2TB
Playback Mode Normal Play /Fast Forward /Fast Rewind/ Frame by Frame
USB USB Backup / USB 2.0
Remote Control IR Remote Control
Power Supply 12V/3A DC
Power Consumption IR on Max 1000mA
Dimension 290mm (W) x 205mm (D) x 42mm (H)

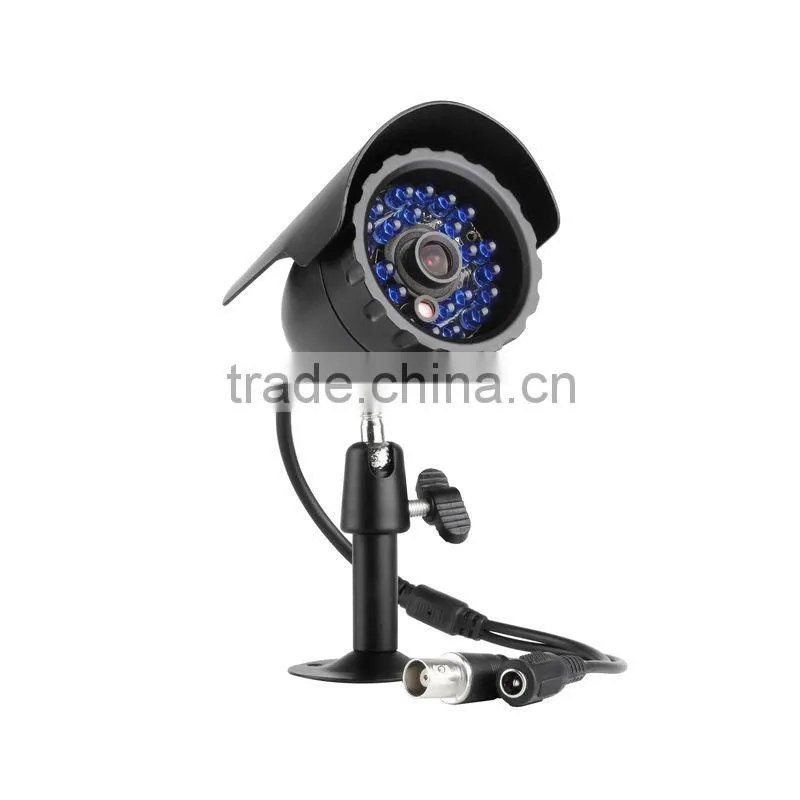

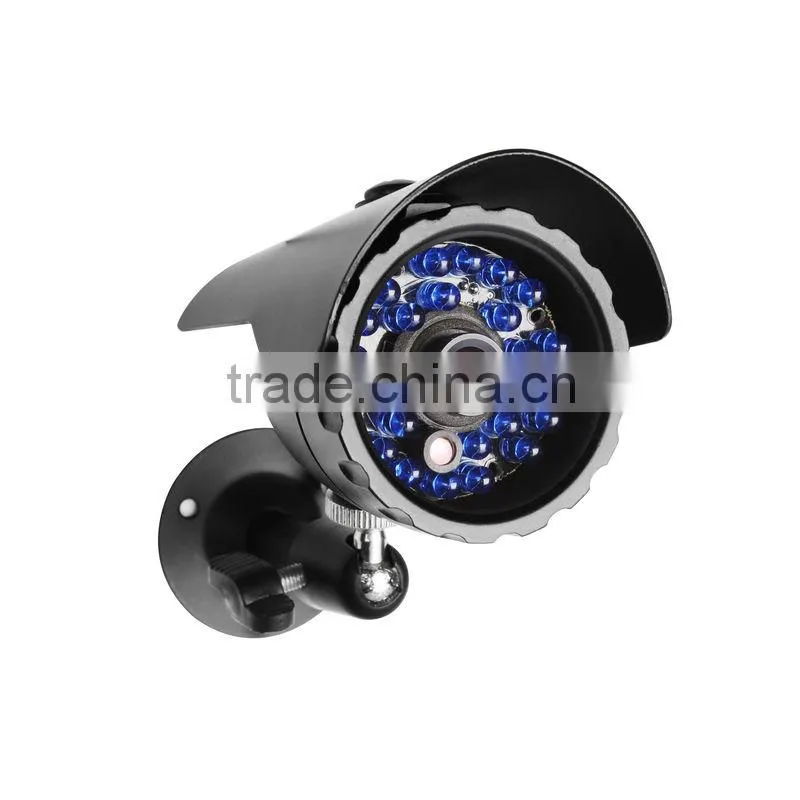

Model ZMD-CCH-BBB23NM - 600TVL Security Camera
Image Sensor 1/3.7" Color CMOS (PC6030)
TV System NTSC / PAL
Horizontal Resolution 600 TV-Lines
Lens 3.6mm
Number of IR LEDs 24 LEDs
Infrared Illumination (Night Vision) up to 65ft(15~20m)
Minimum Illumination 0.0 Lux
S/N Ratio 48dB
Video Output 1.0Vp-p, 75ohms
Weatherproof Yes
Operating Temperature 14°F~122°F / -10°C ~50°C
Power 12V DC
Power Consumption IR on Max 150mA
Dimensions (W x D x H) 3.3" x 2.5" x 2.6"
Gross Weight 0.33 lbs
Material Metal Shell
