Zmodo Outdoor Camera 4 Channel DVR System

Specifications

* H.264
* up to 66ft w/24 LEDs
* PTZ via RS-485 Port
* Weatherproof
* One Year Warranty

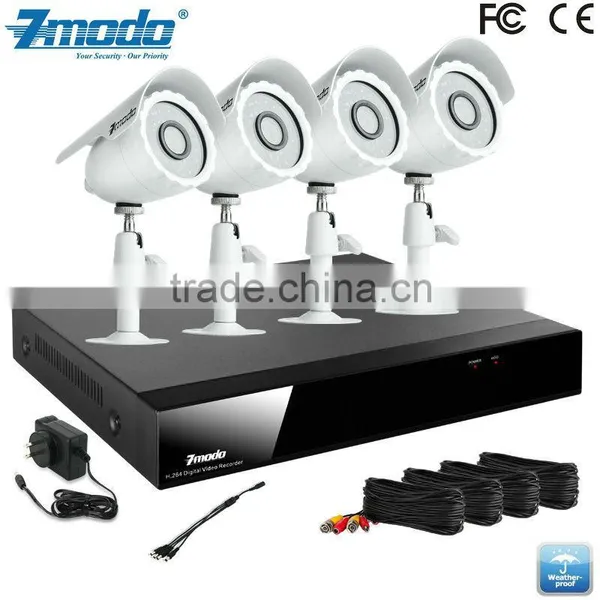

4CH H.264 DVR Security System with Four Indoor/Outdoor Night Vision Surveillance Cameras

This 4 channel DVR camera System delivers everything you need to defend your home or business, safeguard your loved ones and deter intruders. It allows you to have peace of mind at your home or business whenever and wherever you are. It provides the basic surveillance function at an affordable price for your security surveillance needs.

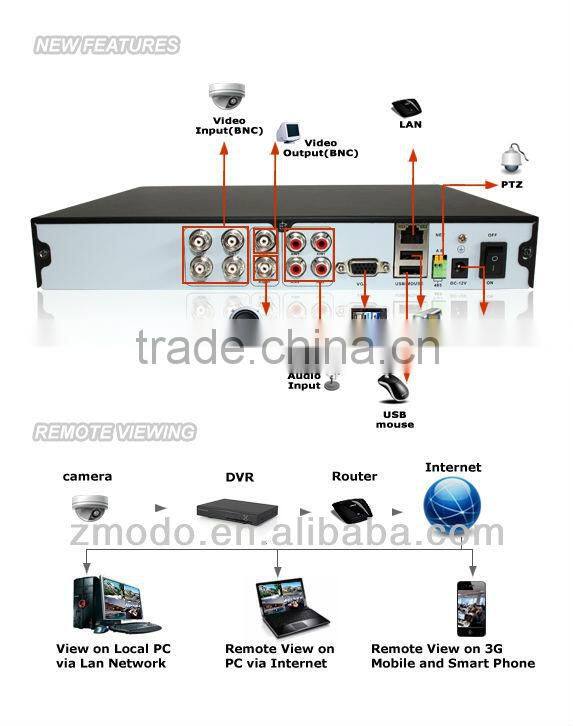

View Online or From Smartphone
This system allows you to view your footage, no matter the time or location. Access your DVR’s footage over the internet, or directly from your Android™ , iPhone®, iPad®, Symbian™ , Windows Mobile®.



Customize Your Camera Display
View four cameras simultaneously in quad mode, or for more detailed viewing, view individual cameras full screen.



Instant Email Alerts if Activity Detected
This system is designed to send an email alert, complete with photo of the activity, if any motion is detected, or if any camera experiences video loss.



Advanced Motion Detection Recording
The motion detection options allow you to record only when motion is detected to save hard drive space without missing important events. You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.



Easy USB Backup
A built-in USB port gives you the option of backing up and transferring your video footage with a USB flash drive or external USB hard drive.

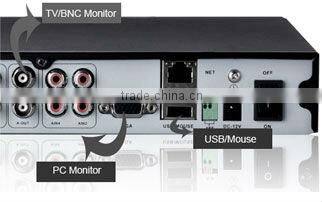

View from a TV or PC monitor
A TV can be used with an AV cable, while a PC monitor can be used with a VGA cable. This gives you more connection options while viewing activity captured by your cameras.

Search by Date, Time or Event
Simply choose the desired date and time range, and the requested video clips will appear. Clips are also labeled by event, which makes it easy to find particular footage.

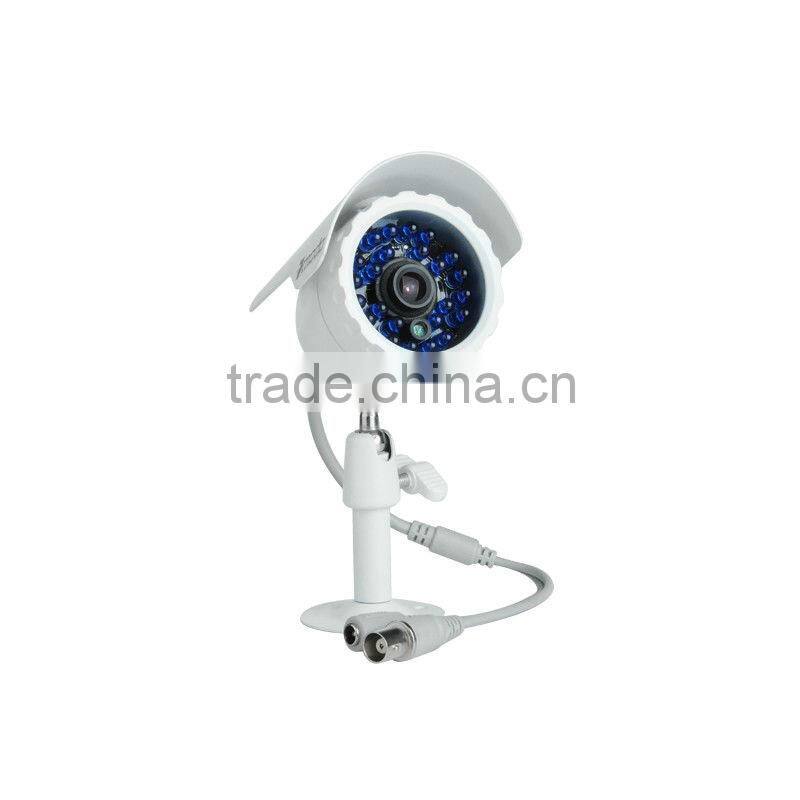

Professional Grade Weatherproof Cameras
Each camera is constructed utilizing professional grade materials for the housing and a sunshade to help prevent glare, deterioration, and rusting. The cameras can be mounted in virtually any indoor or outdoor setting.



See More with Wide Viewing Angle
See more area with the wide 70 degree viewing angle on the 3.6mm lens Cameras. Protect larger areas such as driveways, entrances, warehouses, large retail stores, parking lots, front and backyards.

They Work Day & Night
The cameras deliver Color video in the daytime and Black & White Video at night. It can capture video in night vision mode up to 65ft.



Model	ZMD-DD-SAN4 - Full D1 4CH StandAlone DVR
Video Compression	H.264
Video System	NTSC / PAL
Operation System	Linux Based
Video Input / Output	BNC 4-Channel Input /BNC1-Channel Output
Other Video Output	VGA
Audio Input / Output	RCA 4-Channel Input /BNC1-Channel Output
Display Frame Rate	NTSC: 120 fps @ D1 / PAL: 100 fps @ D1
Display Resolution	NTSC: D1 (704 x 480) / PAL: D1 (704 x 576)
Recording Frame Rate	NTSC: 120 fps @ D1 / PAL: 100 fps @ D1
Record Resolution	Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288)
Record Mode	Continuous / Time Schedule / Motion Detection
Network	RJ45, 10M/100M
Net Protocol	TCP/IP, PPPoE, DHCP and DDNS
Remote Access	LAN or Internet Browsing
PTZ Control	RS-485
HDD Interface	SATA, Support between 250GB and 2TB
Playback Mode	Normal Play /Fast Forward /Fast Rewind/ Frame by Frame
USB	USB Backup / USB 2.0
Remote Control	IR Remote Control
Power Supply	12V/3A DC
Power Consumption	IR on Max 1000mA
Dimension	290mm (W) x 205mm (D) x 42mm (H)

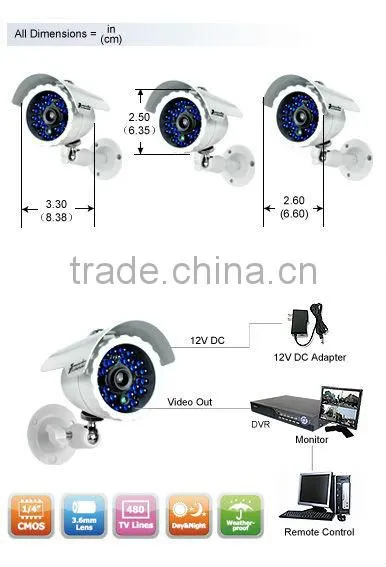

Model	ZMD-CBR-BBS23NM(CM-C22623BG)- Color IR Bullet Camera
Image Sensor	1/4" Color CMOS
TV System	NTSC / PAL
Effective Pixels	NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V)
Horizontal Resolution	480 TV-Lines
Lens	3.6mm
Number of IR LEDs	24 LEDs
Infrared Illumination (Night Vision)	up to 65ft(15~20m)
Minimum Illumination	0.0 Lux
S/N Ratio	48dB
Video Output	1.0Vp-p, 75ohms
Weatherproof	Yes
Operating Temperature	-25°F~122°F / -32°C ~50°C
Power	12V DC
Power Consumption	IR on Max 150mA
Dimensions (W x D x H)	3.3" x 2.5" x 2.6"
Gross Weight	0.33 lbs
Material	Metal Shell
