Specifications
* Supports Remote View via smartphone & 3G Mobile* Waterproof
* SATA, Support between 250GB and 2TB
* One Warranty

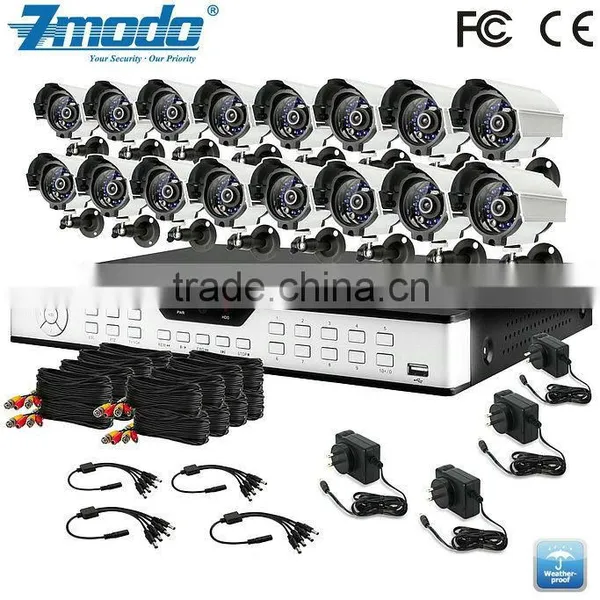

This complete video surveillance system provides everything you will need to protect your home or business, safeguard your loved ones, and deter intruders. The system includes a state-of-the-art 16 channel H.264 DVR with 16 weatherproof day/night cameras, and allows for the simultaneous viewing and recording of 16 video streams locally, with remote streaming capability over the Internet or to a supported Smartphone. This is an affordable security solution for your home or small business.
Surveillance in the Palm of Your Hand
View live video streams directly from your supported PC or Smartphone running Android™, iPhone®, iPad®, Symbian™ , Windows Mobile® .
Multiple Recording Modes
Choose 24/7 continuous recording, schedule specific recording times by hour or day, or set motion detection recording to help catch only the important information to save on hard drive space.
Clear, Crisp Image
The high quality 1/4" Color CMOS image sensor in this camera provides a clear, crisp and consistent picture at 480TV lines of resolution.
Day Night Monitoring
12 infrared (IR) LEDs activate automatically in low-light or no-light situations to allow you to see up to 30’ away, and deactivate once lighting conditions are brighter.
See More with Wide Viewing Angle
See more area with the wide 70 degree viewing angle on the 3.6mm lens Cameras. Protect larger areas such as driveways, entrances, warehouses, large retail stores, parking lots, front and backyards.
Weatherproof Housing for Indoor and Outdoor
This bullet camera was designed to withstand the outdoor elements. Its professional grade weather resistant metal housing and sunshade help protect against rust and deterioration.
Fog Won't Stop Us
The dual layer of glasses, standing before the lenses,will prevent the lens from being fuzzy and blinding caused by fogs or other occasions.
Flexible Bracket Mounting
You can mount it at on the wall or ceiling at any positions conspicuous or inconspicuous for the perfect viewing angle
| Model | ZMD-DC-SBN6 16CH Standalone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC16-Channel Input/ BNC1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input/ BNC1-Channel Output |
| Display Frame Rate | NTSC: 480fps@CIF / PAL: 400fps@CIF |
| Display Resolution | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 480 fps@CIF/ PAL: 400 fps@CIF |
| Record Resolution | NTSC: CIF (352 x 240)/PAL: CIF (352 x 288) |
| Record Mode | Manual/ Schedule /Motion Detection/Alarm/ Motion Detection&Alarm supported |
| 3G Mobile | Support mobile phone based on iPhone? 4.3 up,Android? 2.2 up |
| Mobile Function | 1 Channel Viewer / Channel Switch / Control PTZ |
| Network Function | IE Viewer / Live Monitoring / DVR Setting / Mobile & Email Function |
| Network | RJ45, 10M/100M |
| Net Protocol | IPv4, PPPOE client, DHCP client and TCP/UDP protocol supported. |
| Remote Access | Remote Client Software and IE Browser |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| Playback Mode | Normal Play, Fast Forward, Fast Rewind, Manual |
| Sensor/ Alarm | 4-ch Sensor Inputs / 1-ch Alarm Output |
| USB | USB Thumb Drive Backup or Upgrade / Mouse / Removable HDD |
| Remote Control/Mouse | Included/Included |
| Power Supply | DC12V / 5A |
| Dimension | 354mm (W) x 275mm (D) x 47mm (H) |
| Model | ZMD-CBR-BCS13NM(CM-C11613SV)- Color Outdoor IR Security Camera |
| Image Sensor | 1/4" Color CMOS |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V) |
| Horizontal Resolution | 480 TV-Lines |
| Lens | 3.6mm |
| Number of IR LEDs | 12 LEDs |
| Infrared Illumination (Night Vision) | up to 30ft(10~15m) |
| Minimum Illumination | 0.0 Lux |
| S/N Ratio | > 45.6dB |
| Video Output | 1.0Vp-p, 75ohms |
| Operating Temperature | -25°F~122°F / -32°C ~50°C |
| Weatherproof | Yes |
| Power | 12V DC |
| Dimensions (W x D x H) | 3.5" x 2.6" x 3.0" |
| Gross Weight | 0.5lbs |
| Material | Metal Shell |
