Specifications
* H.264* 24 LEDs,65ft ir
* Weatherproof
* Metal Shell material
* One Year Warranty

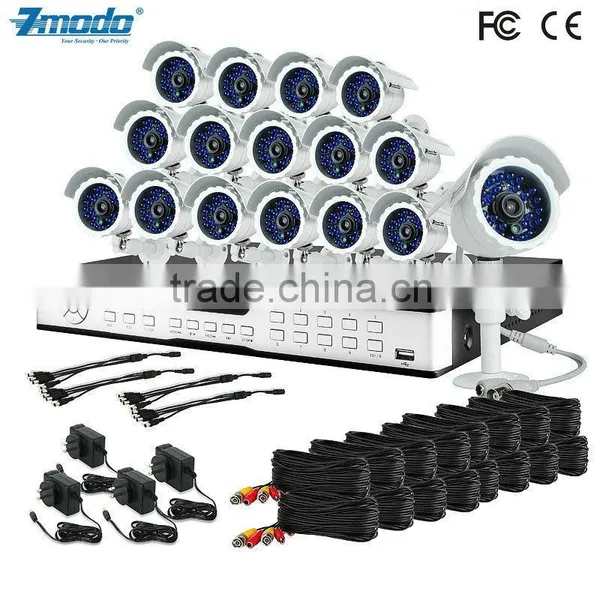

Zmodo 16 CH DVR Surveillance System with 16 Indoor/Outdoor Night Vision Cameras
This complete video surveillance system provides everything you will need to protect your home or business, safeguard your loved ones, and deter intruders. The system includes a state-of-the-art 16 channel H.264 DVR with 16 weatherproof day/night cameras, and allows for the simultaneous viewing and recording of 16 video streams locally, with remote streaming capability over the Internet or to a supported Smartphone. This is an affordable security solution for your home or small business.
Surveillance in the Palm of Your Hand
View live video streams directly from your supported PC or Smartphone running Android™, iPhone®, iPad®, Symbian™ , Windows Mobile®.
Multiple Recording Modes
Choose 24/7 continuous recording, schedule specific recording times by hour or day, or set motion detection recording to help catch only the important information to save on hard drive space.
Instant Email Alerts if Activity Detected
This system is designed to send an email alert, complete with photo of the activity, if any motion is detected, or if any camera experiences video loss.
Easy USB Backup
Built-in USB port provides an easy option to transfer your files to a PC, backup, or send to others.
View from a TV or PC monitor
A TV can be used with an AV cable, while a PC monitor can be used with a VGA cable. This gives you more connection options while viewing activity captured by your cameras. (The AV & VGA Cable is not included)
Night Vision Equipped Cameras
Full, true-to-life color picture during the day and black & white infrared-aided picture at night. Cameras can capture images in night vision mode up at 65’ away.
16 Professional Weatherproof Cameras
Each camera is constructed utilizing professional grade materials for the housing and a sunshade to help prevent glare, deterioration, and rusting. The cameras can be mounted in virtually any indoor or outdoor setting.
| Model | ZMD-DC-SBN6 16CH Standalone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC16-Channel Input/ BNC1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input/ BNC1-Channel Output |
| Display Frame Rate | NTSC: 480fps@CIF / PAL: 400fps@CIF |
| Display Resolution | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 480 fps@CIF/ PAL: 400 fps@CIF |
| Record Resolution | NTSC: CIF (352 x 240)/PAL: CIF (352 x 288) |
| Record Mode | Manual/ Schedule /Motion Detection/Alarm/ Motion Detection&Alarm supported |
| 3G Mobile | Support mobile phone based on Android iPhone iPad IOSSymbianWindows Mobile. |
| Mobile Function | 1 Channel Viewer / Channel Switch / Control PTZ |
| Network Function | IE Viewer / Live Monitoring / DVR Setting / Mobile & Email Function |
| Network | RJ45, 10M/100M |
| Net Protocol | IPv4, PPPOE client, DHCP client and TCP/UDP protocol supported. |
| Remote Access | Remote Client Software and IE Browser |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| Playback Mode | Normal Play, Fast Forward, Fast Rewind, Manual |
| Sensor/ Alarm | 4-ch Sensor Inputs / 1-ch Alarm Output |
| USB | USB Thumb Drive Backup or Upgrade / Mouse / Removable HDD |
| Remote Control/Mouse | Included/Included |
| Power Supply | 12V/5A DC |
| Power Consumption | IR on Max 2000mA |
| Dimension | 354mm (W) x 275mm (D) x 47mm (H) |

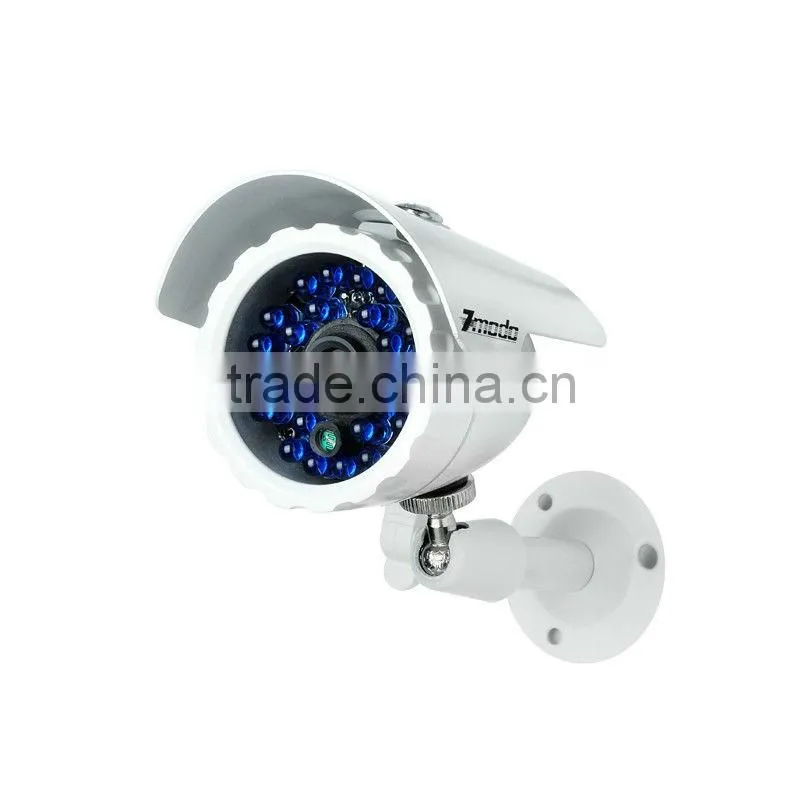

| Model | ZMD-CBR-BBS23NM(CM-C22623BG)- Color IR Bullet Camera |
| Image Sensor | 1/4" Color CMOS |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V) |
| Horizontal Resolution | 480 TV-Lines |
| Lens | 3.6mm |
| Number of IR LEDs | 24 LEDs |
| Infrared Illumination (Night Vision) | up to 65ft(15~20m) |
| Minimum Illumination | 0.0 Lux |
| S/N Ratio | 48dB |
| Video Output | 1.0Vp-p, 75ohms |
| Weatherproof | Yes |
| Operating Temperature | -25°F~122°F / -32°C ~50°C |
| Power | 12V DC |
| Power Consumption | IR on Max 150mA |
| Dimensions (W x D x H) | 3.3" x 2.5" x 2.6" |
| Gross Weight | 0.33 lbs |
| Material | Metal Shell |
