Specifications
* Supports Remote View via smartphone & 3G Mobile* Waterproof
* SATA, Support between 250GB and 2TB
* One Warranty

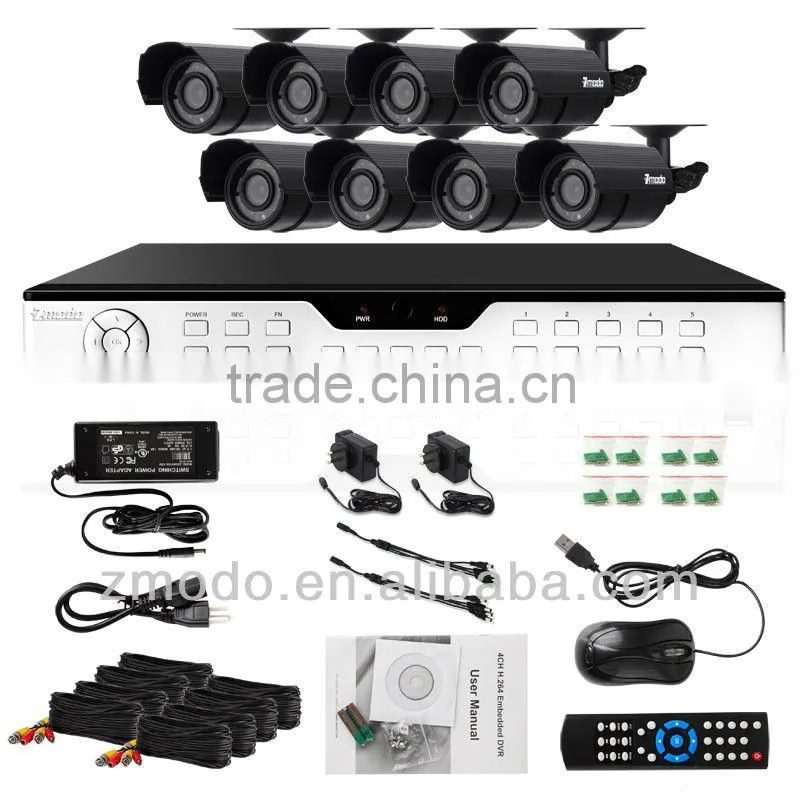

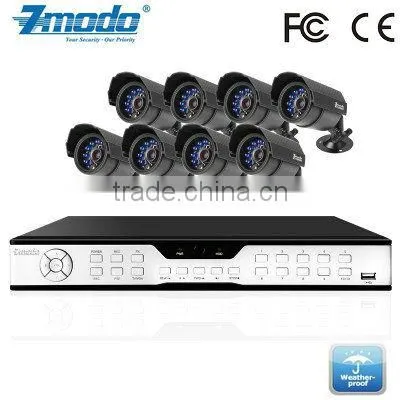

Zmodo 16 CH DVR Surveillance System with 8 Indoor/Outdoor Night Vision Cameras
This 16 channel video surveillance system provides everything you will need to protect your home or business, safeguard your loved ones, and deter intruders. The system includes a state-of-the-art 16 channel H.264 DVR with 8 weatherproof day/night cameras, and allows for the simultaneous viewing and recording of 8 video streams locally, with remote streaming capability over the Internet or to a supported Smartphone. This is an affordable security solution for your home or small business.

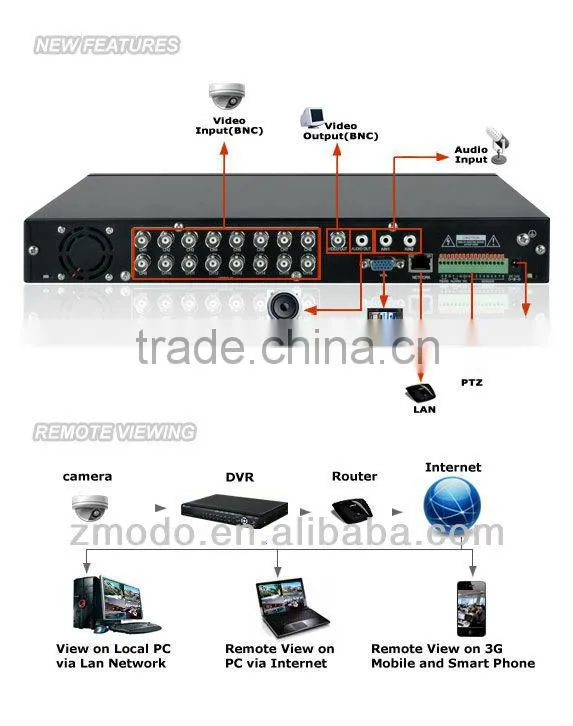

Remotely View Any Camera on Your PC or Smartphone
View live video streams directly from your supported PC or Smartphone running Android™, iPhone®, iPad®, Symbian™ , Windows Mobile®.
Advanced Motion Activated Recording
The motion detection options allow you to record only when motion is detected to save hard drive space without missing important events. You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.
Scheduled Recording Options
Choose the specific days of the week and hours of the day you would like your DVR to record or not record. Each individual camera can be set with its own personalized schedule.
Instant Email Alerts if Activity Detected
This system is designed to send an email alert, complete with photo of the activity, if any motion is detected, or if any camera experiences video loss.
Easy USB Backup
Built-in USB port provides an easy option to transfer your files to a PC, backup, or send to others.
View from a TV or PC monitor
A TV can be used with an AV cable, while a PC monitor can be used with a VGA cable. This gives you more connection options while viewing activity captured by your cameras. (The AV & VGA Cable is not included)
Day Night Monitoring
11 infrared (IR) LEDs activate automatically in low-light or no-light situations to allow you to see up to 30’ away, and deactivate once lighting conditions are brighter.
Weather Resistant Housing
Each camera is constructed utilizing professional grade materials for the housing and a sunshade to help prevent glare, deterioration, and rusting. The cameras can be mounted in virtually any indoor or outdoor setting.

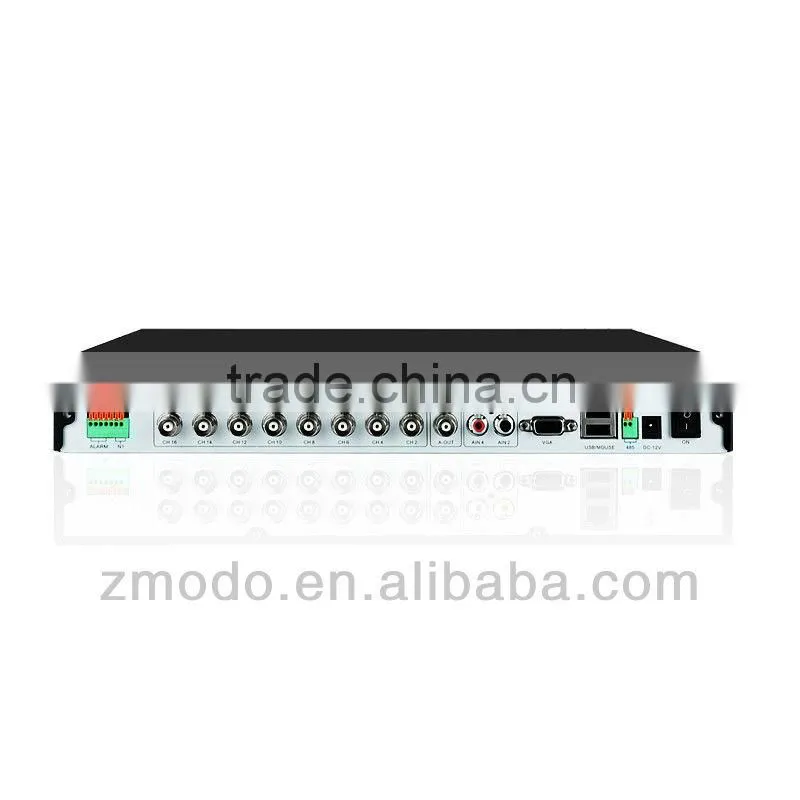

| Model | ZMD-DC-SBN6- 16 Ch Standalone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC16-Channel Input/ BNC1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input/ BNC1-Channel Output |
| Display Frame Rate | NTSC: 480fps@CIF / PAL: 400fps@CIF |
| Display Resolution | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 480 fps@CIF/ PAL: 400 fps@CIF |
| Record Resolution | NTSC: CIF (352 x 240)/PAL: CIF (352 x 288) |
| Record Mode | Manual/ Schedule /Motion Detection/Alarm/ Motion Detection&Alarm supported |
| 3G Mobile | Support mobile phone based on iPhone? 4.3 up,Android? 2.2 up |
| Mobile Function | 1 Channel Viewer / Channel Switch / Control PTZ |
| Network Function | IE Viewer / Live Monitoring / DVR Setting / Mobile & Email Function |
| Network | RJ45, 10M/100M |
| Net Protocol | IPv4, PPPOE client, DHCP client and TCP/UDP protocol supported. |
| Remote Access | Remote Client Software and IE Browser |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| Playback Mode | Normal Play, Fast Forward, Fast Rewind, Manual |
| Sensor/ Alarm | 4-ch Sensor Inputs / 1-ch Alarm Output |
| USB | USB Thumb Drive Backup or Upgrade / Mouse / Removable HDD |
| Remote Control/Mouse | Included/Included |
| Power Supply | DC12V / 5A |
| Dimension | 354mm (W) x 275mm (D) x 47mm (H) |

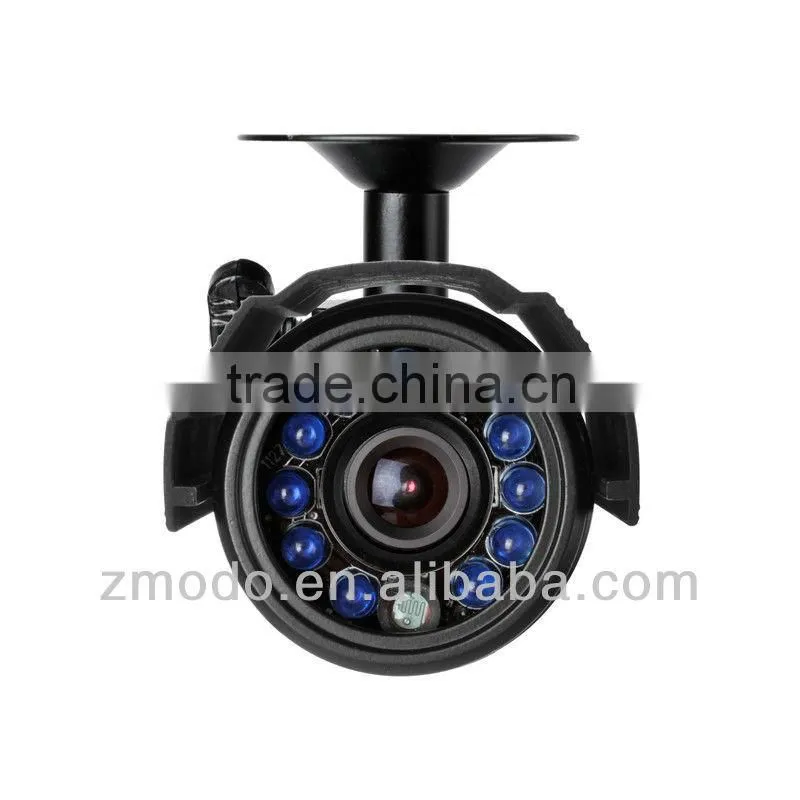

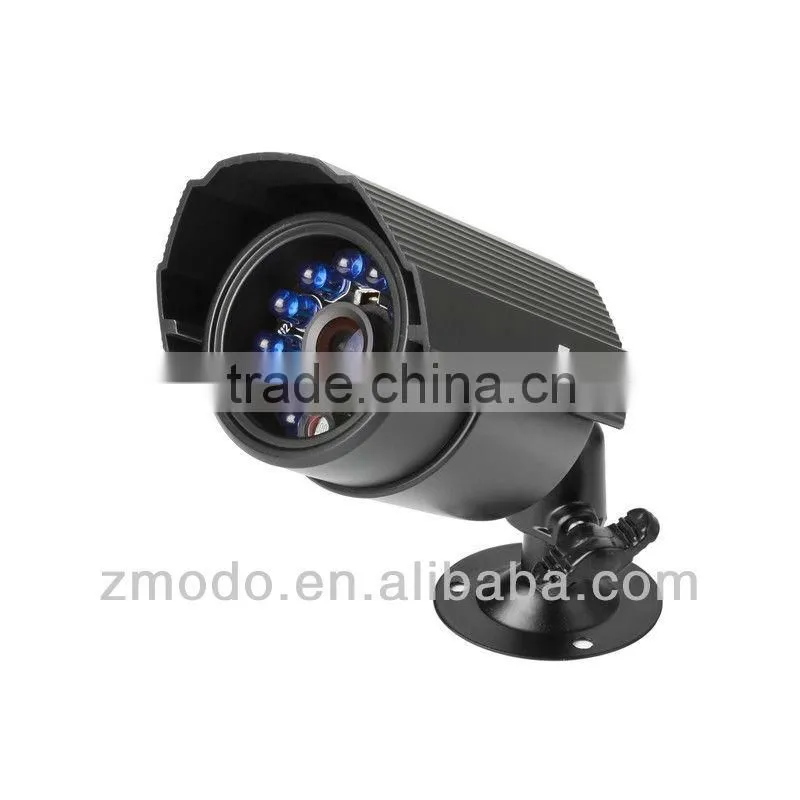

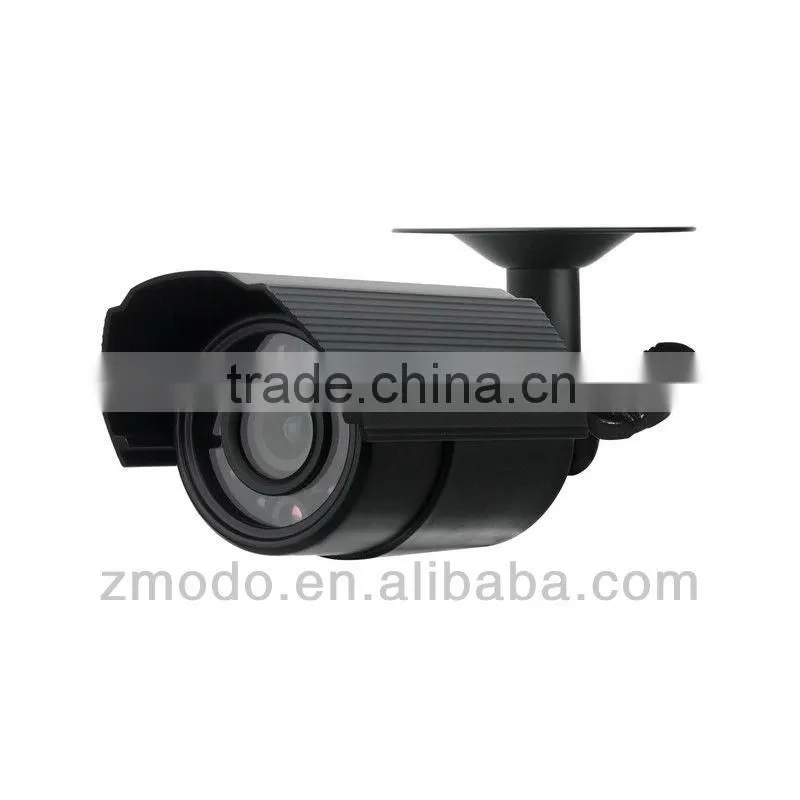

| Model | CM-C21606BK- Color IR Bullet Camera |
| Image Sensor | 1/4" Color CMOS |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V) |
| Horizontal Resolution | 480 TV-Lines |
| Lens | 6mm |
| Number of IR LEDs | 11 LEDs |
| Infrared Illumination (Night Vision) | up to 30ft(10~15m) |
| Minimum Illumination | 0.0 Lux |
| S/N Ratio | 48dB |
| Video Output | 1.0Vp-p, 75ohms |
| Weatherproof | Yes |
| Operating Temperature | -25°F~122°F / -32°C ~50°C |
| Power | 12V DC |
| Dimensions (W x D x H) | 2.9" x 2" x 1.8" |
| Gross Weight | 0.38 lbs |
| Material | Metal Shell |
