Zmodo 4CH DVR 600TVL Sony CCD CCTV Camera Set

Zmodo 4CH DVR 600TVL Sony CCD CCTV Camera Set thumbnail-1
Zmodo 4CH DVR 600TVL Sony CCD CCTV Camera Set photo-1
Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ZMODO
Model Number:
ZMD-KDA4-MARUZ4ZN
Contact Supplier Request Quote Chat Now
Zmodo Technology Shenzhen Corp., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ZMODO
Model Number ZMD-KDA4-MARUZ4ZN

Specifications

* Waterproof camera
* 1/4" Sony Color CCD
* IR Remote Control
* Up to 65' IR night vision
* One Year Warranty

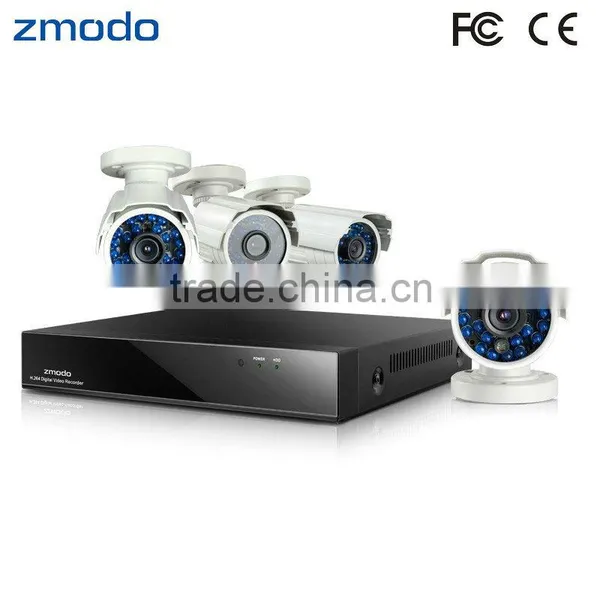

The  ZMD-KDA4-MARUZ4ZN DVR camera system includes a 4 channel security DVR and four CCD night vision outdoor cameras ,offering everything you need to have your surveillance system up and running in your home or businesses quickly and easily.

Based on an embedded Linux operating system,the fully integrated 4 channel standalone security DVR is capable of rich functionalities including video/audio, motion detection, 3G Remote View,network access, PTZ control and USB2.0 backup. This DVR records real-time video at CIF (352 x 240) for 30fps frame rate on every channel. This real time H.264 DVR is a perfect choice for your home and business.

This DVR provides you with real-time D1 resolution, the highest resolution available to DVRs! At 120 FPS (30 FPS Per Channel), recorded video will appear smooth and fluid. D1 gives you 4-times the image size, detail and clarity of conventional CIF quality. Its larger image and added detail makes it easier for you to identify people and objects.

Featuring imaging provided by a 1/4" Sony CCD image sensor with 600TVL, this indoor and outdoor CCTV camera delivers crystal color video image in daylight, as well as black and white video in darkness up to 65ft away with 24 built in IR LEDS.




Zmodo 4CH DVR 600TVL Sony CCD CCTV Camera SetZmodo 4CH DVR 600TVL Sony CCD CCTV Camera SetZmodo 4CH DVR 600TVL Sony CCD CCTV Camera Set

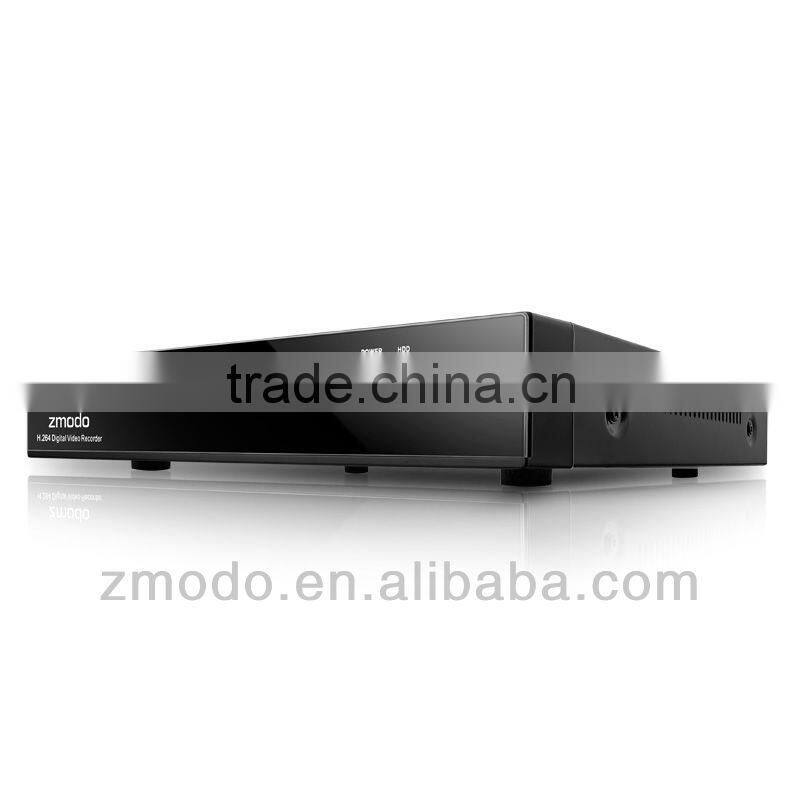

Model ZMD-DD-SAN4 - Full D1 4CH StandAlone DVR
Video Compression H.264
Video System NTSC / PAL
Operation System Linux Based
Video Input / Output BNC 4-Channel Input /BNC1-Channel Output
Other Video Output VGA
Audio Input / Output RCA 4-Channel Input /BNC1-Channel Output
Display Frame Rate NTSC: 120 fps @ D1 / PAL: 100 fps @ D1
Display Resolution NTSC: D1 (704 x 480) / PAL: D1 (704 x 576)
Recording Frame Rate NTSC: 120 fps @ D1 / PAL: 100 fps @ D1
Record Resolution Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288)
Record Mode Continuous / Time Schedule / Motion Detection
Network RJ45, 10M/100M
Net Protocol TCP/IP, PPPoE, DHCP and DDNS
Remote Access LAN or Internet Browsing
PTZ Control RS-485
HDD Interface SATA, Support between 250GB and 2TB
Playback Mode Normal Play /Fast Forward /Fast Rewind/ Frame by Frame
USB USB Backup / USB 2.0
Remote Control IR Remote Control
Power Supply 12V/3A DC
Power Consumption IR on Max 1000mA
Dimension 290mm (W) x 205mm (D) x 42mm (H)

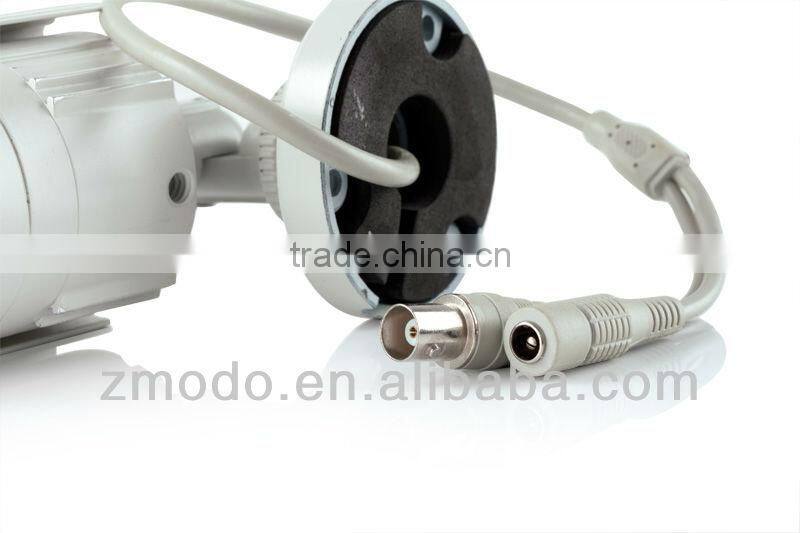

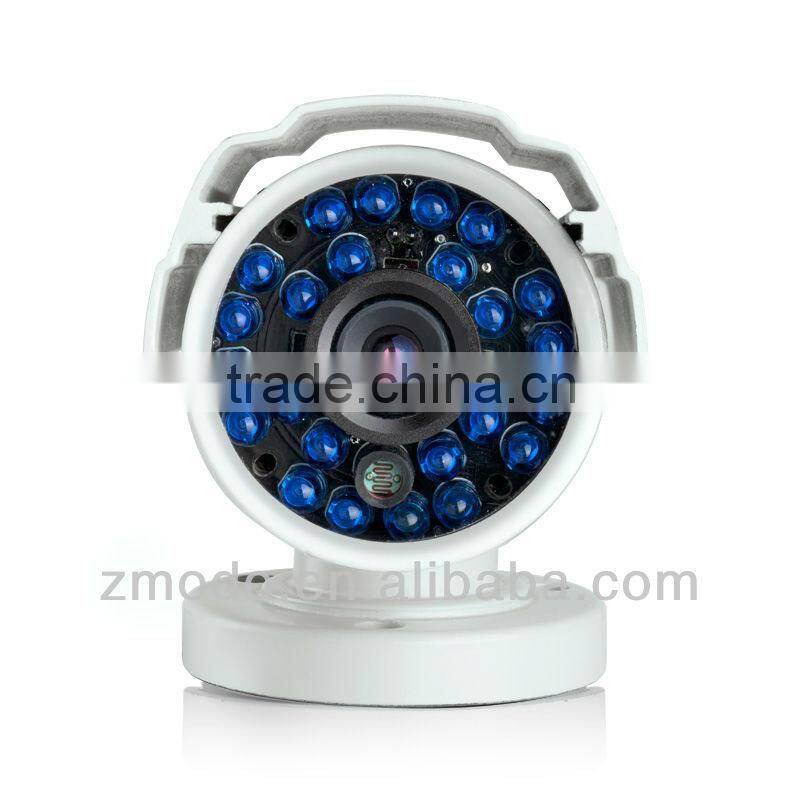

Model ZMD-CMH-BUM23NM -600TVL Outdoor CCD Camera
Image Sensor 1/4" Sony Color CCD
TV System NTSC / PAL
Horizontal Resolution 600 TV-Lines
Lens 3.6mm
Number of IR LEDs 24 PCS
Infrared Illumination (Night Vision) up to 65ft (15~20m)
Minimum Illumination 0 Lux (IR On)
S/N Ratio ≥ 48dB
Video Output 1.0Vp-p, 75ohms (BNC)
Weatherproof Yes
Operating Temperature 14°F~122°F / -10°C ~50°C
Power 12V DC
Dimensions (W x D x H) 3.3" x 2.5" x 2.6"
Gross Weight 0.33 lbs
Material Metal Shell

 Zmodo 4CH DVR 600TVL Sony CCD CCTV Camera SetZmodo 4CH DVR 600TVL Sony CCD CCTV Camera Set
