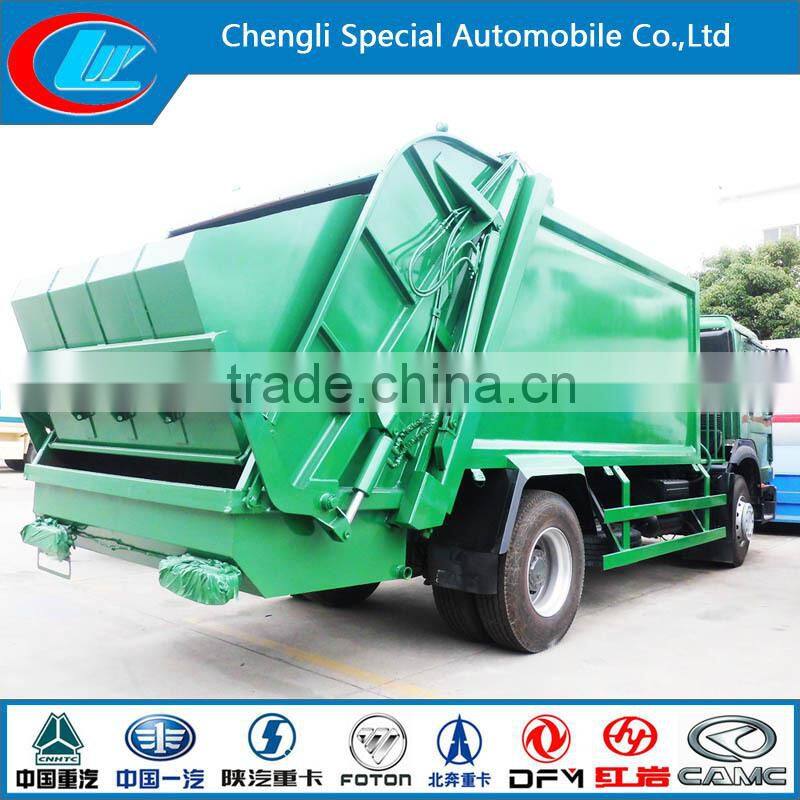

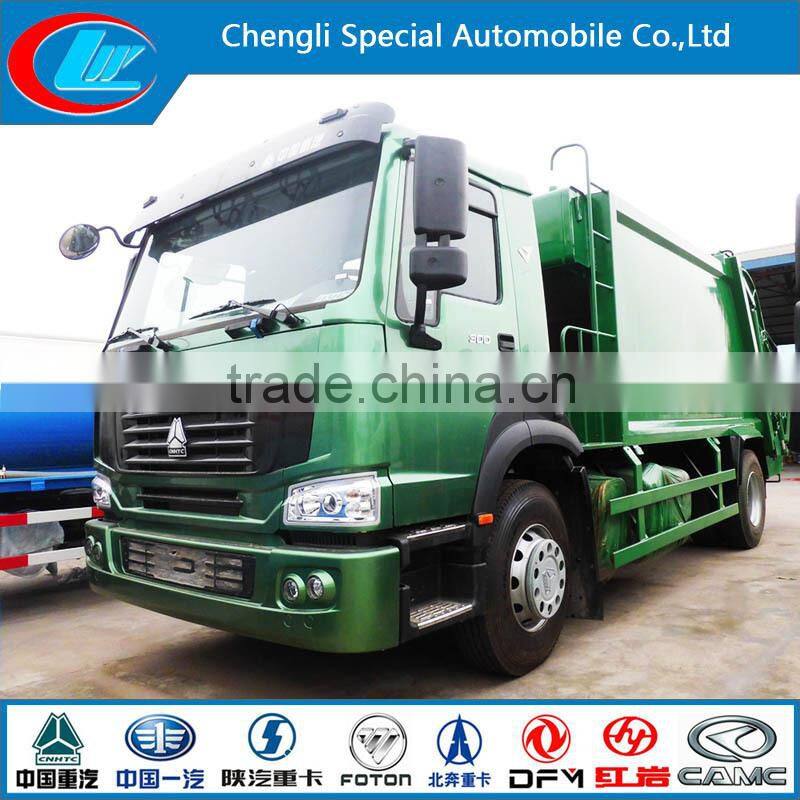

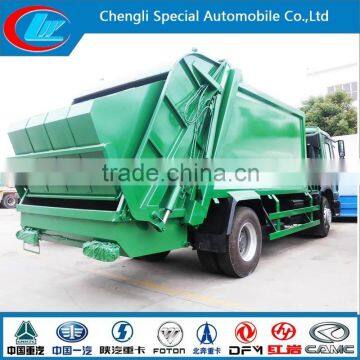

Famous 6-10m3 Waste Compression type Garbage Truck, Side Loading Garbage Compactor Truck, Food Waste Collection Truck
Specifications:
garbage truck,trash collection convenient, highly effective, repeatedly compresses automatically,working automation, leak-proof garbage truck
1,high compression ratio
2,good sealing performance
3,automatic operation.
4,best price
Model |
FAW Garbage Truck/FAW Compactor Garbage Truck/FAW Compressed Garbage Truck |
||||
Driving Model |
4X2/6X4/6X2/8X4/8X6 |
||||
Vehicle Main Dimensions |
(L x W x H)mm |
6150*2494*2800 |
|||
Wheel base (mm) |
3800 |
||||
Wheel track (front/rear) (mm) |
1500/2665 |
||||
Approach/Departure angle(°) |
16/10 |
||||
Weight in KGS |
G.V.W. |
16000 |
|||
Curb Weight |
5150 |
||||
Max. driving speed(km/h) |
80 |
||||
Engine |
Brand |
Xichai |
|||
Model |
CA4DK1-18E3 |
||||
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||||
Horse Power |
180(HP) |
||||
Emission standard |
Euro Ⅲ |
||||
Displacement |
4.78L |
||||
Max. Output Power |
132kw |
||||
Gearbox |
RTS-11909A 9 forwards& 1 reverse |
||||
Clutch |
Reinforced diaphragm clutch, diameter 430mm |
||||
Tire |
8.25R16 10.00R20 11.00R20 12.00R22.5All steel radial tire, 6pc including 1 spare tire |
||||
Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||||
Steering Gear |
power steering, hydraulic steering with power assistance |
||||
Garbage Truck Body | |||||
Volume(M3) |
5CBM 6CBM 7CBM 8CBM 9CBM 10CBM 11CBM 12CBM 13CBM 15CBM 18CBM |
||||
Material |
Q235/Q345/610L/Q700 carbon steel, stainless steel, alloy steeel |
||||
Equipment |
Hermetic dustbin, hydraulic system and operating system |
||||
Thickness |
4mm 6mm 10mm |
||||
Uploding cycling time |
<60s |
||||
Loading cycling time |
≤30s |
||||
Lifting capacity of turnover machanism |
≥800KG |
||||

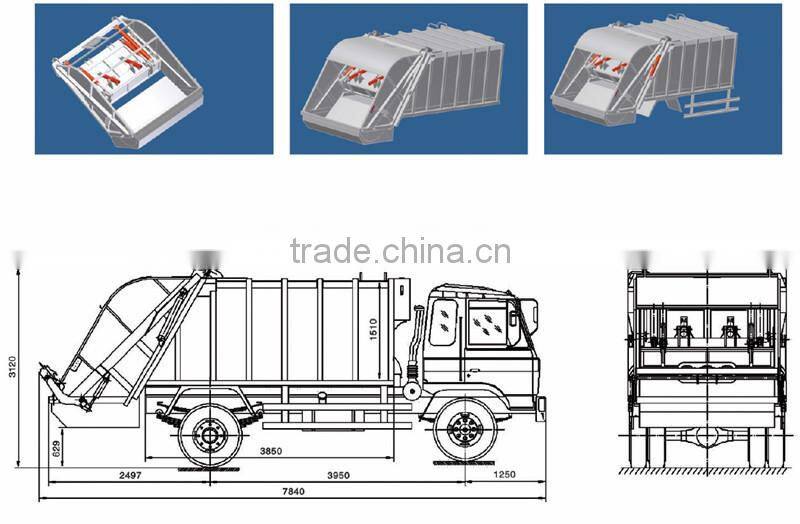

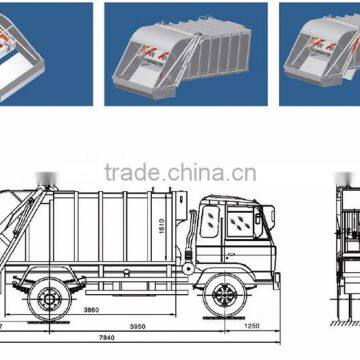

Technique Parameters
Factory Scene
About our factory:
Workshop Scene
Garbage Truck Series
Chengli Special automobile Co., Ltd also provide products as follows:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck,sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
16. Garbage Truck /Compactor garbage truck/compressed garbage truck
Products Notes
- Roll off garbage truck---- Widely used to collect the loads of construction and demolition waste, one truck available with several roll-off containers, easy to raise the container with hydraulic system.
- Dump garbage truck---- Widely used to dispose loads of construction and demolition waste, easy to dump the waste with hydraulic system.
- Docking garbage truck---- Used to transfer and dispose the compressed waste of the urban area. The operation system can be controlled by the hydraulics manually or electrically. After the garbage is compressed at the station, the garbage container is lifted upwards and open its door. At the same time, the truck opens its rear door of the garbage body. Then the two doors are docked and the waste is pushed from the container of the station into the garbage body of the truck. After that, the truck can transfer the waste and dispose it. It is the most common way of waste disposal in China presently. One truck can be shared by several garbage stations, which reduces the equipment cost and space. All of the operation systems are driven by the truck engines through the hydraulics. The truck body is constructed with high quality carbon steel and from a fully-sealed structure, which can avoid the secondary pollution.
- Arm-roll garbage truck---It is made up of chassis, garbage body, hydro-cylinder,etc. The hydro-cylinder is used to speed down the rolling arm; the truck can be separated from the garbage tank and shared by several tanks.
- Hydraulic lifter garbage truck----The garbage tank of the truck can be lifted upwards and turned over by the chains and the hydraulic hydro-cylinder. By this way, it can collect the garbage at different places into the tank and dump them out at one time.
Customers
We have customers from worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, middle-east,African, South-african, Australian and so forth. We serve the best service for our customers.Welcome all friends come to visit our factory. The series products of our trucks are ideal versions instead of imported ones. With outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
Advantages of Choose us:
1. Have focused on special automobiles' design and production for nearly 10 years
2. Have obtained the ISO9001 international quality management system certification.
3. Have obtained foreign trade qualification granted by Chinese government.
4. Manufacturer direct sale , quality guaranteed, low price.
5. Europe Emission Standard 2/3/4.
6. Except standard products we can also produce products base on customers' requirement.
fire truck , aerial working truck, garbage truck, truck mounted crane, sewage suction tanker truck, fecal sucking truck, refrigerated truck, van truck, cargo truck, fuel tanker truck , oil tanker truck, road sweeper , fuel tanker semi-trailer, skeleton semi-trailer, low bed semi-trailer, road wrecker, tractor, dump truck, concrete mixer truck, bulk cement tanker truck.
