Home > Products > Pneumatic(air-assisted) Airless Paint Sprayer > Air compressor assisted Airless Paint sprayer,
Air compressor assisted Airless Paint sprayer,
USD $900 - $1,300
/ Set
5 Sets(Min.Order)
- 1000 Set / Sets per Month
- NINGBO/SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | DINO-POWER | Model Number: | DP-6391B |
| Power Source: | Pneumatic | Rated Voltage: | N/A | Frequency: | N/A |
| Dimensions: | 65*70*110CM | Weight: | 90KGS |
Product Description
Specifications
High pressure Pneumatic airless pump (piston) & Airless spray gun setPneumatic Airless Paint sprayer,Air compressor assisted
DP-6391 Pneumatic airless pump (piston type) & Airless spray gun kit
Model No. DP-6391B (Cylinder dia.250mm)
Pressure rate: 38:1
* Max pressure:228bar / 3300psi
* Max.tip size: 0.023
* Paint Delivery / fluid flow: 13.5L/min (3.4gallon/L)
* Air-compressor pressure / air input pressure: 0.4-0.6Mpa (4-6kgs/cm2, 4-6bar)
* Cylinder diameter: 250mm
* Stroke: 100mm
* Spraying distance: 350-400mm
* G.W.:95KGS; N.W.:85KGS
* Max pressure:228bar / 3300psi
* Max.tip size: 0.023
* Paint Delivery / fluid flow: 13.5L/min (3.4gallon/L)
* Air-compressor pressure / air input pressure: 0.4-0.6Mpa (4-6kgs/cm2, 4-6bar)
* Cylinder diameter: 250mm
* Stroke: 100mm
* Spraying distance: 350-400mm
* G.W.:95KGS; N.W.:85KGS
Pressure rate: 46:1
* Max pressure:276bar / 4000psi
* Max.tip size: 0.023
* Paint Delivery / fluid flow: 10.4L/min (2.6gallon/L)
* Air-compressor pressure / air input pressure: 0.3-0.6Mpa (3-6kgs/cm2, 3-6bar)
* Cylinder diameter: 250mm
* Stroke: 100mm
* Spraying distance: 350-400mm
* G.W.:90KGS; N.W.:80KGS
* Max pressure:276bar / 4000psi
* Max.tip size: 0.023
* Paint Delivery / fluid flow: 10.4L/min (2.6gallon/L)
* Air-compressor pressure / air input pressure: 0.3-0.6Mpa (3-6kgs/cm2, 3-6bar)
* Cylinder diameter: 250mm
* Stroke: 100mm
* Spraying distance: 350-400mm
* G.W.:90KGS; N.W.:80KGS
Pressure rate: 69:1
* Max pressure:410bar / 6000psi
* Max.tip size: 0.025
* Paint Delivery / fluid flow: 7L/min (1.7gallon/L)
* Air-compressor pressure / air input pressure: 0.3-0.6Mpa (3-6kgs/cm2, 3-6bar)
* Cylinder diameter: 250mm
* Stroke: 100mm
* Spraying distance: 350-400mm
* G.W.:90KGS; N.W.:80KGS
* Max pressure:410bar / 6000psi
* Max.tip size: 0.025
* Paint Delivery / fluid flow: 7L/min (1.7gallon/L)
* Air-compressor pressure / air input pressure: 0.3-0.6Mpa (3-6kgs/cm2, 3-6bar)
* Cylinder diameter: 250mm
* Stroke: 100mm
* Spraying distance: 350-400mm
* G.W.:90KGS; N.W.:80KGS
Model No. DP6391B | ||||
Fluid Pressure Ratio | 38:1 | 46:1 | 69:1 | |
Delivery (max capacity) | 13.5 | 10.4 | 7 | L/min |
Air Motor Effective Diameter | 250 | 250 | 250 | mm |
Stroke | 100 | 100 | 100 | mm |
App. Air consumption at 5bar | 500 | 500 | 500 | L/min |
Air Operating Pressure Range | 3-6 | 3-6 | 3-6 | bar |
Maximum Discharge pressure | 228 | 276 | 410 | bar |
Air Inlet | 1/2 | 1/2 | 1/2 | inch |

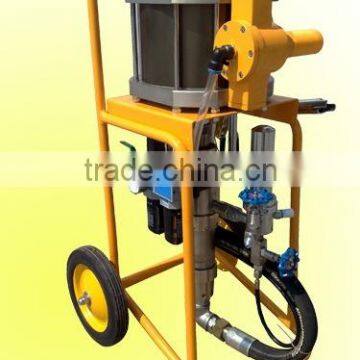

Pneumatic Airless Paint sprayer, Air compressor assisted, piston pump.
