Specifications
1. DP-FA50 Polyurethane foam spray system2. Mixing volumetric ratio: 1:1
3. Max. Output volume: 9.5kgs(21 lbs/min)

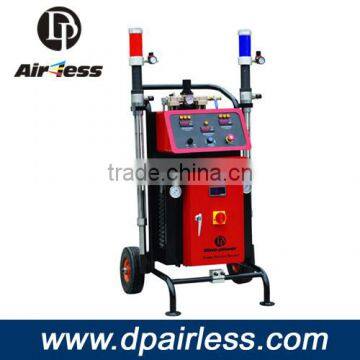

DP-FA50 Polyurethane foam spray system
This DP-FA50 foam insulation sprayer is totally air pneumatic compressor powered, used digital control and easy to use and learn system controls.
Applications:
Polyurehtane foam, 2-components spray, spouting, heat insulation, foam insulate packing, PU foam filling jobs, tank and pip coating, roof insulation. specially designed for A. ISO isocyanate ; B. Polyol two components mixing and spraying.
Feature:
1. Air auto-cleaning spray system, easy for use and easy cleeaning
2. Foam sprayer system equipped with cart and big wheel, for easy moving
3. Stainless steel fluid transfer pump wet parts for corrosion-resistant, with good quality PTFE v-packing included for less maintenance .
4. 10.5kw heater for fast heating and higher temperature.
5. Easy reading control board for easy operating and working.
7. Transfer pump ratio 8:3
8. Contents included in the package:
* Foam sprayer x 1
* Foam injecting / spraying 2 in 1 gun x 1
* TP3 Transfer pump x 2
* Heating hose x 15m
* Whip hose x 1.5m
* Repairing tools x 1set
| Model No. | DP-FA50 |
| Mixing volumetric ratio | 1:1 or 2:1 |
| Max. pressure | 200bar / 2900psi |
| Max. Hose length | 90m |
| Max. Output volume | 9.5kgs(21 lbs/min) |
| Compressor output | ≥ 1000 L/min |
| Compressor pressure | 7-9kgs (100-130psi) |
| Heater power(watt) | 10500w |
| Heating temperature | 0-80 C degree |
| Measurement | 91x91x135cm |
| Weight | 210kgs |
| Voltage / Power | 380V/50HZ,10500W/28A |
| Heated hose+whip hose | 15M + 1.5M |
