Specifications

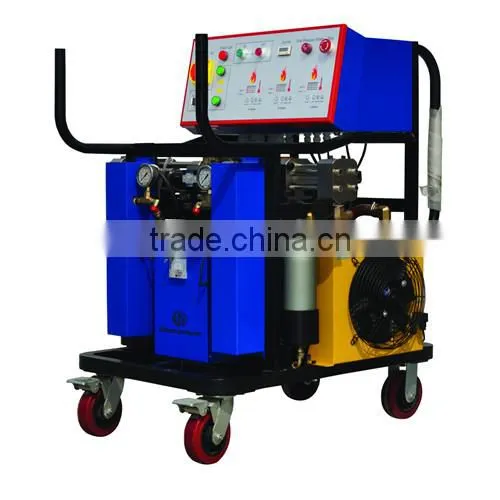

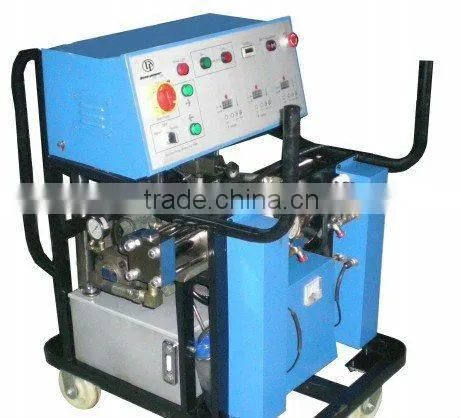

HXP20 Plural Component Equipment hydraulic powered system with best performance, stronger power
* HXP20 Plural Component Equipment is hydraulic powered system with best performance, stronger power, higher pressure and higher volume output. It could
* This HXP20 is designed for 1:1 or 1:2 polyurea spraying ( or polyurethane spraying). This is always your 1# choice if you want to take a professional machine for professional polyurea spraying jobs.
* Accurate temperature control and easy monitoring for result in good quality of spraying polyurea material
* Easy operating, easy cleaning, easy moving, high productivity polyurea sprayer machine.
* Strong power hydraulic motor could be used for your tough and professional spraying jobs with stable performance.
* The pressure could be adjusted from 120 to 240bar.
* The output volume could be adjusted from 4 to 9kgs per minute.
* User friendly machine’s control board which indicate all the data of the heating temperature, pressure, and digital volume meter for easy monitoring of the A+B two components volume.
| Model No. | DP-HXP20 |
| Mode of driving | Hydraulic |
| Mixing ratio | 1:1 (or 1:2) |
| Maximum output volume | 9kgs/min (20 lbs/min) |
| Maximum temperature | 90°C (194°F) |
| Maximum working pressure | 200bar / 2900psi (standard)
(or 240bar / 3500psi available) |
| Heater power | 11 – 15kw |
| Maximum hose length | 90m |
| Power | 3-phase 380V 50Hz 45A |
| Net weight | 150kgs |
| Overall size | 85cm x 88cm x 110cm |
| Packing dimension: | 70cm x 80cm x 125cm |
| Contents in package: | |
| Machine | 1 set |
| Transfer pump | 2 sets |
| Heating hose | 15m (50ft) |
| Heating whip hose | 1.5m (5ft) |
| Polyurea spray gun | 1 set |
| Repair kit | 1 set |
| Cleaning fluid | 1 kg |
| DOP | 1 kg |
