20 Years Guarantee Multifunction Cutting 25-30mm Acrylic and 1-2mm Stainless Steel Laser Cutting Machine 1300*2500mm

Name: 20 Years Guarantee Multifunction Cutting 25-30mm Acrylic and 1-2mm Stainless Steel Laser Cutting Machine 1300*2500mm
Brand: Beyond Laser
Availability: InStock

FOB Price

US$ 8,400 - 23,000 / Set

1 Set(Min. Order)

Port Shenzhen China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	CO2
Applicable Material	Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood	Cutting Thickness	12mm MDF,30mm acrylic
Cutting Area	1300*2500mm	Cutting Speed	36000mm/min
CNC or Not	Yes	Cooling Mode	Water Cooling
Control Software	RD320	Graphic Format Supported	AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Place of Origin	Guangdong, China	Brand Name	Beyond Laser
Model Number	HS-B1325	Certification	CE, ISO, Other, CE, ISO, FDA
After-sales Service Provided	Overseas service center available

Packaging Details

standard seaworthy wooden case

Product Description

Specifications

12mm MDF,25-30mm acrylic,1mm stainless steel cut
ensure 20 years use without deformation
CE,FDA
step motor and belt

20 years guarantee multifunction cutting 25-30mm acrylic and 1-2mm stainless steel laser cutting machine 1300*2500mm

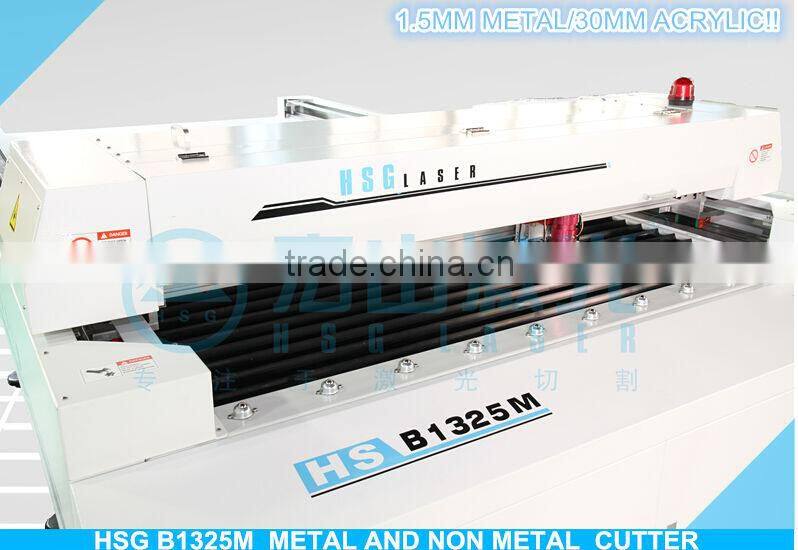

HS-B1325M, this model with step motor,high precision as high as ball screw,but the price is three times cheaper. This model had help us explore most agencies,most of them even once work in famous laser machine factory.70% of our agency told me they had rise their profit by this model

It's our new launched model by the 8 years experienced engineer,it can cut 25-30mm acrylic,1-2mm stainless steel. 80% of advertising industry need this multifunction laser cutting machine 1325M

Model No.:	HS-B1325M
Machine Feature:	1.Italy imported steel-strip belt; precise gear wheels transmitting technology. (The gear wheels move instead of the belt, to prevent sawtooth caused by vibration from the long belts.) 2. Patent upper blowing system together with normal lower blowing systems;almost 100% dust can be extracted. 3. Precision as high as ball screw guide laser bed, ensures 20-year life without deformation. 4. Firm machine body heat treatment, high temperature annealing to eliminate its machine stress, quadrate pipes jointing and gantry milling. Cutting precision: ±0.1mm. 5.Auto focus special for metal sheet cutting(stainless steel,carbon steel...)
Technical Data:	Model: HS-B1325M Gross Weight: 1200kg Laser Tube Power: 150 watt Co2 laser/GSI laser tube Net Working Place: 1300 x 2500 mm Packing Size: 3670×2070×1380mm. Media Dimensions: 1730 x 1180 x 1060 mm Interface USB Cutting Thickness: 25-30mm acrylic cutting,1-2mm stainless steel cutting Standart Lens: 2 inch Highest running speed:48m/min Controlling Motor: Step Motor Graphic formats supported: CDR, BMP, PLT, JPEG, DXF, DST Power: 220V, 6A, 50/60Hz Working Plate: Honeycomb Compresor : Avoid to flameable and obtain to cooling Gross Power: ≤ 1500W Repeated Position Precision: ±0.01mm Cutting precision: ±0.1mm.Cutting D: 2mm cirles at speed of 15mm/s. Focus Lens: 100mm water chiller: CW5000 Min.Media Thickness: 2mm circle fast speed cutting Running belt: 60mm Italian
Standard Accessories:	1) Laser Engraving software With Teaching Video(English Version) 2) User Manual (CD) 3) Industry water cooling system 4) Air exhaust fan 5) Air Pump 6) Communication cable 7) 3 Reflect optics (installed in the machine) 8) 1 Focus optics (installed in the machine) 9) 1 Laser tube 10) Other tools
Application industry:	Advertisement industry: organic glass cutting, sign sculpture, double color boards sculpture, Acrylic engraving,stainless steel cutting. Leather and clothing: in genuine leather, synthetic leather, artificial leather, cloth on the complex characters and graphics of engraving and cutting, carve patterns or designs on woodwork, hollow out, computer embroidery cutting processes. Gift industry: in the wood, bamboo, marble, double color boards, density board, crystal, leather and other materials beautifully carved on the words and patterns. Cardboard printing: sculpture products, used for carving the rubber board, double board, plastic board sculpture and cutting. Other industries: model making, decoration, the product packaging engraving .
Application Materials:	Wood,Paper,cloth.bowlder,Bamboo,jade,marble,granite,acrylic,crystal,leather, plastic,paper,rubber,ceramic,glass,MDF,PVC,rubber sheet,stainless steel and other non-metal materials and metal material cutting
Warranty and service:	1.300 Days Warranty, Yet strict incoming tube test. 2. Only circle laser beam is qualified. 3. Power Meter shows the min. & max. tube power . Average power will be choosen for assembling into machine while the unqualified send back to supplier. 4. Eight Hours Continious Test with Every 7 Seconds break to prevent any possible error.

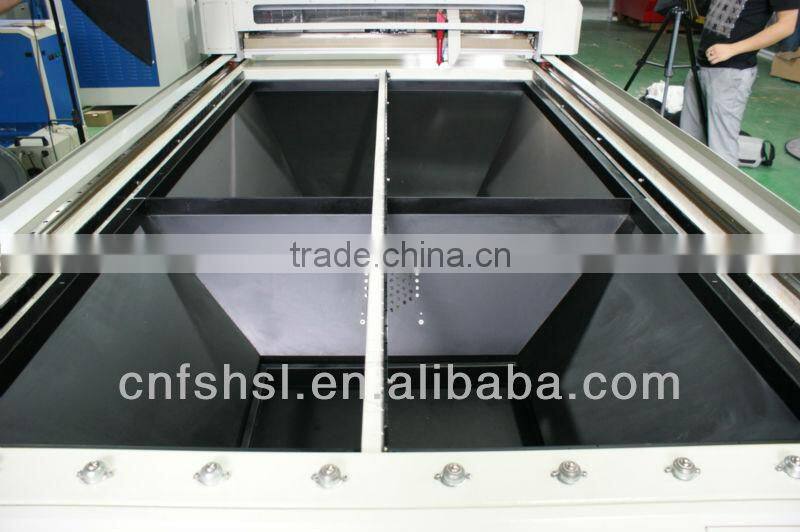

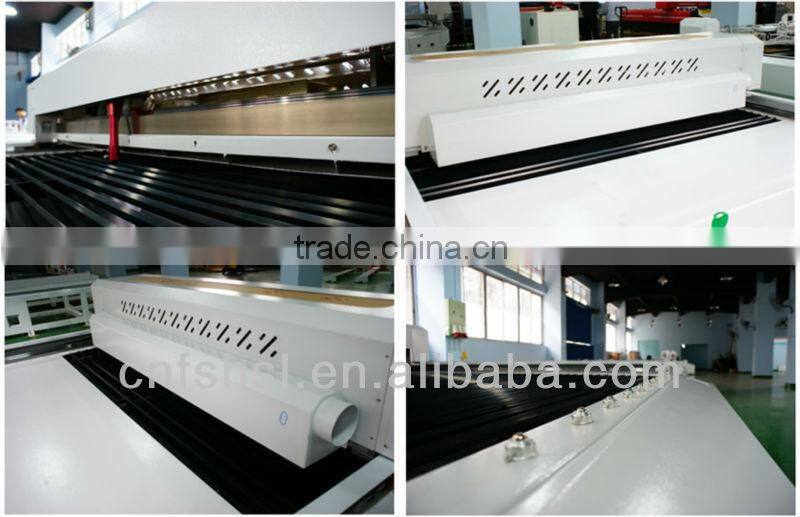

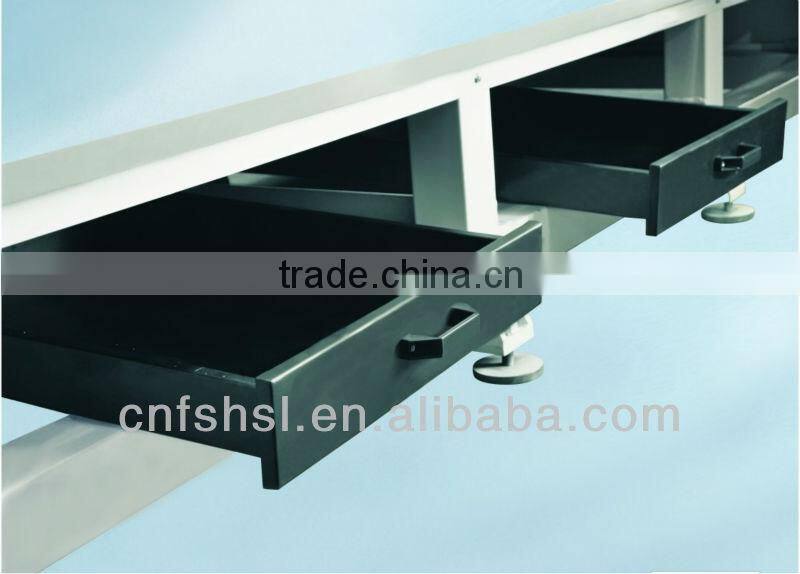

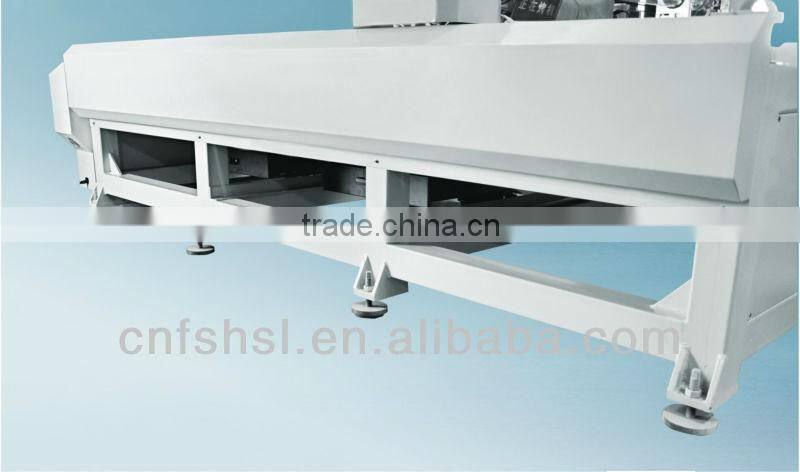

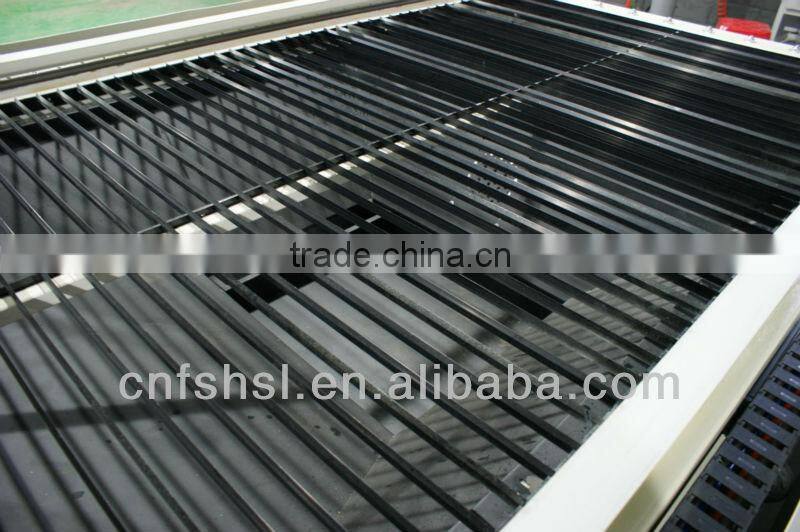

Machine Details:

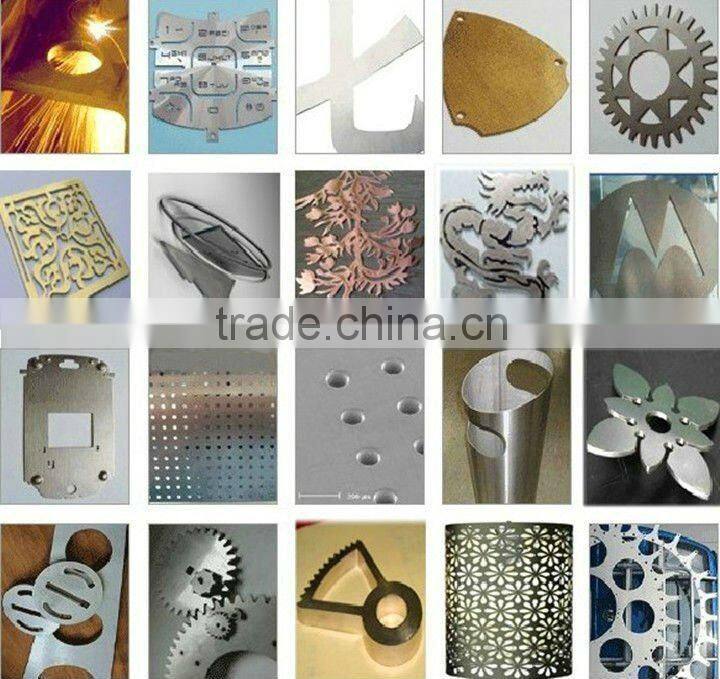

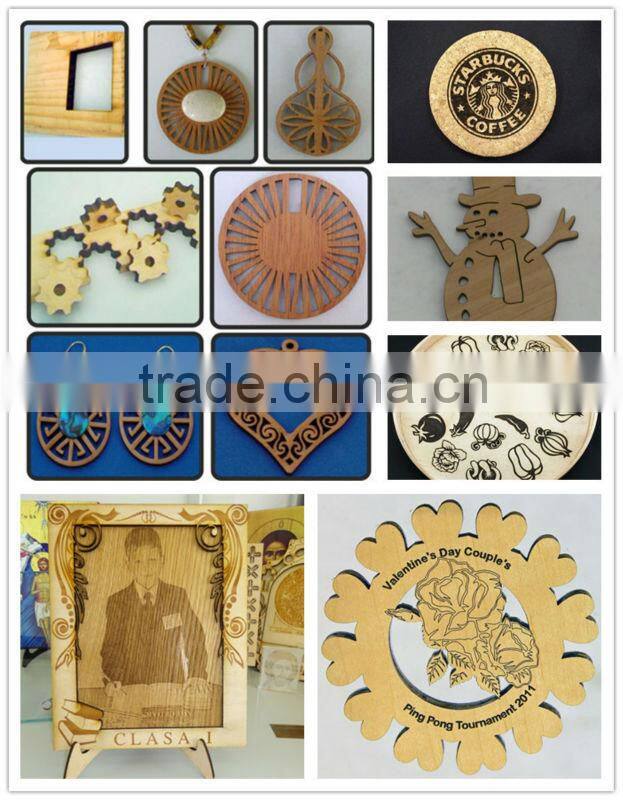

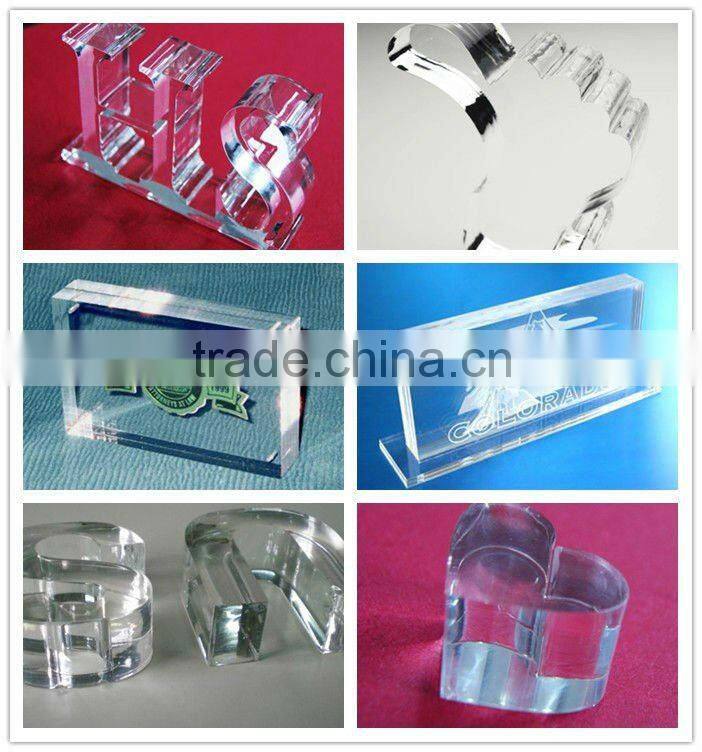

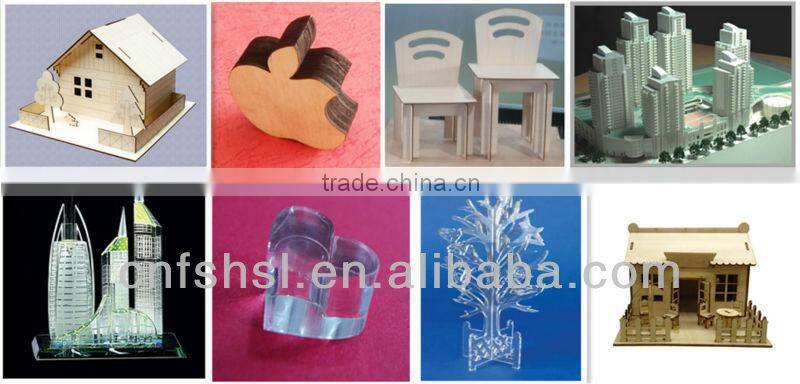

Samples:

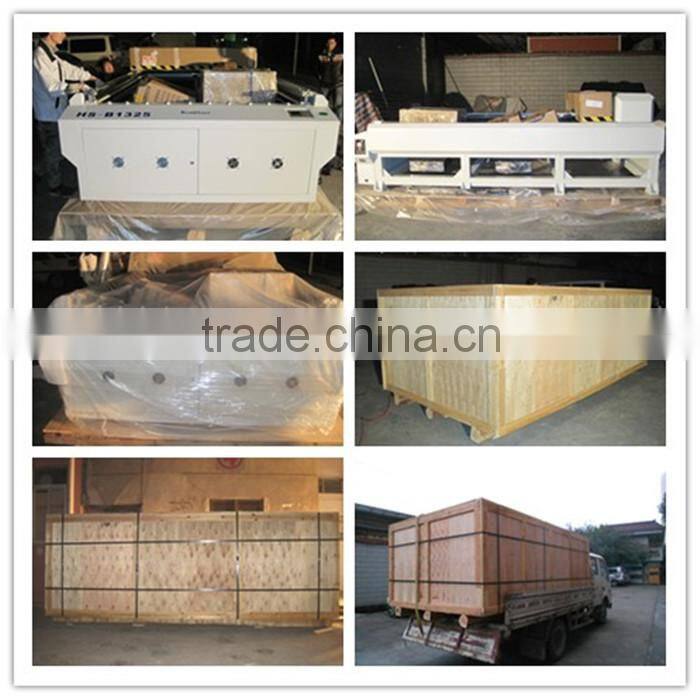

Package:

China Beyond Laser specialized in manufacture laser cutting machine and laser engraving machine,with the good quality and the most advantageous price. All parts will

be tested by strictest quality control standard. Contact us,we can help you expand

your market!!!
