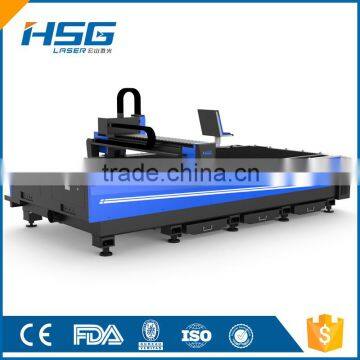

HSG Small-Scale Metal Laser Cutting Machine for sale HS-M3015C
| Product name | Hot sale 500 watt laser cutter for metal HS-M3015C |
| Working table | 3000*1500 mm |
| Laser power | 500 w |
| Weight | 5000 kg |
| Talbe load | 500 kg |

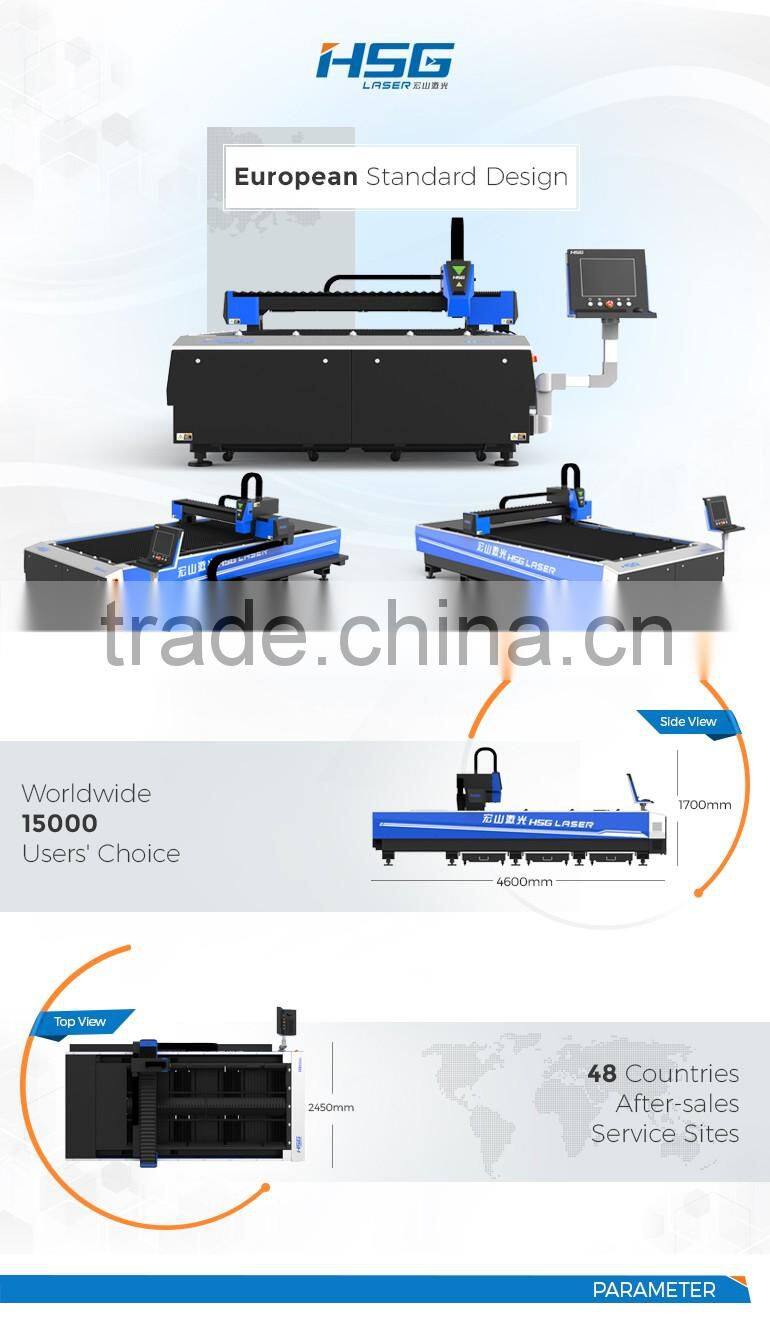

| Machine body size | 4600*2450*1700 mm |
| Max.Acceleration Speed | 0.5G |
| Transmitting System | Imported ball screw |
| Max running speed | 40m/min |
| Positioning Accuracy | 0.05mm |
| Working Power Supply | AC380V ±10% 50HZ |
| X/Y PositionaI Accuracy | ±0.05mm |
| Running Temperature | 0°C-40°C |
| Max Acceleration | 0.5G |
| Formats | BMP,DXF,PLT,DST,CDR,GPEG |
1. The fiber laser series are new line of metal precise processing equipment powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of a conventional C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting sheets of stainless steel, mild steel etc.
2. The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser equipment. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit will consume little to no energy when not active.
3. Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.

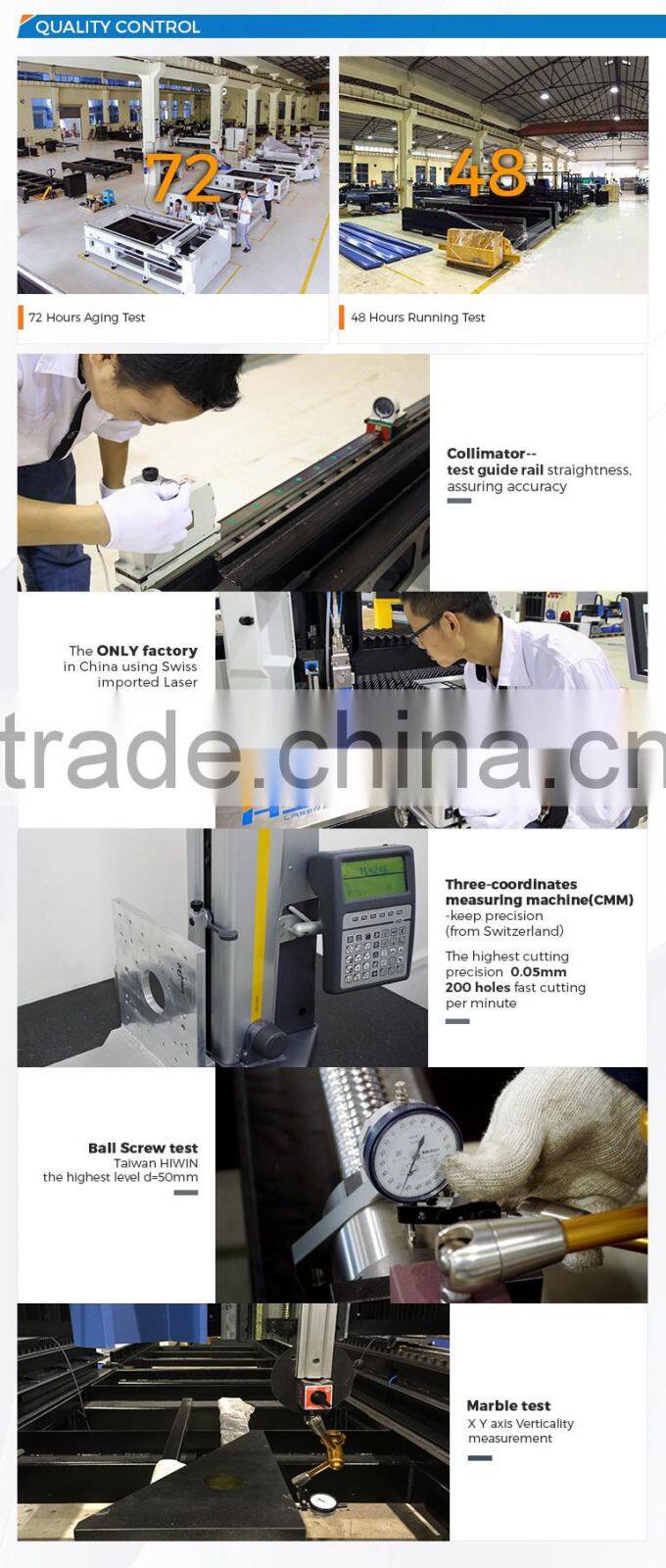

All parts are tested strictly with the following steps:
1) Guide rail precision test: Collimator testing:use the 1401-type bidirectional precise collimator for the surveying and mapping as the measuring method for the straightness, flatness and perpendicularity of the laser cutting bed guide rail.
2) Electromagnetic EMC test: Testing the electromagnetic interference with laser cutting machine oscilloscope to ensure the laser cutting machines running stably.
3) Laser interferometer: Ensuring the linear cutting of the whole working table to be on the same horizontal plane.
4)Handheld power meter measurement: The laser power testing ensures the best cutting effect of laser cutting machine.
After being assembled, we will test machines by cutting 2mm circles. If the circles cut by any of the machine are not round or at inaccurate size, the machine is not allowd to be delivered.
Our 500W / 1000W fiber laser cutter with ball screw structure can be fit into a 20GP container, saving up to 2/3 shipping costs for customers!
HSG already has 10 years experience in laser cutting industry, to cooperate with HSG, you won't loose but earn from us!
