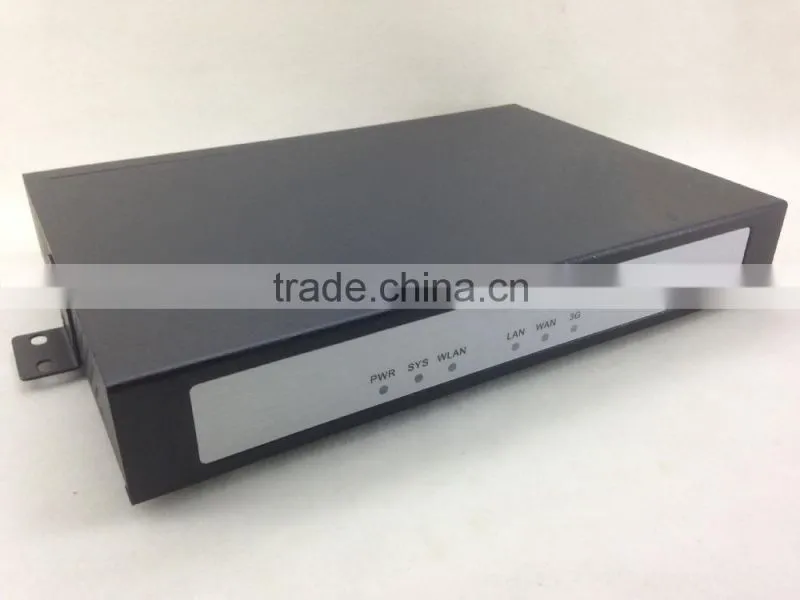

New!! High Power public WIFI hotpot access/
access point 4G Outdoor Wireless CPE network routers supporting various network systems
1) Large-capacity hard disk local storage
2) Ads promotion tool
3) Support various business modes
4) Vehicle-mounted, compression resistance, anti-vibration design
5) Support maximum 200 people to visit the network on line
6)CPU:MT7620A/600Mhz, Flash:16MB(max32MB), DDR2:128MB(max256MB)
7)Supports Open WRT
8)Adopt 2.4GHz 2T2R 300Mbps technology and meet multi-user connection application
9)Provide Mini PCIE interface and SIM card slots, support user to expand built-in 3G/4G application
10)Support 2pcs 100Mbps LAN/WAN interface, meet different application
11)Provide TF card slot, suport 32G local storage, for expanding multimedia application
Terminal performance
l Adopt high-performance ARM platform, it has the capability of accessing 100 people to watch video at the same time
l Powerful WIFI accessing capability, it can access 100 people and provide 1M speed for each person at the same time.
l Expanded 3G/4G mode, support multiple module at the same time
l Support GPS
l Optimization design for vehicle application, aluminum case, no mechanical rotating parts, anti-vibration and water-proof design, fully meet bad weather and environment condition
l Vehicle power design, can use under bad power supply condition
l Support the use’s network speed limits
Product Parameter |
Specific Content |
||
H/W platform |
CPU |
MT7620A 600MHz |
|
TF Card |
Support the maximum 32G TF card |
||
RAM |
DDR2 128MB |
||
Flash |
16MB SPI Flash |
||
3G/4G |
WCDMA/EVDO/TD-SCDMA/TDD-LTE/FDD-LTE optional |
||
WAN |
1x100M Self-adaptive |
||
LAN |
1x100M self-adaptive |
||
The quantity of Connection |
Up to 32 units |
||
Modulation |
OFDM: BPSK, QPSK, 16 QAM, 64QAM DSSS: DBPSK, DQPSK, CCK |
||
Work mode |
AP mode |
||
Frequency scan |
Support site scan and channel detection, the real time status of signal display |
||
antenna |
2X2 MIMO |
||
Security |
Encryption type |
WPA |
|
Security |
Client isolation, hiding SSID, VLAN, VMSSID |
||
ACL |
Visit the client MAC address filtering of control list |
||
QoS |
Internet up to 10K/user(can be set) Intranet no limit |
||
Black/white list |
Control the white/black list for the export of Internet, effectively reduce the network cost |
||
Advertisement |
Authentication mode |
Unauthenticated APP local authentication (need to work with APP) SMS authentication (need to the background server support) User name/code authentication (need to the background server support) |
|
Ads form |
Compelling portal website Local Web embedding ads APP embedding ads |
||
Terminal operating system |
Open WRT |
||
Content service |
Local |
Support users accessing to local content |
|
Internet |
Access internet website by 3G/4G |
||
Local content update |
Support the remote update of media content server Support the data content of local TF card updated automatically Support the bus station WIFI content updated automatically (optional) |
||
Network management |
supervisor mode |
WEB |
|
Updated backup |
Support the local and remote online upgrade firmware; configuration files backup/importing function |
||
Remote management |
Support Device Cloud management platform (optional) |
||
User management |
QoS |
Based on Client IP or MAC with broadband control function |
|
WIFI |
protocol standard |
IEEE 802.11 b g n |
|
Working frequency |
2.4-2.4835GHz |
|
|
Basic function |
Wireless switch SSID broadcast switch; Chinese SSID 2.4GHz channel selection: 1-13; 5GHz channel selection: 149, 153, 157, 161, 165; Frequency bandwidth optional: 20MHz, 40MHz, automatic |
||
Data transfer rate |
11n: 300/270/243/216/162/108/81/54/27Mbps; 135/121.5/108/81/54/40.5/27/13.5Mbps; 130/117/104/78/52/39/26/13Mbps; 65/58.5/52/39/26/19.5/13/6.5Mbps; 11g: 54/48/36/24/18/12/9/6M(adaptive); 11b: 11/5.5/2/1M(adaptive) |
||
Transmission distance |
200m without blocking |
||
RF output power |
802.11n:15dBm for OFDM mode 802.11g: 17dBm for OFDM mode 802.11b: 20dBm for CCK mode |
||
Receiving sensitivity |
300M_2.4G: -70dBm; 270M_2.4G: -70dBm; 195M_2.4G: -71dBm; 130M_2.4G: -74dBm; 54M_2.4G: -79dBm; 6M_2.4G: -94dBm |
||
Working mode |
Routing mode,AP/Client mode, Repeater mode,WDS mode |
||
Wireless security |
Wireless MAC address filtering Wireless security function switch 64/128/152 bit WEP encryption; WPA-PSK/WPA2-PSK, WPA/WPA2 security regime; WPS QSS |
||
Interface |
Ethernet |
Two adaptive and fast Ethernet interfaces of separate gigabit NICs |
|
antennas |
External WIFIN-Female antenna interfaces, 3G antenna interfaces Main, AUX |
||
Power |
10mm three lines aviation plug |
||
LED |
Power indicator light System indicator light 3G indicator light WIFI indicator light Ethernet port indicator light TF card identification light |
||
Cellular network |
The default no cellular network, customized TDD-LTE, WCDMA, EVDO, TD-SCDMA |
||
TF card |
Support maximum 32G TF card, using for local data content updated automatically |
||
SIM card slot |
1* SIM slot |
||
Button |
Reset/WPS button |
||
Power |
Power consumption |
Maximum 10W |
|
Power |
9-36V/1A DC input |
||
physical characteristics |
Size |
200mmx138mmx34mm |
|
Weight |
Primary device 656g |
||
Product housing |
metal plate housing, rust-proof and sunscreen |
||
|
Environmental characteristics |
Work temperature |
Work temperature:-10℃ to 60℃(customized the heating module for the northern environment) Storage temperature: -40℃ to 90℃ |
|
operating humidity |
Work temperature: 10% to 90% RH, no condensation Storage temperature: 5% to 90% RH, no condensation |
||
Level of protection |
IP51 |
||
Product accessories |
Antenna accessories |
2X 3G/4G antenna, varies according to different configuration 2X WIFI antenna, The quantity varies according to different configuration |
|
Power accessories |
DC12V/1A power adapter (optional) |
||
It can be used for public WIFI hotpot access, such as bus, bus station, bus stop, bus shelter, coach,train,train station, street lamp,city square, plaza, etc.
