12v 1a dual ports passive poe injector
Features:
1.)LED indicators power input indication POE adapter
2.)Distance up to 100 meters
3.)Carrier class power over ethernet system
4.)Auto ranging power supply/ inserter
5.)Built-in ethernet surge protection to prevent equipment damage
6.)Overload and short circuit protection
7.)Minimum cross talk and insertion loss
8.)Advanced switching technology runs cool
9.)Powers clients which accept power on unused ethernet pins 4,5,7,8
10.)Current indicator (CI) option available

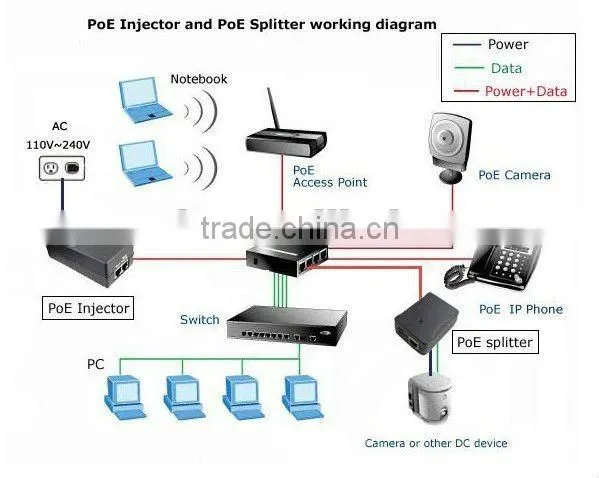

Applications:
(1)Remote routers, access points and bridges
(2)Remote networking equipment
(3)SOHO equipment
(4)IP phone systems
Advantages:
1. Intelligent protection system design,outstanding perfomance,protable and reliable design.
2. High efficiency electrical conversion.
3. Have passed the Quality authentication.
4.OEM or orders with sample are welcomed!!!
Parameters:
Technology Specifications | |
Input Voltage |
90-264V AC |
Input Frequency |
47-63Hz |
Output Power |
12W 24w |
Inrush Current |
15A/115V AC and 20A/230V AC |
Leakage Current |
0.25mA at 254V AC 60 Hz |
LED Display |
Input Power(red) Output Power(green) |
Over Voltage Protection |
Yes |
Over Current Protection |
Yes |
Short-Circuit Protection |
Yes |
Hold-up Time |
Min16ms: 120V AC max load |
Transient O/P Voltage Protection |
Max 60V |
Operating Temperature |
0-40°C |
Storage Temperature |
-25-+65°C |
Humidity |
5%-95% unfrozen |
Insulation Resistance |
Primary to secondary: >10mΩ, 500V DC |
