Specifications
1.GYTA53 anti-rodent fiber optic cable2.Double jcket
3.Grade A fiber
4.PBT loose tube
5.PE sheath

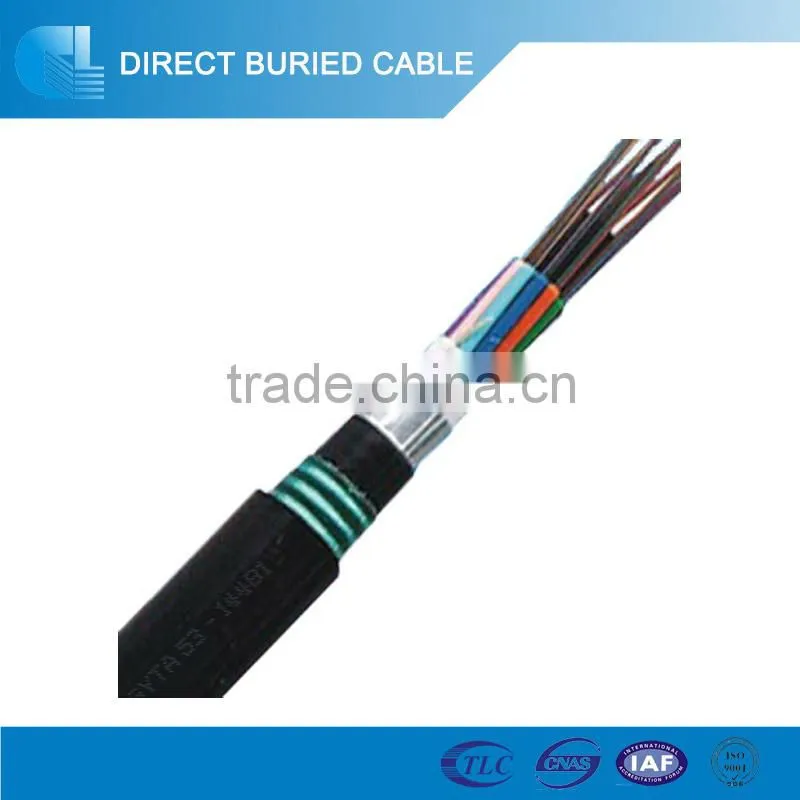

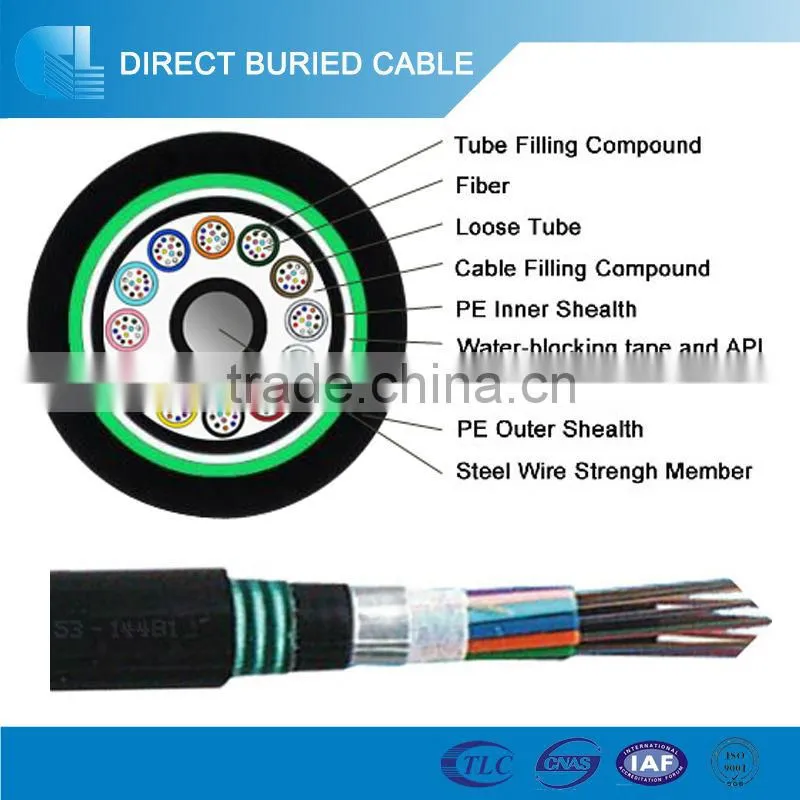

DOUBLE AROMRED DIRECT BURIED FIBER OPTIC CABLE(GYTA53)
1) Steel wire strength.filler protect tube fiber.steel tape armored
2) Good ultra violet radiation resistant property.
3) Double sheath and Double armored..Good moisture-resistance.
APPLICATION
1) Adopted to Outdoor Direct buried,Aerial, Duct installation
2) Access network and local network in high electromagnetic interfering places.
Cable Information
| No. of Tube | 1, 2, 3 or 4Tubes | |||||||||
| No. of fiber/Tube | 6,8 or 12 Fibers | |||||||||
| No. of fiber | 2~144 Fibers | |||||||||
| Approx. Cable Diameter | 13.4~20.2mm | |||||||||
| Loose Tube Material | PBT | |||||||||
| Filling compound (Tube) | Thixotropic Jelly | |||||||||
| Strength Member | Steel Wire (Nom.1.2mm Dia. * 2c) | |||||||||
| Water Blocking | Water Swell able Material | |||||||||
| Corrugated Steel Tape | Nom. 0.25mm Thick. | |||||||||
| Outer Sheath | Nom. 2.7mm Thick. Black MDPE | |||||||||
Mechanical & Environmental Performance
| Tensile Strength | Long Term: 600N, Short Term: 1500N | |||||||||
| Crush Resistance | Long Term: 300N, Short Term: 1000N | |||||||||
| Bending Radius | Long Term: 10D, Short Term:20D | |||||||||
| Storage Temperature | -20~+60°C | |||||||||
Optical Fiber Performance
| Fiber Type | G.652D,125.0±1.0µm | |||||||||
| Mode Field Diameter | 9.2 ± 0.2μm at 1310 nm | |||||||||
| Cladding Diameter | 125 ± 1μm | |||||||||
| Cladding Non-Circularity: | ≤ 1% | |||||||||
| Coating Diameter | 245 ± 10μm | |||||||||
| Attenuation Coefficient | ≤ 0.36dB/km at 1310nm, ≤ 0.22dB/km at 1550nm | |||||||||
| Chromatic Dispersion | ≤3.5ps/nm/km at 1285~1330nm, ≤18ps/nm/km at 1550nm | |||||||||
| Zero Dispersion Wavelength | 1300~1322nm | |||||||||
| PMD Coefficient | ≤ 0.2ps/√km | |||||||||
NOTE:
3. Specially designed Cable structure is available on request.

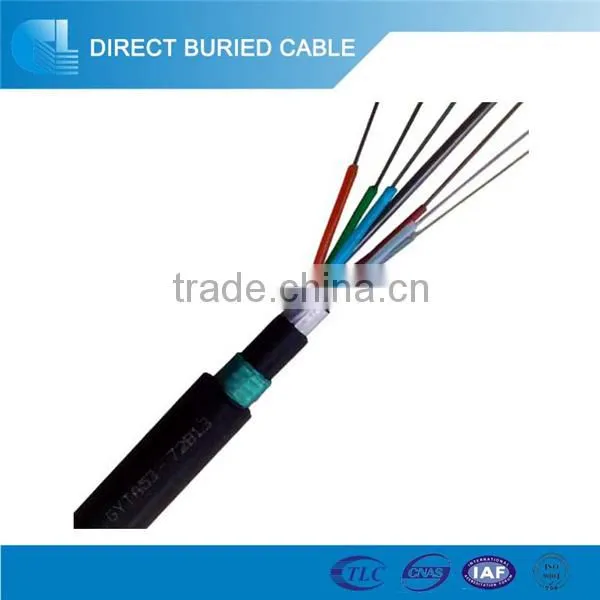

Photo show:
1. Standard Packaging:
Rolled by wooden wooden drums. 2000m to 6000m/drum or other required. 250KG~460KG/KM
2. Sheath mark
The following printing(white hot foil indentatioin)is applied at 1-meter intervals.
a. Supplier: Guanglian or as cuctomer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length marking in meters
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C and Western Union, just choose what you like
3. Delivery time: Generally 3~7 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely
Quote Request Information
1. Fiber Count: 2 to 144 Fibers
2. Fiber type: Single mode: G652D, G655,G657. Multimode: 50/125,62.5/125. OM3
3. Order Quantity
Hunan guanglian photoelectricity technologies Co.,Ltd is the professional enterprise on fiher optical cable at widely range of outdoor fiber optic / aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable /Adss and OPGW for power system transmmision.
1. The Gate of Factory
2. Raw Material
3. Production Line
4. Fiber Optic Cable Testing
Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber Cable, mechanical characteristics can be tested on testing machine for the particular test.
5. Wooden Drums
♦ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to ur requirment and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
