4 core figure 8 structure jacket interconnect cable GJFJ8V

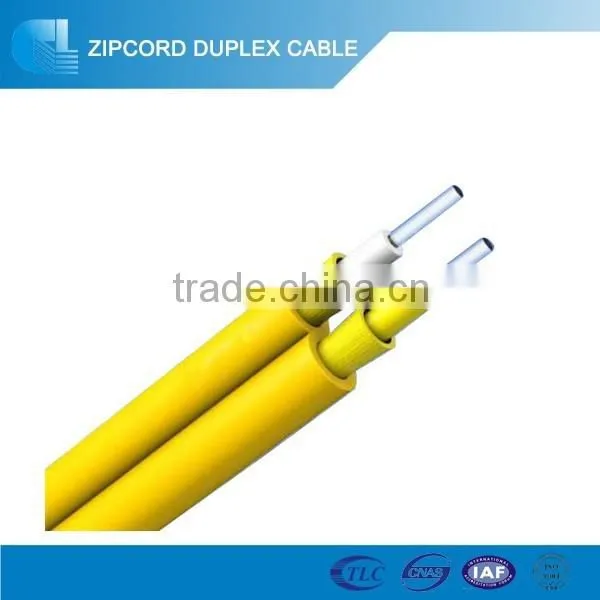

Description:
ZCC zip interconnect cable use 900um or 600um flame-retardant tight buffer fiber wrapped with with a layer of aramid yar as strength
member units, and the cable is completed with a figure 8 PVC or LSZH jacket.
Application:
1.Adopted to indoor distribution.
2.As pigtail of communication equipment.
3.Suitable for communication equipment served.
4.Can be installed conveniently and operated simply.
Characteristics:
1.Two single-fiber as basic unit .flat twin configuration.
2.Single-cable with independent strength member.
3.Tight buffer.(900um or 600um)
Parameters:
Fiber Type |
62.5um (OM1) (850nm/1300nm) |
50um (OM2) (850nm/1300nm) |
50um (OM3) (850nm/1300nm) |
SM (850nm /1300nm) |
Attenuation (Max) (dB/Km) |
3.5/1.5 |
3.5/1.5 |
3.5/1.5 |
0.8/0.6 |
|
Attenuation of Typical Values (dB/Km) |
3.5/1.5 |
3.0/1.0 |
3.0/1.0 |
0.4/0.3 |
|
LED Bandwidth Min (Mhz.Km) |
200/500 |
500/500 |
1500/500 |
----- |
Remark |
Other requirements can be provide. |
|||
Optical Characteristics | ||||
Fiber Type |
Multimode |
G.651 |
A1a:50/125 |
Graded-index fiber |
A1b:62.5/125 | ||||
Single-mode |
G.652(A,B,C,D) |
B1.1:Conventional fiber |
||
G.653 |
B2: Zero dispersion shifted |
|||
G.654 |
B1.2 :Cut-off wavelength shifted |
|||
G.655 |
B4: Main technical data for positive |
|||
Company Profile:
Hunan Guanglian Photoelectricity Technologies Co., Ltd is a professional enterprise on fiber optic cable at widely range of outdoor fiber optic
/ aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable /ADSS and OPGW for power system transmission.
Our Advantage:
1. Professional cable manufacturer.
2. About 10 years experiences in cable industry.
3. Best delivery time.
4.MOQ is 1kilometer
5.High quality with competitive price
6.Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.

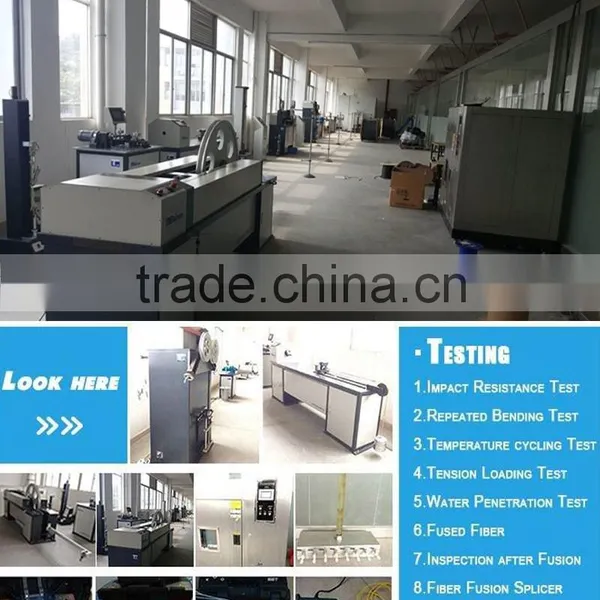

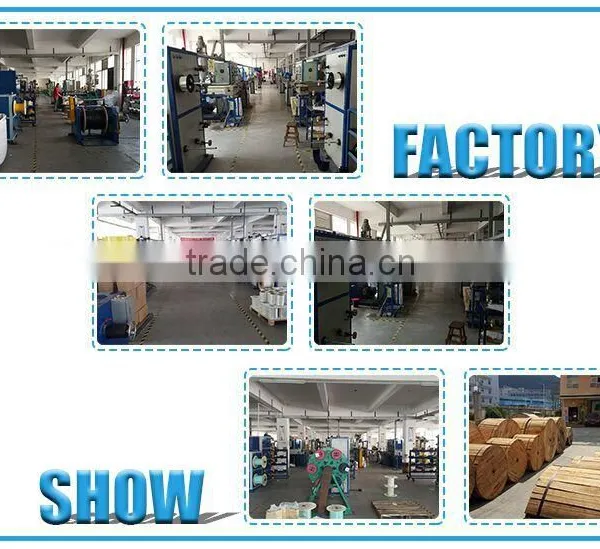

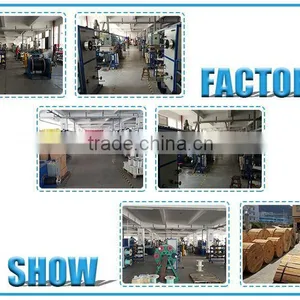

Factory information:
Factory Size (ters): |
1,000-3,000 square meters |
Number of Production Lines: |
4 |
Number of R&D Staff: |
5 - 10 People |
Number of QC Staff: |
5 - 10 People |
Management Certification: |
ISO9001 |
Contract Manufacturing: |
OEM Service Offered Design Service Offered |

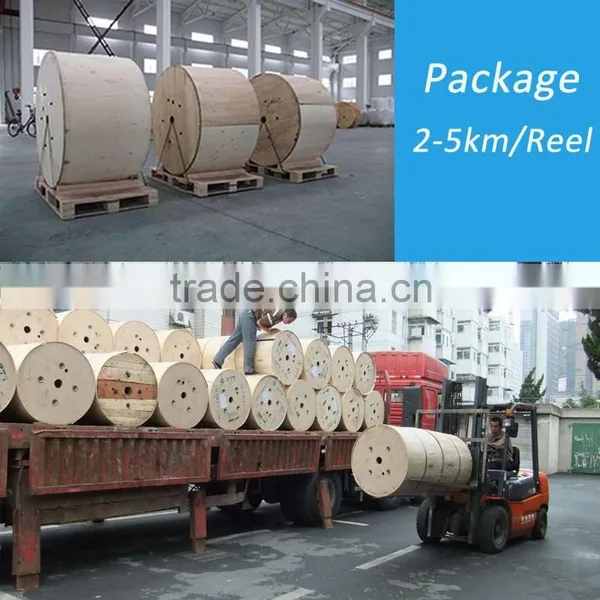

Packing and shipping:
Packaging |
Wooden drum, 2000m to 6000m/drum or as you required |
Shipping methods. |
By sea or by air |
|
Sheath mark applied at 1-meter intervals |
a. Supplier: Guanglian or as customer required |
|
b. Standard Code(Product Type, Fiber Type, Fiber Count) |
|
c. Year of manufacture |
|
d. Length marking in meters |
Certificate:
