Self supporting figure 8 FRP strength member fiber optic cable price
- 360 Kilometer / Kilometers per Month
- SHENZHEN Shanghai
- T/T D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Hunan, China | Brand Name: | GL | Model Number: | Fiber Optic Cable |
Type: | Coaxial |
Product Description
Self suppoting figure 8 FRP strength member optical fiber cable
1) The type of this fiber with single-mode G652 G655 G657 or multimode 50/125, 62.5/125. etc, with a loose tube which is made of high modulus plastic

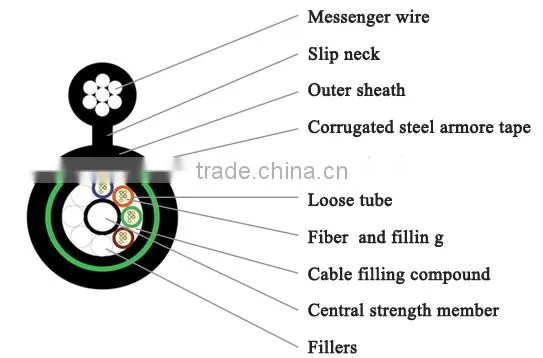

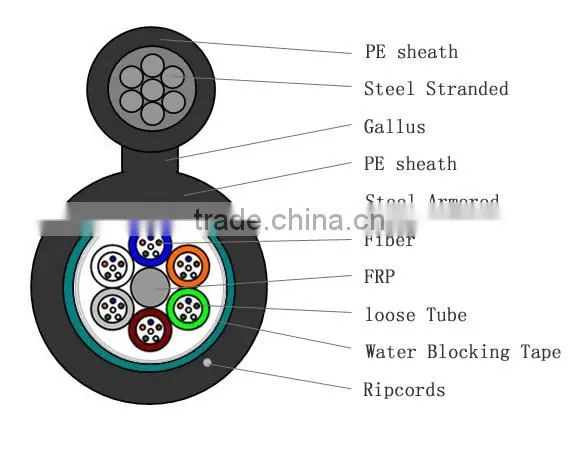

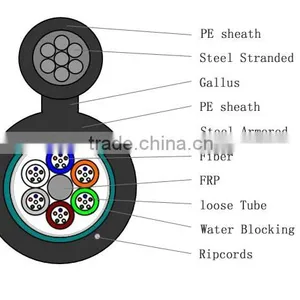

2) Figure 8 self-supporting cable, 2~144 fibers, central strength member (metallic or non metallic ), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, covered by copolymer coated steel tape, PE outer sheath,the suspension line (1.2x3=3.6mm), 7*1.0mm steel wires stranded together.
3) Detailed specification on your request.
APPLICATION
1) Adopted to areial self-supporting installation
2) Access network and local network in high electromagnetic interfering places.
CABLE INFORMATION
Mechanical and physical parameter | ||
Item | Description | |
Tensile Strength | Long Term | 3000N |
Short Term | 8000N | |
Crush Resistance | During Installation | 2000N/100mm |
During Operation | 800N/100mm | |
Temperature Range | During Installation | -10~+50 |
During Operation | -40~+70 | |
Minimum Bending Radius | During Installation | 20 times of cable diameter |
During Operation | 10 times of cable diameter |
Note:
3. Specially designed Cable structure is available on request.

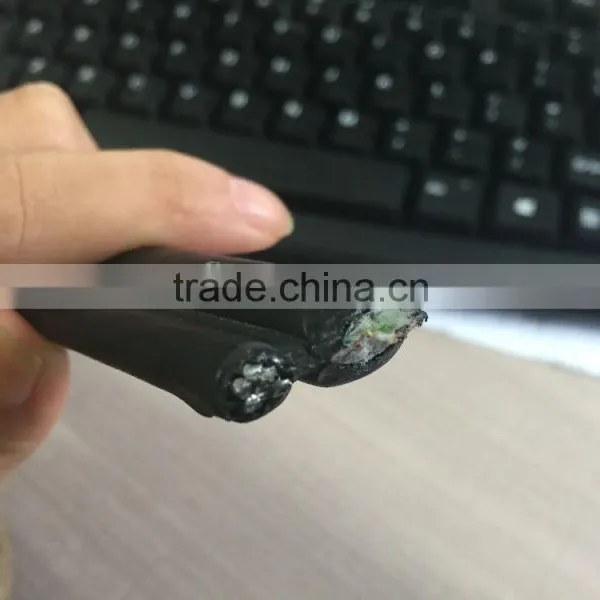

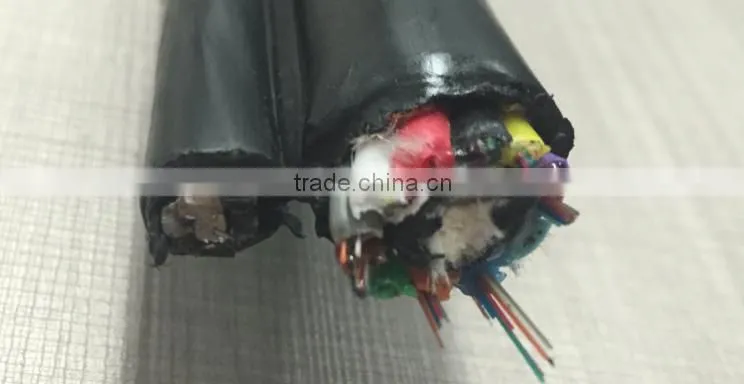

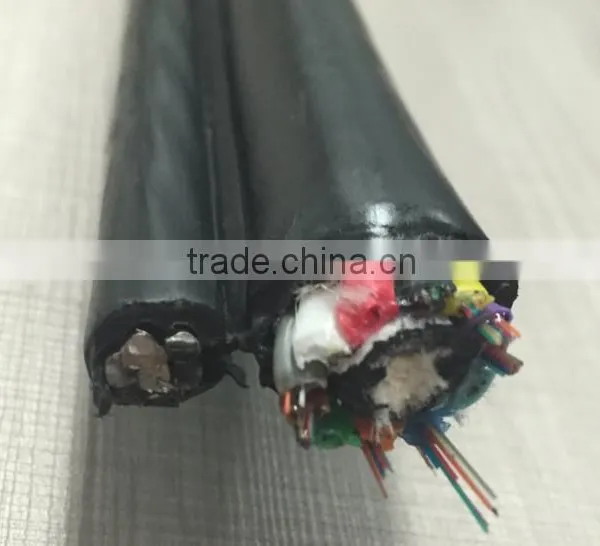

Photo show:

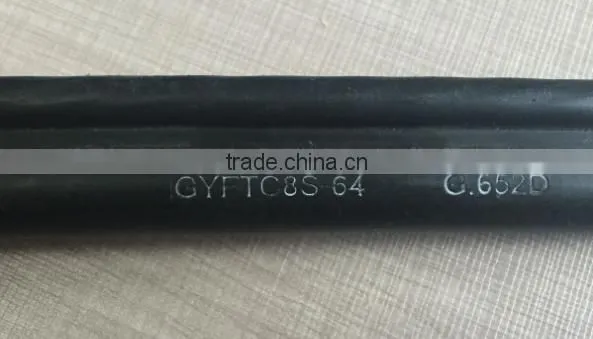

GY means the fiber optic cable used for outdoor
F means the strength member is non metallic.
8S means the figure 8 fiebr optic cable
Packing Details | ||||||||||
Standard Packaging | Reeled by wooden Drum suitable for long-distance shipment | |||||||||
Normal cable factory length | Standard delivery length is 3000m with a tolerance of 5% or other required | |||||||||
Cable Weight | Approx. 120 kg/km ~ 200 kg/km | |||||||||
Sheath Marking | Cable type, Fiber Counts, Name of Manufacturer, Year of Manufacturing, Cable Length in meter |
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C and Western Union, just choose what you like
3. Delivery time: Generally 3~7 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely
Hunan guanglian photoelectricity technologies Co.,Ltd is the professional enterprise on fiher optical cable at widely range of outdoor fiber optic / aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable /Adss and OPGW for power system transmmision.
Raw Material

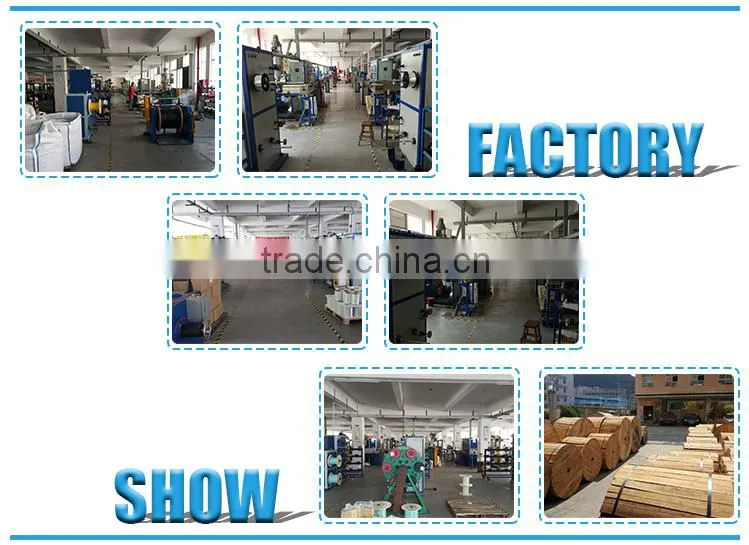

Production Line

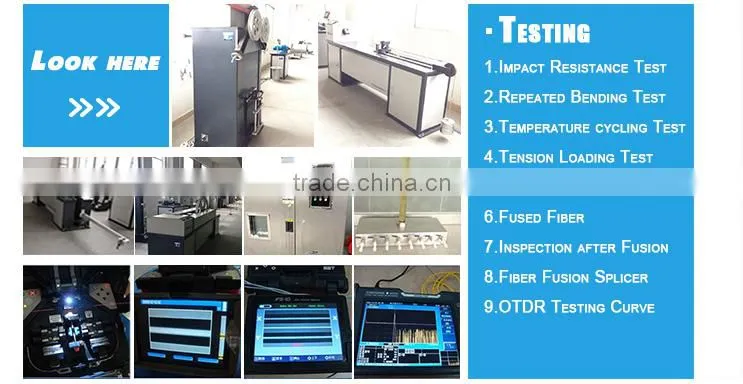

4. Fiber Optic Cable Testing
Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber Cable, mechanical characteristics can be tested on testing machine for the particular test.
