Specifications
Outdoor optical fiber cable GYXTC8S1.Figure 8 self-supporting
2.Stainless steel
3.Aerial duct and bured

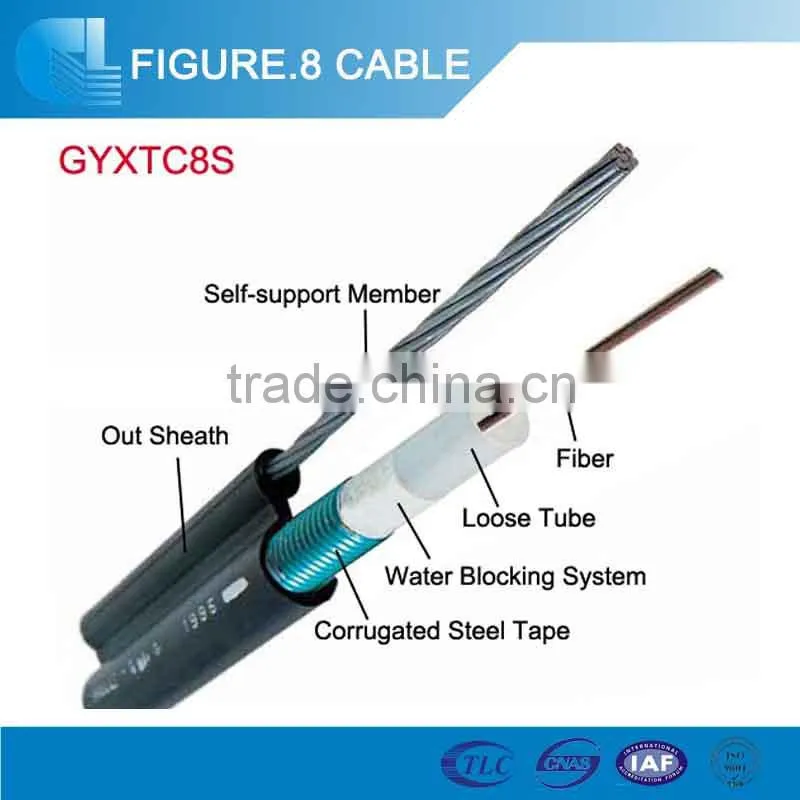

Figure.8 Cable with steel tape or aluminum tape(GYXTC8S/GYXTC8A)
1) The type of this fiber with single-mode G652 G655 G657 or multimode 50/125, 62.5/125. etc, with a loose tube which is made of high modulus plastic
2) 2~12 fibers, jelly filled, fiber contained central loose tube, water blocking jelly,copolymer coated PSP or APL, PE outer sheath, fig 8 type, one steel wire suspension line
3) This cable is light, flexible, easy for the laying and it is one of products for FTTH solution.
APPLICATION
1) Adopted to areial self-supporting installation
2) Long-distance communication, local trunk line, CATV & computer networks system.
CABLE INFORMATION
| Cable type | Cable diameter mm |
Cable weight Kg/km |
Tensilse Strength Long/Short term N |
Crush Resistance Long/Short term N |
| GYXTC8S-2-8 | 8.1×16.9 | 117 | ≥2000/≥6000 | ≥300/≥1000 |
| GYXTC8S -10-12 | 8.1×16.9 | 121 | ≥2000/≥6000 | ≥300/≥1000 |
| Optical Characteristics: | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A,B,C) | B1.1:Conventional fiber | ||
| G.652D | B2: Zero dispersion shifted | |||
| G.655 | B1.2 :Cut-off wavelength shifted | |||
| G.657(A1,A2 ,B3) | B4: Main technical data for positive | |||
| dispersion shifted single-mode fiber | ||||
Note:
3. Specially designed Cable structure is available on request.
Photo show:
| Packing Details | ||||||||||
| Standard Packaging | Reeled by wooden Drum suitable for long-distance shipment | |||||||||
| Normal cable factory length | Standard delivery length is 3000m with a tolerance of 5% or other required |
|||||||||
| Cable Weight | Approx. 117 kg/km ~120kg/km | |||||||||
| Sheath Marking |
Cable type, Fiber Counts, Name of Manufacturer, Year of Manufacturing, Cable Length in meter |
|||||||||
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C and Western Union, just choose what you like
3. Delivery time: Generally 3~7 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely
Quote Request Information
1. Fiber Count: 2 to 144 Fibers
2. Fiber type: Single mode: G652D, G655,G657. Multimode: 50/125,62.5/125. OM3
3. Order Quantity
Hunan guanglian photoelectricity technologies Co.,Ltd is the professional enterprise on fiher optical cable at widely range of outdoor fiber optic / aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable /Adss and OPGW for power system transmmision.
1. The Gate of Factory
2. Raw Material
3. Production Line
4. Fiber Optic Cable Testing
Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber Cable, mechanical characteristics can be tested on testing machine for the particular test.
5. Wooden Drums
♦ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to ur requirment and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
