Stranded Loose Tube Cable with Non-metallic Central Strength Member(GYFTY)
Parameter&Usage
Technicial Parameters
|
Cable Type (by 2fibers) |
Fiber Count |
Tubes |
Fillers |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100mm |
Bending Radius Static/Dynamic mm |
GYFTY 2 ~ 6 |
2 ~ 6 |
1 |
6 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
GYFTY 8 ~ 12 |
8 ~ 12 |
2 |
5 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
GYFTY 14 ~18 |
14 ~18 |
3 |
4 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
GYFTY 20 ~ 24 |
20 ~ 24 |
4 |
3 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
GYFTY 26 ~ 30 |
26 ~ 30 |
5 |
2 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
GYFTY 32 ~ 36 |
32 ~ 36 |
6 |
1 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
Note:
1.Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 3000m/reel: other lengths available on request.

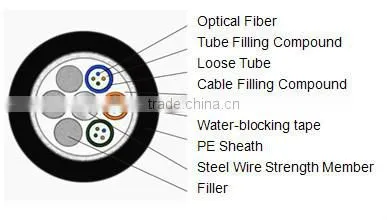

Structure&Detail
Description

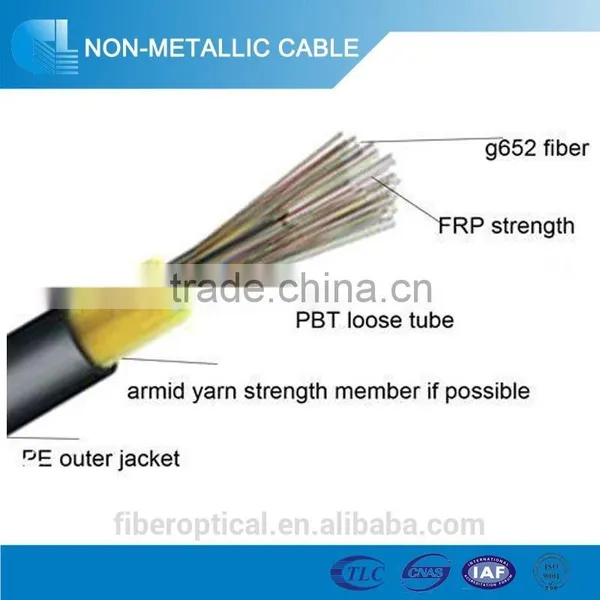

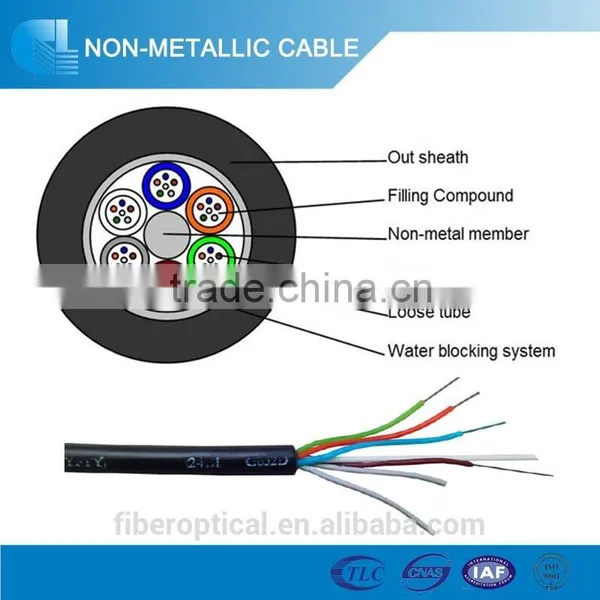

In the GYFTY cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around non-metallic central strength member (FRP) into a compact and circular cable core. the strength member would be covered with polyethylene (PE). The water-blocking materials are distributed into the interstices of the cable core.Then the cable is completed with a PE sheath.
Application: Duct/Aerial
Temperature Range:
Storing temperature:-40℃ to +70℃
Characteristics
1,Excellent mechanical and temperature performance. Critical protection to fibers.
2,Excellent ultraviolet prevention with PE sheath
3,Excellent crush resistance and flexibility
4,The following measures are taken to ensure the water blocking performance of the cable:
- FRP used as the central strength member
- Special water-blocking filling compound in the loose tube
- 100% cable core filling
Standards
Comply with stand YD/T 901-2009 as well as IEC 60794-1
