Gravity Mining Equipment for Extract Gold, Gold Recovery Equipment, Gold Panning Equipment

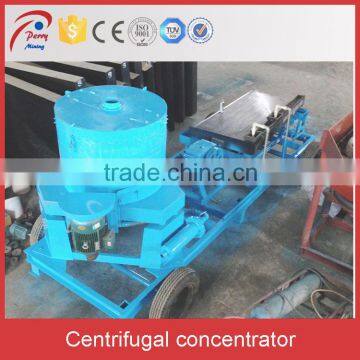

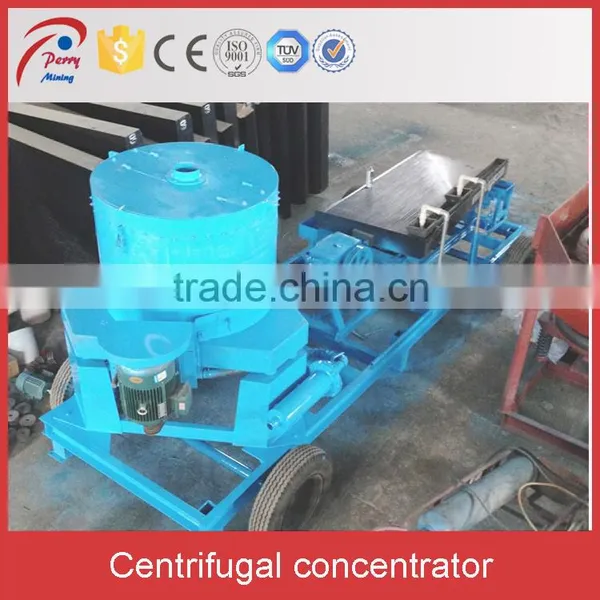

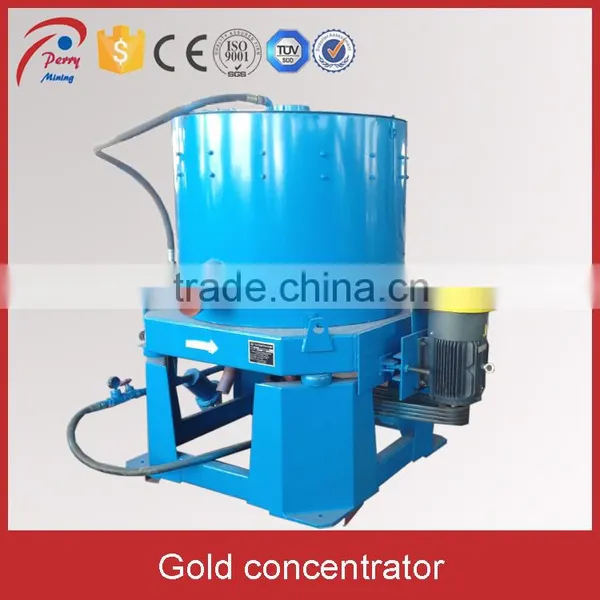

As one of the gravity concentration equipment, the centrifugal concentrator (Equipment for Extract Gold) is widely applied in gold recovery.

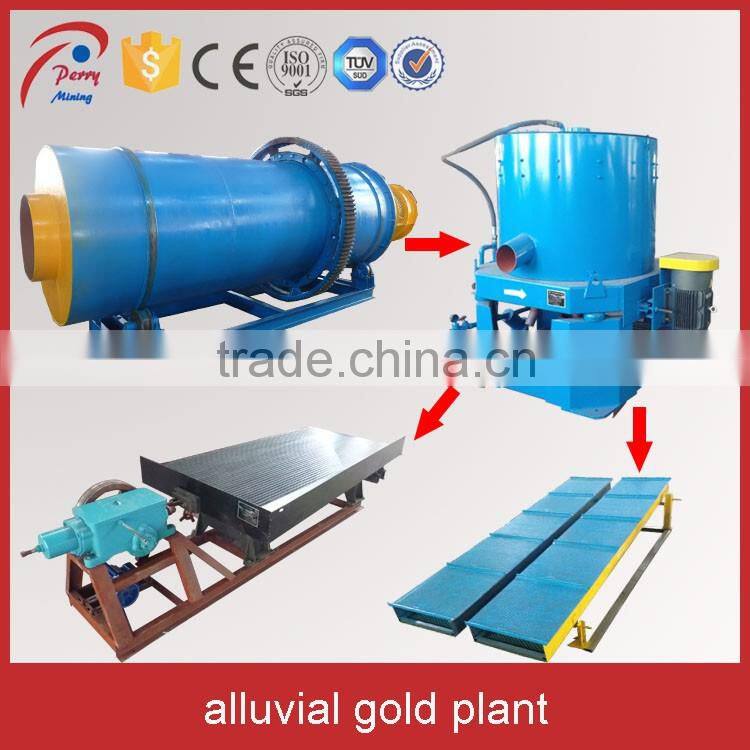

The centrifugal concentrator is always applied to enrich the heavy minerals in the roughing separation stage. The shaking table is usually applied to process the concentrates of centrifugal concentrator for further upgrading.

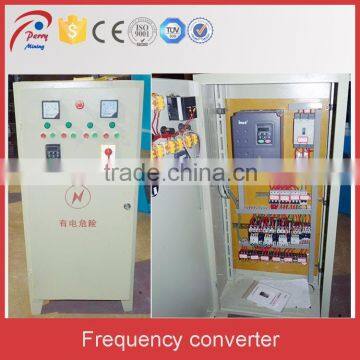

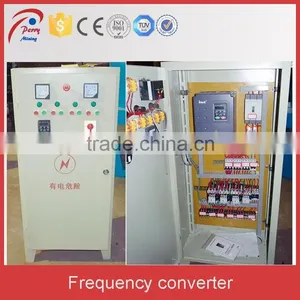

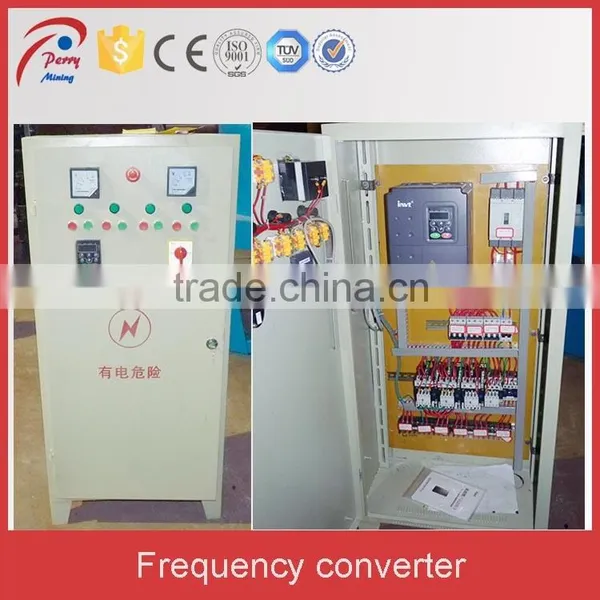

Furthermore, the feeding and discharging could realize the automatic operation with the help of the VFD (frequency converter)
Designed by learning experience of the Knelson and Falcon concentrator, the Chinese version centrifugal concentrator has the features of lower price but good effect. Thus more and more customers prefer to choose the Chinese version.
Equipment for Extract Gold Equipment for Extract Gold Equipment for Extract Gold
Technical Specification | |||||
Model |
STLB20 |
STLB30 |
STLB60 |
STLB80 |
STLB100 |
Capacity (T/H) |
1-3 |
2-7 |
15-30 |
30-70 |
60-100 |
Feeding size (mm) |
0-3 |
0-3 |
0-5 |
0-5 |
0-6 |
Feeding density |
<50% |
||||
Fluidization water(m3/H) |
1-2 |
4-6 |
10-20 |
20-35 |
40-60 |
Concentrates weight(kg) |
2-3 |
8-15 |
25-40 |
60-70 |
70-80 |
Water pressure(Mpa) |
0.06-0.1 |
0.1-0.15 |
0.1-0.2 |
||
Motor power(kw) |
0.75 |
1.5 |
4 |
11 |
18.5 |
Dimension(mm) |
800×700×980 |
1050×900×1150 |
1600×1400×1800 |
2100×1800×2100 |
2300×2000×2200 |
Weight (kg) |
270 |
420 |
1600 |
2500 |
3750 |
| Main Features | |
|
Only one moving part Low acquisition and operating costs Ease of Installation |
With VFD High concentration ratios Low machine weight |
| |
| STLB20 STLB30 STLB60 STLB80 STLB100 | |
Equipment for Extract Gold Equipment for Extract Gold Equipment for Extract Gold
| Structure Equipment for Extract Gold |
|

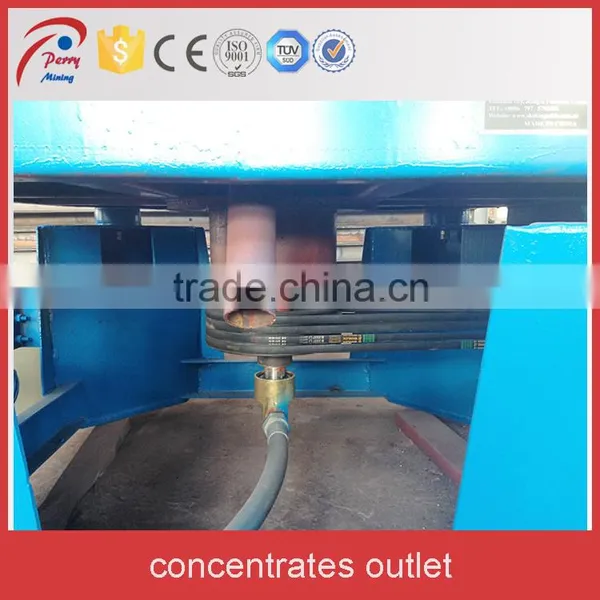

1. Belt drive 2. Motor 3. Outer shell 4. Feed tube 5. Stainless steel cone bowl 6. Pressure water jacket 7. Tailings outlet 8. Absorber 9. Framework 10. Concentrates outlet 11. Hollow shaft 12. Recoil water inlet |
Equipment for Extract Gold Equipment for Extract Gold Equipment for Extract Gold
|
Part name: Cone bowl Equipment for Extract Gold Brand: Perry Equipment for Extract Gold Origin: China Equipment for Extract Gold
In standard, the cone bowl is the stainless steel type. The customized material is acceptable, too.
As the most important part of the machine, its price takes a large percentage of the price of the whole machine. |
|

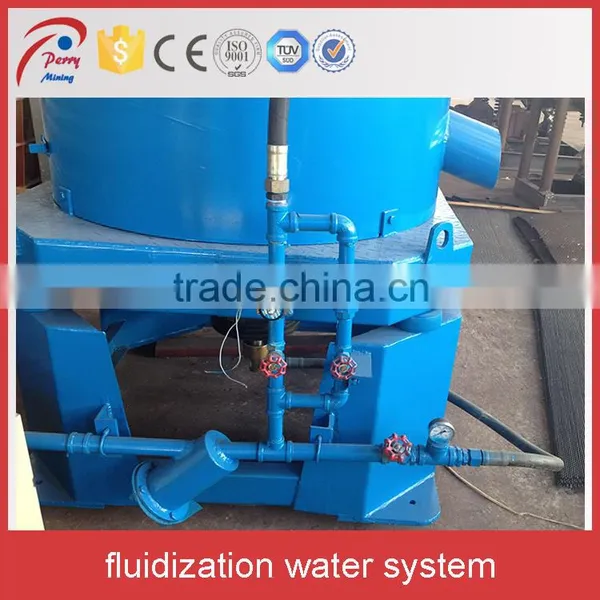

Part name: Filter of fluidization water Equipment for Extract Gold Brand: Perry
Origin: China Equipment for Extract Gold
The clean water is very important for the concentrator efficiency. The filter is used to prevent the impurities from feeding into the concentrator.
Equipment for Extract Gold |
|
|
Part name: Motor Equipment for Extract Gold Brand: Perry
Origin: China Equipment for Extract Gold
The elec motor is specially for export, with high quality.
For concentrator with VFD, the motor will be the Variable-Frequency Adjustable-Speed Motor.
Equipment for Extract Gold |
Equipment for Extract Gold Equipment for Extract Gold Equipment for Extract Gold
|
FCL Equipment for Extract Gold | |
| Size | one 40GP load 2 STLB100 | |
| Weight | Equipment for Extract Gold | |
| Packing details | The machine is usually loaded and fixed in the container mostly assembled. | |
|
|
LCL Equipment for Extract Gold | |
| Size | Equipment for Extract Gold | |
| Weight | Equipment for Extract Gold | |
| Packing details |
LCL usually refers to the smaller models. The machine is packed inside in steel frame and outside in plywood |
|
Perry Mining will offer you the turnkey solution for your ore mining professionally. Just trust us and let us do it for you!
Equipment for Extract Gold Equipment for Extract Gold Equipment for Extract Gold
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd, professional in mining equipment manufacturing, has more than 25 years' manufacturing experiences. Our equipment had been exported to more than 50 foreign countries.
Equipment for Extract Gold Equipment for Extract Gold Equipment for Extract Gold
Name: Helen Huang |
|
| E-mail: helen@ | |
Mobile: 0086-15879777833 |
