Gravity Spiral Chute, Spiral Separator, Spiral Concentrator Quality Choice

Gravity Spiral Chute, Spiral Separator, Spiral Concentrator Quality Choice photo-1
Gravity Spiral Chute, Spiral Separator, Spiral Concentrator Quality Choice photo-2
Gravity Spiral Chute, Spiral Separator, Spiral Concentrator Quality Choice photo-3
Gravity Spiral Chute, Spiral Separator, Spiral Concentrator Quality Choice photo-4
Gravity Spiral Chute, Spiral Separator, Spiral Concentrator Quality Choice photo-5
Gravity Spiral Chute, Spiral Separator, Spiral Concentrator Quality Choice photo-6
US$ 1,250 - 1,250 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Sprial Separator
Production Capacity:
4-6t/h
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen/Guangzhou/Shenzhen/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Sprial Separator
Production Capacity 4-6t/h
Place of Origin Jiangxi, China
Brand Name Perry Mining
Model Number 5LL
Voltage non-power
Power(W) non-power
Dimension(L*W*H) 1560*1560*5260mm
Weight 35kg for one spiral
Certification ISO9001:2008
Warranty 1 Year Excluding Spare Parts
After-sales Service Provided Engineers available to service machinery overseas
Product Description

The spiral concentrator is new equipment with the domestic advanced level, successfully invented by Beijing General Research Institute of Mining and Metallurgy. It is applied for processing iron, tin, tungsten, tantalum, niobium, gold, coal, monazite, rutile, zircon and other metal, nonmetal minerals with enough specific gravity dispersion of granularity ranged from 0.02 to 0.3mm.


The spiral concentrator is our company's concentrating experienced scientific product, which is the best concentrating equipment, especially for concentrating sand ore in beach, riverside, seashore and stream.


Main Features

<< Reasonable structure and small occupation area

<< High recovery, high efficiency,

<<  Precise separation

<< Non-required power

<< Light in weight, anti corrosion, rust and wear resistant

<< Simple installation and Minimal maintenance requirements

<< Low operating cost and long working life

<< Reliable running with minimal operator attention

<< Strong adaptability to fluctuation of feeding amount, density, size and grade

<< The surface of corundum forms strong friction the concentration effect surpass plastic surface

Material

The spiral concentrator is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; the advantages are light, moisture proof, anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new highly effective equipment.

The spiral concentrator is a gravity equipment. With the water, action of gravity friction force, minerals would be separated by its gravity difference. Then we could get heavy, middling and light products.

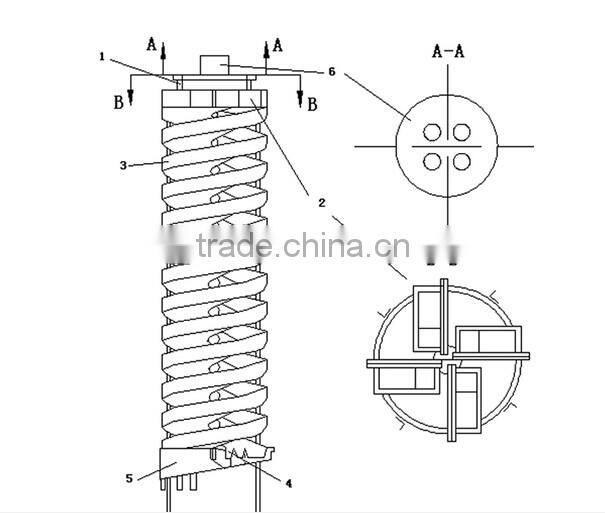

Structure


1. Channel steel support 2. Feeding box 3. Helical sluice 4. Product separator 5. Collector 6. Distributor

Detailed Images

Machine Parts

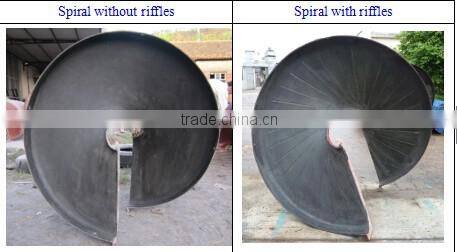

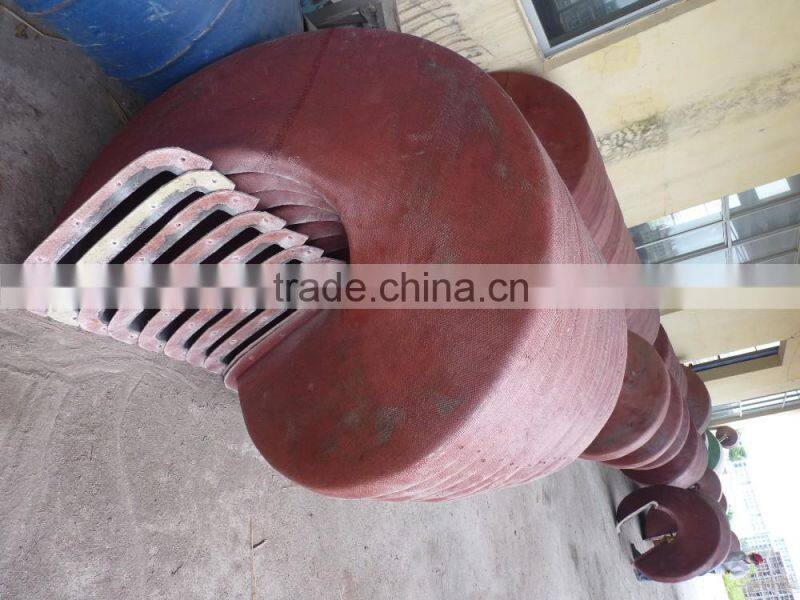

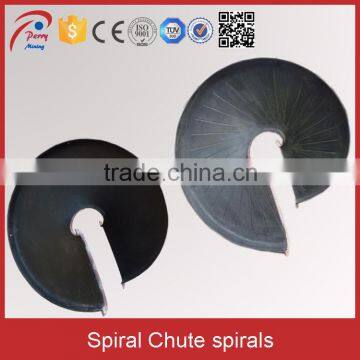

Name: Spirals

Brand: Perry mining

Original:China

(1)Spiral distance: 540mm and 720jmm for option

(2)Spiral blades quantity: each set of spiral separator includes totally 20 pieces of spiral blades.

(3)Spiral blade weight: at least 16kg/piece (the spiral blade with 720mm spiral distance will be heavier)

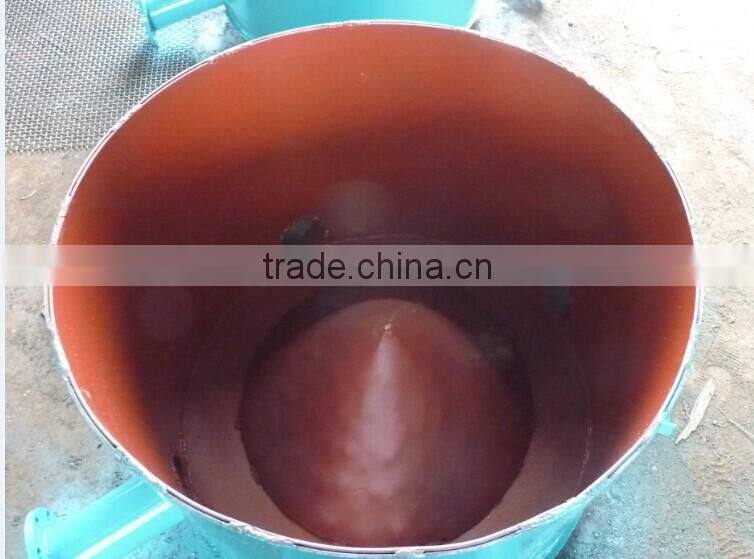

Spiral Distributor: Steel plate with 5mm thickness (fluctuating volume in accordance with the national standard)

Spiral distributor bottom : It seems a cone , to feed the material into each output in uniform .

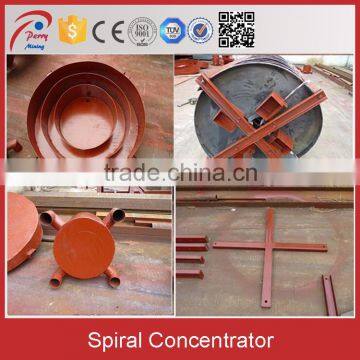

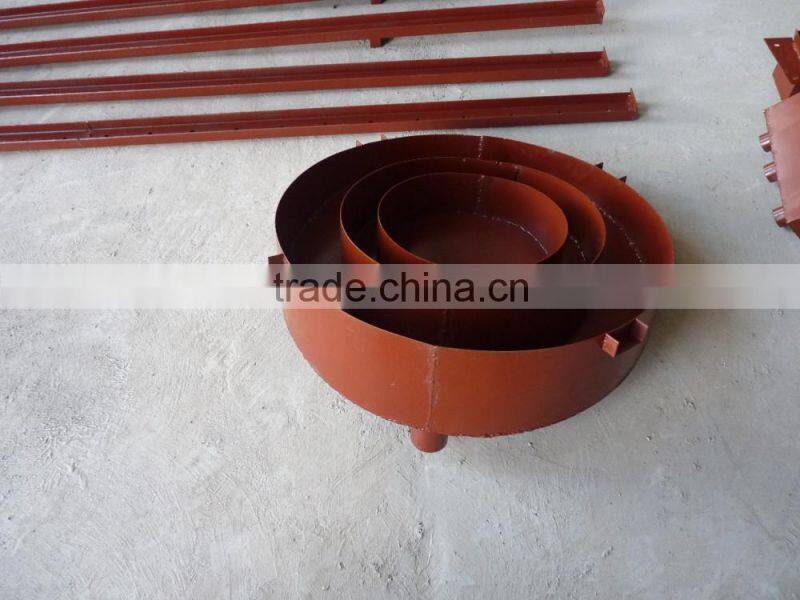

Machine Parts

Name:  spiral collector and support frame
Brand: Perry Mining
Original: China
#8 channel steel, 4.2kg/meter

Steel plate with 5mm thickness (fluctuating volume in accordance with the national standard)

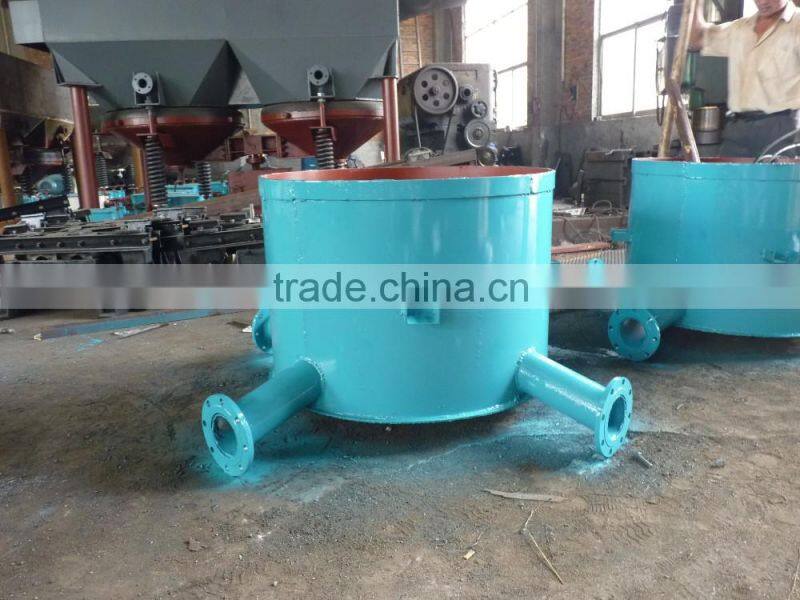

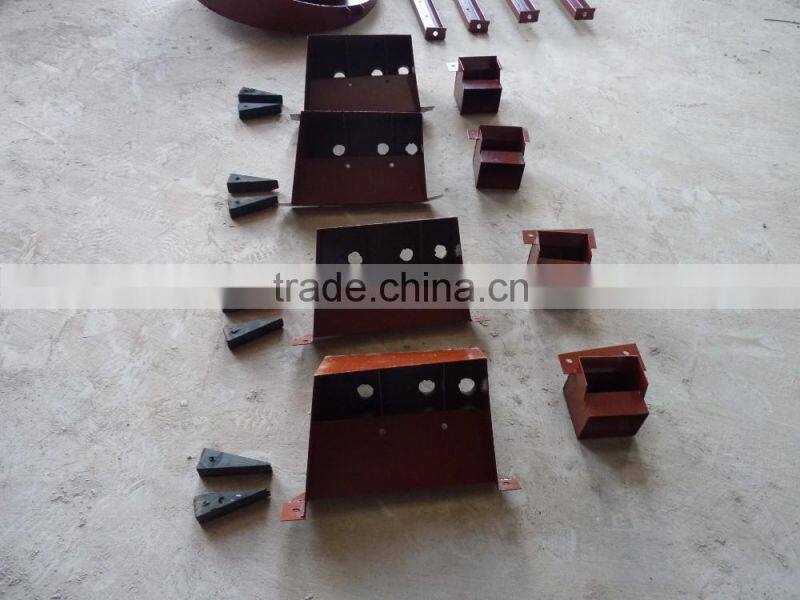

Machine Parts

Name: product separator
Brand: Perry Mining
Original: China
Steel plate with 5mm thickness (fluctuating volume in accordance with the national standard) , to separate different metals from light to heavy . There is concentrate ,middling ,and tailing difference after separation .

Specifications
Model
5LL-1500
5LL-1200
5LL-900
5LL-600
Diameter(mm)
1500
1200
900
600
Spiral Distance  (mm)
540,720
540,720
540,405
540,360
Max Number Spiral
1-4
1-4
1-4
1-3
Feeding Range  (mm)
0.3-0.02
0.3-0.03
0.3-0.03
0.3-0.03
Feeding Density(%)
25-55
25-55
25-55
25-55
Capacity(t/h)
8--6
4--6
2--3
0.8-1.2
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

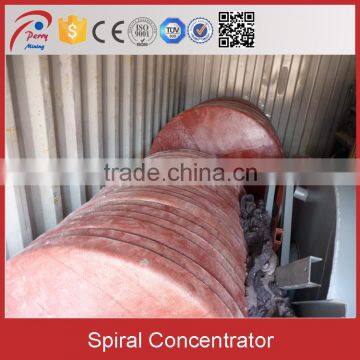

The spiral concentrator will be loaded in container disassembled.

The spiral concentrator exported to Pakistan customer for Tin project .

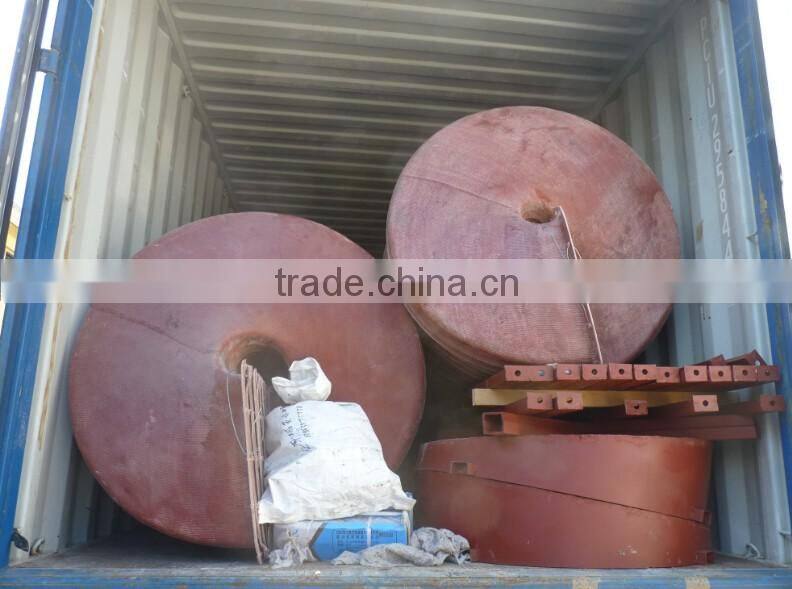

The spiral concentrator spirals loaded in the factory.

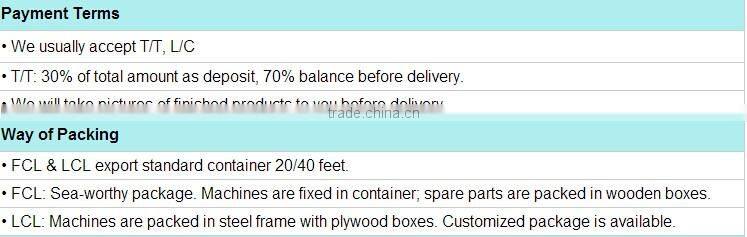

Trading Terms
