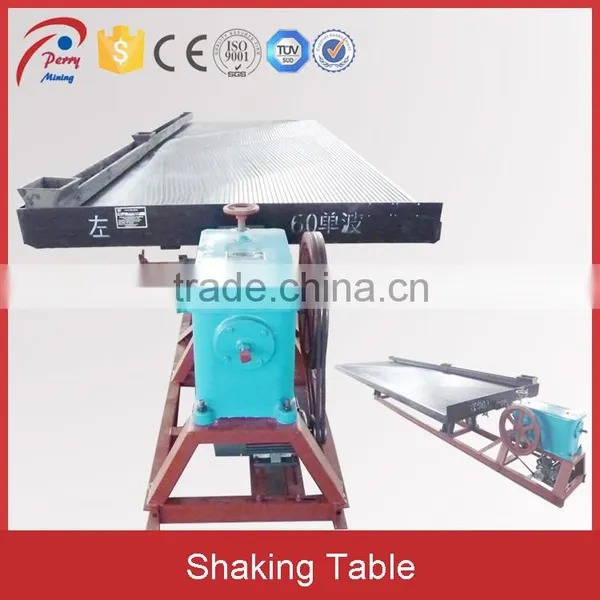

Latest and Durable Mining Gold Shaking Table Design
| Product Description of Shaking Table Design |
Shaking Table Design Shaking Table Design
The Shaking Table is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope s 2-0.22mm.
| Technical Specification | |||||
| Model | LS4500 | LY3000 | LY2100 | LY1100 | |
| Deck size | mm | 4500*1850*1560 | 3000*1620*1100 | 2100*1050*850 | 1100*500*430 |
| Feeding size | sand ore | -2 | -2 | -2 | -2 |
| slime ore | -0.074 | -0.1 | -0.074 | -0.074 | |
| Capacity (t/h) | sand ore | 0.5-1.8 | 0.7-1.5 | 0.4-0.8 | 0.1-0.2 |
| slime ore | 0.5-0.8 | 0.4-1 | 0.3-0.5 | 0.05-0.1 | |
| Motor power | kw | 1.1 | 1.1 | 1.1 | 0.55 |
| Dimension | mm | 5600*1850*860 | 4075*1320*780 | 3040*1050*1020 | 1530*500*800 |
Main Features of Shaking Table Design
1) High separation accuracy. It can get final concentrates, middling, and tailing only for one time separation of the raw ore.
2) High concentration ratio. Shaking Table Design
3) High separation efficiency. Shaking Table Design
4) Easier safeguard Shaking Table Design
5) The frequency stroke is easier to be adjusted. Shaking Table Design
| Detail Image of Shaking Table Design |
|

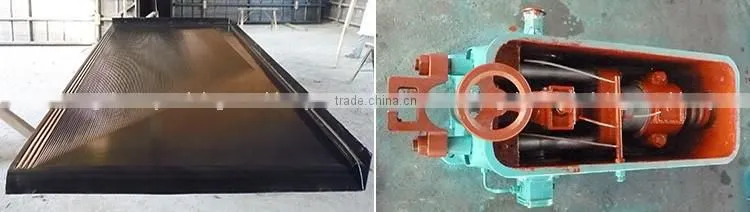

Name: Deck / Table Shaking Table Design There are 3 different deck designs available:
(1) The coarse ore deck for 0.5 mm to 2 mm;
(2) The fine sand deck for 0.074 mm to 0.5 mm;
(3) The slime deck for 0.05 mm to 0.074 mm. |
Name: Head motion / Driving device Shaking Table Design 6-S Shaking Table is furnished with a totally enclosed self-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance costs to a minimum. Shaking Table Design It is one of the most important part of shaking table |
|

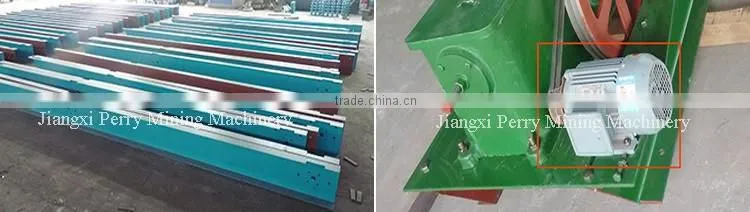

Name: Support device Shaking Table Design We mainly have 3 supporting device:
#28 channel steel type support
#10 channel steel type support
#8 channel steel type support |
Name: Motor engine Shaking Table Design The motor engine for our shaking table is the type which is specially applied for export and which is with high quality. Shaking Table Design It is different from the one for domestic market. Siemens motors are available
|
Shaking Table Design Shaking Table Design Shaking Table Design

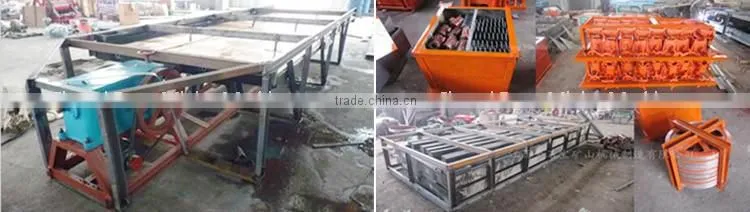

LCL shipment of Shaking Table Design
|
Pack after assemble
For single set, the shaking table is usually packed in steel frame after assemble. |
Pack disassembled
For more quantity, the shaking tables are packed disassembled. |
FCL shipment of Shaking Table Design
For full container loading, the shaking tables are disassembled. The machines are loaded in the container, the spare parts are packed in wooden boxes.
Shaking Table Design Shaking Table Design Shaking Table Design
|
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd is a company who specially supplies mining equipment for export, layout design, plant installation & debugging, and technical support. With more than 25 years' manufacturing experiences, our customers and services have covered more than 50 countries all over the world.
Main product: complete gold washing plant, shaking table, gold concentrator, jig, spiral chute, trommel screen, ore washing machine, crushers, grinding mills, screening equipment, and so on. |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
