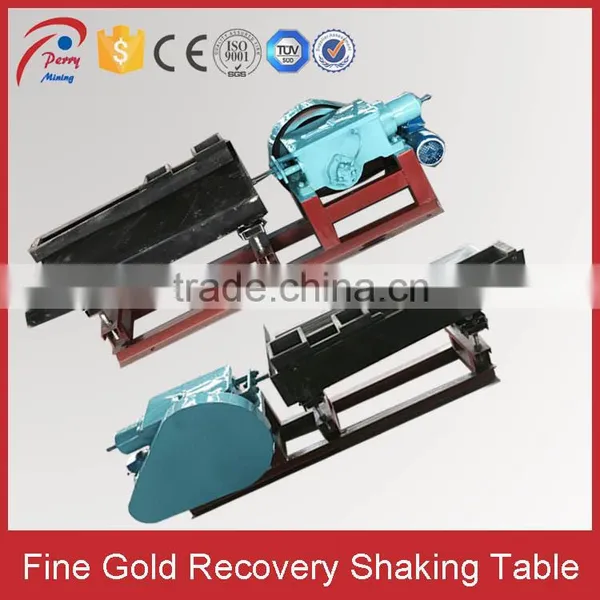

Fine Gold Recovery Shaking the Table
| Product Description of Small Fine Gold Recovery Shaking the Table |
Small Fine Gold Recovery Shaking the Table Small Fine Gold Recovery Shaking the Table
The Fine Gold Recovery Shaking the Table is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope s 2-0.22mm.
| Technical Specification | |||||
| Model | LS4500 | LY3000 | LY2100 | LY1100 | |
| Deck size | mm | 4500*1850*1560 | 3000*1620*1100 | 2100*1050*850 | 1100*500*430 |
| Feeding size | sand ore | -2 | -2 | -2 | -2 |
| slime ore | -0.074 | -0.1 | -0.074 | -0.074 | |
| Capacity (t/h) | sand ore | 0.5-1.8 | 0.7-1.5 | 0.4-0.8 | 0.1-0.2 |
| slime ore | 0.5-0.8 | 0.4-1 | 0.3-0.5 | 0.05-0.1 | |
| Motor power | kw | 1.1 | 1.1 | 1.1 | 0.55 |
| Dimension | mm | 5600*1850*860 | 4075*1320*780 | 3040*1050*1020 | 1530*500*800 |
Main Features of Small Fine Gold Recovery Shaking the Table
1) High separation accuracy. It can get final concentrates, middling, and tailing only for one time separation of the raw ore.
2) High concentration ratio. Fine Gold Recovery Shaking the Table price Small Fine Gold Recovery Shaking the Table
3) High separation efficiency. Fine Gold Recovery Shaking the Table price Small Fine Gold Recovery Shaking the Table
4) Easier safeguard Fine Gold Recovery Shaking the Table price Small Fine Gold Recovery Shaking the Table
5) The frequency stroke is easier to be adjusted. Small Fine Gold Recovery Shaking the Table

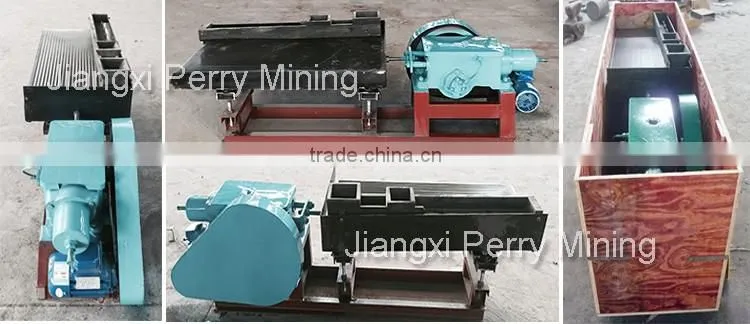

| Detail Image of Small Fine Gold Recovery Shaking the Table |
|
Name: Deck / Table Small Fine Gold Recovery Shaking the Table There are 3 different deck designs available:
(1) The coarse ore deck for 0.5 mm to 2 mm;
(2) The fine sand deck for 0.074 mm to 0.5 mm;
(3) The slime deck for 0.05 mm to 0.074 mm. |
Name: Head motion / Driving device Small Fine Gold Recovery Shaking the Table 6-S Fine Gold Recovery Shaking the Table is furnished with a totally enclosed self-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance costs to a minimum. Small Fine Gold Recovery Shaking the Table It is one of the most important part of Fine Gold Recovery Shaking the Table |
|
Name: Support device Small Fine Gold Recovery Shaking the Table We mainly have 3 supporting device:
#28 channel steel type support
#10 channel steel type support
#8 channel steel type support |
Name: Motor engine Small Fine Gold Recovery Shaking the Table The motor engine for our Fine Gold Recovery Shaking the Table is the type which is specially applied for export and which is with high quality. Small Fine Gold Recovery Shaking the Table It is different from the one for domestic market. Siemens motors are available
|
Small Fine Gold Recovery Shaking the Table Small Fine Gold Recovery Shaking the Table Small Fine Gold Recovery Shaking the Table
LCL shipment of Small Fine Gold Recovery Shaking the Table
|
Pack after assemble
For single set, the Fine Gold Recovery Shaking the Table is usually packed in steel frame after assemble. |
Pack disassembled
For more quantity, the Fine Gold Recovery Shaking the Tables are packed disassembled. |
FCL shipment of Small Fine Gold Recovery Shaking the Table
For full container loading, the Fine Gold Recovery Shaking the Tables are disassembled. The machines are loaded in the container, the spare parts are packed in wooden boxes.
Small Fine Gold Recovery Shaking the Table Small Fine Gold Recovery Shaking the Table Small Fine Gold Recovery Shaking the Table
|
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd is a company who specially supplies mining equipment for export, layout design, plant installation & debugging, and technical support. With more than 25 years' manufacturing experiences, our customers and services have covered more than 50 countries all over the world.
Main product: complete gold washing plant, Fine Gold Recovery Shaking the Table, gold concentrator, jig, spiral chute, trommel screen, ore washing machine, crushers, grinding mills, screening equipment, and so on. |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Name: Flynn |
| E-mail: flynn@ |
Mobile: 0086-15879778652 |
