10-30 t/h Centrifugal Gravity Separator Machine, Gold Gravity Separator for Sale
| Product Description Gravity Separator Machine |

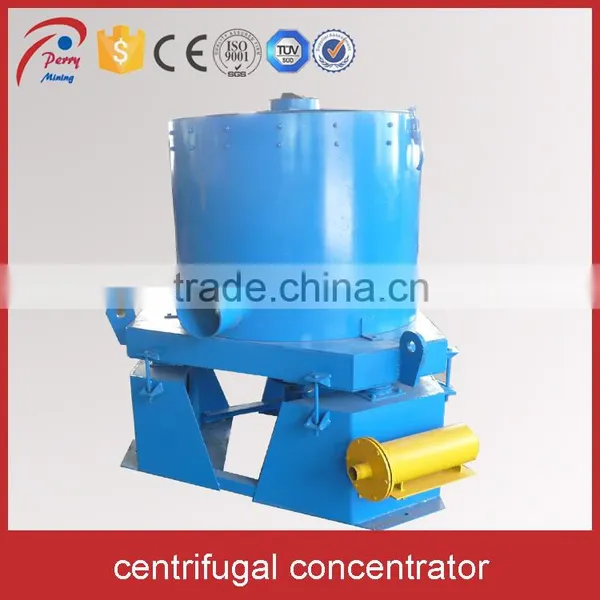

As one of the gravity concentration equipment, the centrifugal concentrator (Gravity Separator Machine) is widely applied in gold recovery.

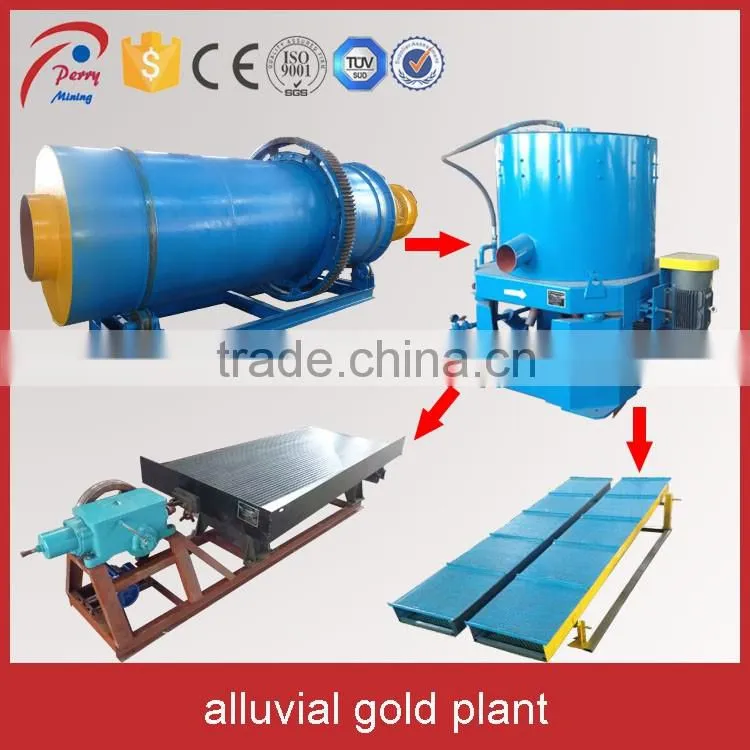

The centrifugal concentrator is always applied to enrich the heavy minerals in the roughing separation stage. The shaking table is usually applied to process the concentrates of centrifugal concentrator for further upgrading.
Furthermore, the feeding and discharging could realize the automatic operation with the help of the VFD (frequency converter)
Designed by learning experience of the Knelson and Falcon concentrator, the Chinese version centrifugal concentrator has the features of lower price but good effect. Thus more and more customers prefer to choose the Chinese version.
Technical Specification | |||||
Model |
STLB20 |
STLB30 |
STLB60 |
STLB80 |
STLB100 |
Capacity (T/H) |
1-3 |
2-7 |
15-30 |
30-70 |
60-100 |
Feeding size (mm) |
0-3 |
0-3 |
0-5 |
0-5 |
0-6 |
Feeding density |
<50% |
||||
Fluidization water(m3/H) |
1-2 |
4-6 |
10-20 |
20-35 |
40-60 |
Concentrates weight(kg) |
2-3 |
8-15 |
25-40 |
60-70 |
70-80 |
Water pressure(Mpa) |
0.06-0.1 |
0.1-0.15 |
0.1-0.2 |
||
Motor power(kw) |
0.75 |
1.5 |
4 |
11 |
18.5 |
Dimension(mm) |
800×700×980 |
1050×900×1150 |
1600×1400×1800 |
2100×1800×2100 |
2300×2000×2200 |
Weight (kg) |
270 |
420 |
1600 |
2500 |
3750 |
| Main Features of Gravity Separator Machine | |
|
Only one moving part Low acquisition and operating costs Ease of Installation |
With VFD High concentration ratios Low machine weight |
STLB20 STLB30 STLB60 STLB80 STLB100
| Structure Gravity Separator Machine |
|
1. Belt drive 2. Motor 3. Outer shell 4. Feed tube 5. Stainless steel cone bowl 6. Pressure water jacket 7. Tailings outlet 8. Absorber 9. Framework 10. Concentrates outlet 11. Hollow shaft 12. Recoil water inlet |
| Detailed Images Gravity Separator Machine |
|
Part name: Cone bowl Gravity Separator Machine Brand: Perry Gravity Separator Machine Origin: China
Gravity Separator Machine In standard, the cone bowl is the stainless steel type. The customized material is acceptable, too. Gravity Separator Machine As the most important part of the machine, its price takes a large percentage of the price of the whole machine. Gravity Separator Machine |
|
Part name: Filter of fluidization water Gravity Separator Machine Brand: Perry Gravity Separator Machine Origin: China
Gravity Separator Machine The clean water is very important for the concentrator efficiency. The filter is used to prevent the impurities from feeding into the concentrator. Gravity Separator Machine Gravity Separator Machine |
|
|
Part name: Motor Gravity Separator Machine Brand: Perry Gravity Separator Machine Origin: China Gravity Separator Machine Gravity Separator Machine The elec motor is specially for export, with high quality.
For concentrator with VFD, the motor will be the Variable-Frequency Adjustable-Speed Motor. Gravity Separator Machine Gravity Separator Machine |
|
|
| Packing & Delivery Gravity Separator Machine |
|
FCL Gravity Separator Machine | |
| Size | one 40GP load 2 STLB100 | |
| Weight | Gravity Separator Machine | |
| Packing details | The machine is usually loaded and fixed in the container mostly assembled. | |
|
|
LCL Gravity Separator Machine | |
| Size | Gravity Separator Machine | |
| Weight | Gravity Separator Machine | |
| Packing details |
LCL usually refers to the smaller models. The machine is packed inside in steel frame and outside in plywood |
|
Perry Mining will offer you the turnkey solution for your ore mining professionally. Just trust us and let us do it for you!
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd, professional in mining equipment manufacturing, has more than 25 years' manufacturing experiences. Our equipment had been exported to more than 50 foreign countries.
