DZ30-4 Small Mining Vibrating Feeder, Factory Vibrating Feeder Price
- 160 Set / Sets per Month
- Xiamen/Guangzhou/Shenzhen
- T/T Credit Card
- Hanging Vibrating Feeder Screw ZSW Series Vibration Feeder For Quarry Stone
- Coal Mining Industry Vibratory Feeder Industrial And Vibrating Feeder Capacity Calculation
- Vibratory Feeder Industrial And Vibratory Feeder Controller Price
- Vibratory Feeder Industrial And Vibrating Feeder Capacity Calculation
- Mining Selecting Vibratory Feeder Industrial For Sale
- Vibratory Feeder Industrial And Vibratory Feeder Controller Price
Product Details
Condition: | New | Application: | Ore, stone, mining | Power Type: | Electric |
Capacity(t/h): | 15t/h | Place of Origin: | Jiangxi, China | Brand Name: | Perry Vibrating Feeder |
Model Number: | DZ30-4 Vibrating Feeder | Power(W): | 0.18*2kw | Dimension(L*W*H): | 680*430*550mm |
Weight: | 60kg | Certification: | ISO9001:2008; CE | Warranty: | 12 Months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Main equipment available:
Jigger machine Trommel scrubber
Shaking table Log washer
Spiral separator Flotation machine
Centrifugal concentrator Jaw crusher
Mobile trommel Hammer mill
Fixed trommel Ball mil
Complete alluvial gold line Complete rock gold line
Please CLICK the above items for more information! Full Plant Design is Available for both Rock and Alluvial type minerals.

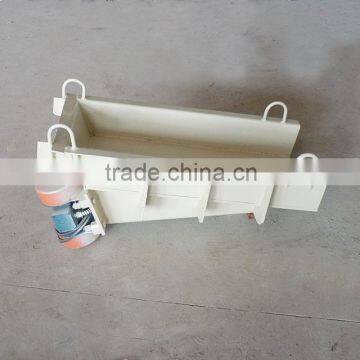

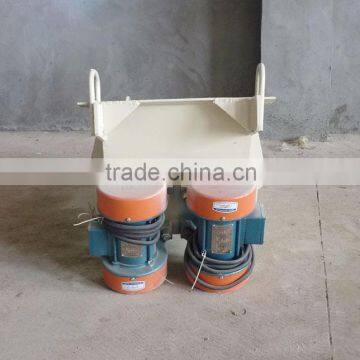

DZ30-4 Small Mining Vibrating Feeder, Factory Vibrating Feeder Price
DZ series vibrating feeder is a new type of feeding equipment which is widely used in metallrgy, coal, chemicals, building materials, ceramics, food and other industries.
It can feed block or granule materiasl from the storage silo to charging device evenly and continuously. It can be also used for automatic matching, quantitative package, automatic regulating process.
Working Principle of Vibrating Feeder
The vibrating motors force the feeding trough body to make simple harmonic vibration or similar to simple harmonic vibration in a certain direction. When the acceleration of its vibration achieves some certain value, the materials will make continuous and small throws or slides along the transmission direction in the feeding trough body, which causes the forward motion and transmission of the materials.

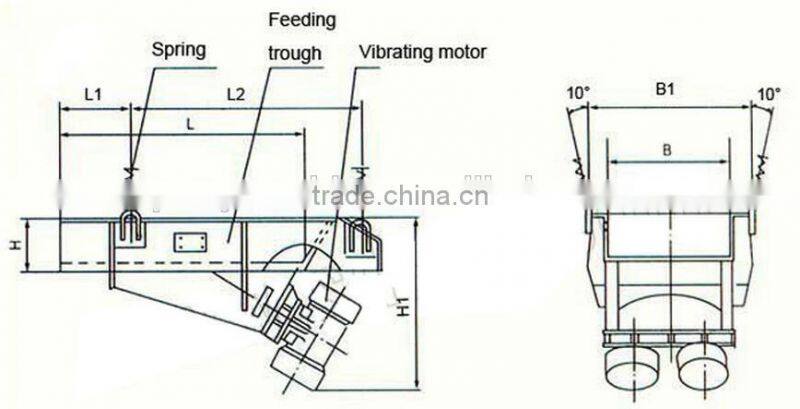

Structure of Vibrating Feeder
The motor vibrating feeder mainly compose of frame, vibrating motors, springs, transmission trough body, vibrating support plate, control box, etc.
Technical Specification of Vibrating Feeder
Model | Capacity t/h | Feeding chute size mm | Feed size ≤mm | Running mode | Vibrating motor | |
Model | Power /kw | |||||
DZ30-4 | 15 | 300*800*120 | 120 | continuous | 2.5-4 | 0.18*2 |
DZ40-4 | 40 | 400*1000*160 | 5-4 | 0.25*2 | ||
DZ50-4 | 50 | 500*1100*200 | 8-4 | 0.40*2 | ||
DZ60-4 | 85 | 600*1200*250 | 150 | 16-4 | 0.75*2 | |
DZ70-4 | 100 | 700*1300*280 | 180 | 16-4 | 0.75*2 | |
DZ80-4 | 200 | 800*1600*300 | 200 | 16-4 | 0.75*2 | |
DZ90-4 | 220 | 900*1600*350 | 250 | 20-4 | 1.1*2 | |
DZ100-4 | 240 | 1000*1600*350 | 32-4 | 1.5*2 | ||
DZ110-4 | 400 | 1100*1800*400 | 350 | 32-4 | 1.5*2 | |
DZ120-4 | 440 | 1200*2000*400 | 32-4 | 1.5*2 | ||
DZ130-4 | 475 | 1300*2200*400 | 32-4 | 1.5*2 | ||
DZ70-6 | 80 | 700*1300*280 | 150 | 20-6 | 1.5*2 | |
DZ80-6 | 160 | 800*1600*300 | 180 | 30-6 | 2.2*2 | |
DZ90-6 | 240 | 900*1600*350 | 240 | 40-6 | 3.0*2 | |
DZ110-6 | 320 | 1000*1600*350 | 50-6 | 3.7*2 | ||
DZ130-6 | 400 | 1300*2200*400 | 320 | 50-6 | 3.7*2 | |
DZ150-6 | 500 | 1500*2400*400 | 50-6 | 3.7*2 |

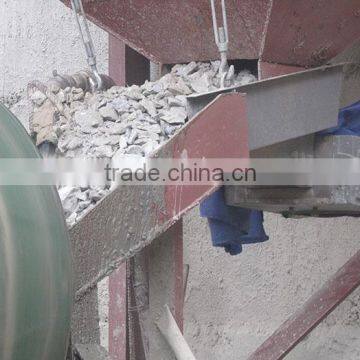

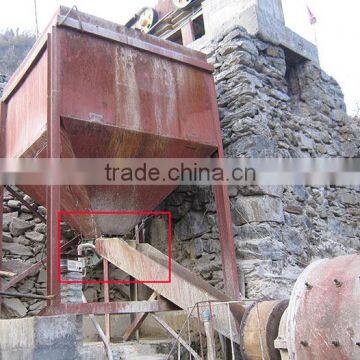

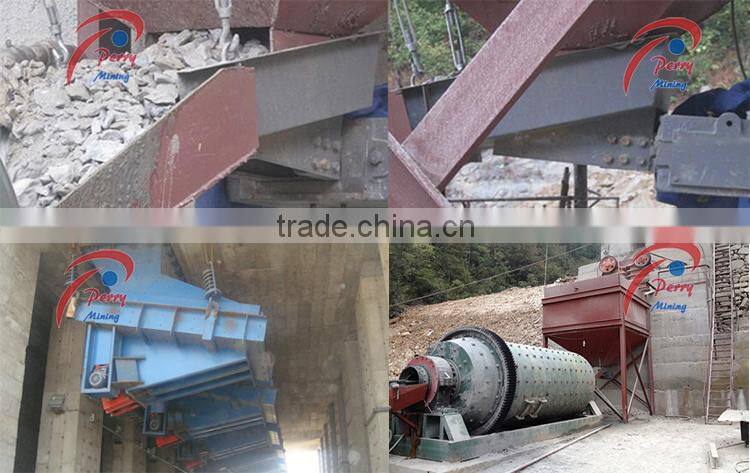

The vibrating feeder always works together with vibrating conveyor, vibrating screen, chain bucket elevator, crusher, ball mill, and so on. In mining industry, it is always used to feed ball mill evenly.
There are also other feeders for your option:

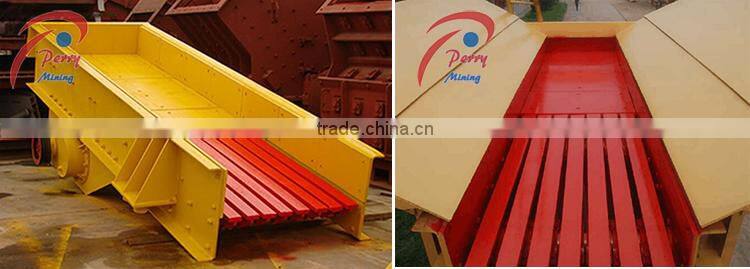

(1) ZSW series Grizzly Vibrating Feeder

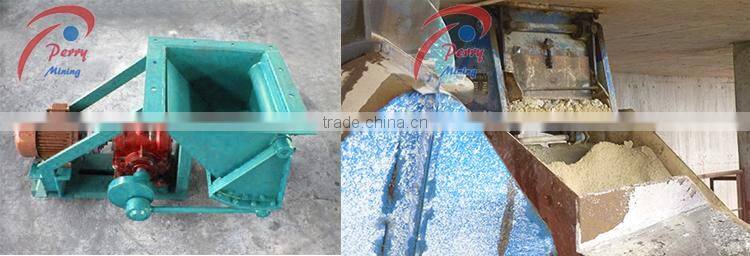

(2) Swaying feeder which is always applied to feed for ball mill
Vibrating Feeder Vibrating Feeder Vibrating Feeder

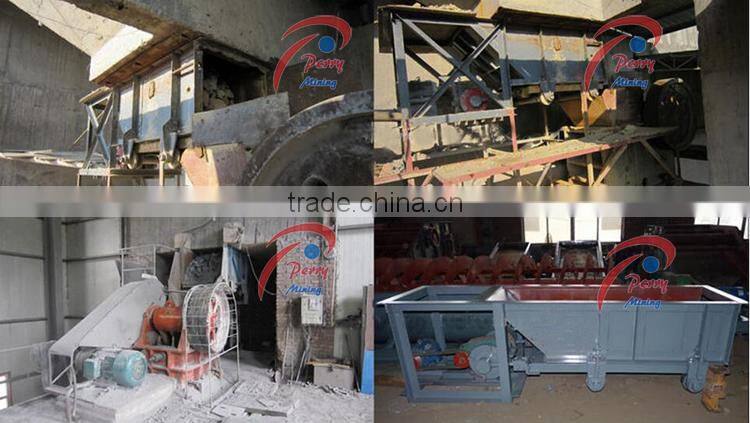

(3) Chute feeder which is usually applied to feed large sized stones for crushers or other equip.
Vibrating Feeder Vibrating Feeder Vibrating Feeder

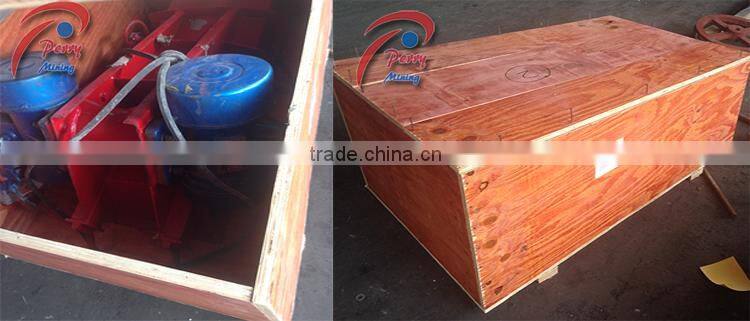

Small model Vibrating Feeder is packed in plywood box;
Large model is packed in steel frame inside and plywood outside.
Vibrating Feeder Vibrating Feeder Vibrating Feeder
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd, professional in mining equipment manufacturing, has more than 25 years' manufacturing experiences. Our equipment had been exported to more than 50 foreign countries.
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd is a company who specially supplies mining equipment for export, layout design, plant installation & debugging, and technical support. With more than 25 years' manufacturing experiences, our customers and services have covered more than 50 countries all over the world.
Main product: complete gold washing plant, shaking table, gold concentrator, jig, spiral chute, trommel screen, ore washing machine, crushers, grinding mills, screening equipment, and so on. |
Name: Helen Huang |
E-mail: helen@ |
Mobile: 0086-15879777833 |
Skype: sabrina88196 |
1. Are you a trade company or a manufacturer?
A: We are an ISO9001:2008 and CE verified manufacturer specialized in various kinds of mining equipment as well as mining technology. OEM & ODM service are available.
2. What is your delivery time?
A: The delivery time is about 7-20 days after receipt of payment.
3. What is the payment terms?
A: The payment term is 45% payment in advance, 55% balance before shipment.
4. Why choose you as supplier?
A: 1). High quality & most competitive price
We are a factory who could provide the lowest price to you.
We are top 3 and with more than 20 years experiences in mining equipment.
2). Fast delivery--Goods will be shipped within 7 - 30 days based on order quantity.
3). Best service--Overseas customers can enjoy 24/7 after-sale service and dispatching service
4). 3D & CAD flow chart design
DZ30-4 Small Mining Vibrating Feeder, Factory Vibrating Feeder Price
DZ30-4 Small Mining Vibrating Feeder, Factory Vibrating Feeder Price
DZ30-4 Small Mining Vibrating Feeder, Factory Vibrating Feeder Price
