Small size RS-232 interface Magnetic Card Reader-HCC780
Small size RS-232 interface Magnetic Card Reader-HCC780 Feature
Manual sweep reader
Dual face sweep (Dual head) designed to reduce confusion at the Point of Sale
Bi-direction read capability
ISO 7811 conformance
RS-232 interface, baud rate adjustable. USB , PS/2 interface at optional
Operation responded by LEDs and buzzer
Power supplied by PC keyboard
Small size
Sleeping mode (power saving)Cover: Plastic, Ivory color or black color at optional
Small size RS-232 interface Magnetic Card Reader-HCC780 Specification
|
Track 1 |
Track 2 |
Track 3 |
Recording density |
210 BPI |
75 BPI |
210 BPI |
Capacity |
79 characters (7 bit code) |
40 characters (5 bit code) |
107 characters (5 bit code) |
Power Supply |
Power supplied by the computer |
||
Card operation speed |
10 ~ 150 cm/sec |
||
Decoding method |
F/2F |
||
Operation temperature |
-10 ~ 50°c
|
||
Life time of head |
Approx. 500,000 passes |
||
Baud rate |
2400 bps,9600 bps,19200 bps |
||
Card standard |
ISO 7811
|
||
Cable length |
120 cm |
||
Color |
black and Ivory at optional |
||
Dimension (L*D*H) |
116*36*40mm |
||
Small size RS-232 interface Magnetic Card Reader-HCC780 Model Description
780x1-x2x3
Type |
X1 |
Interface |
X2X3 |
Tracks |
780 |
R |
RS232 Series port |
04 |
1&2 tracks |
|
U |
USB port |
05 |
2&3 tracks |
|
K |
Keyboard compatible |
06 |
1&2&3 tracks |

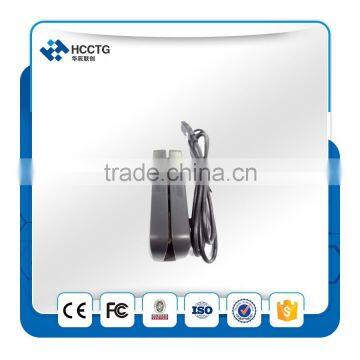

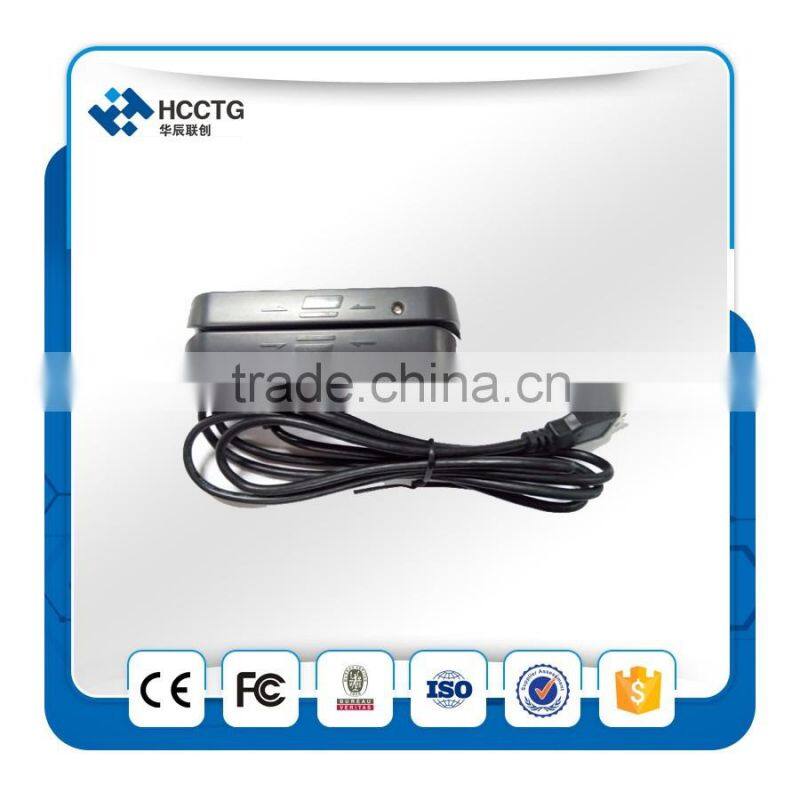

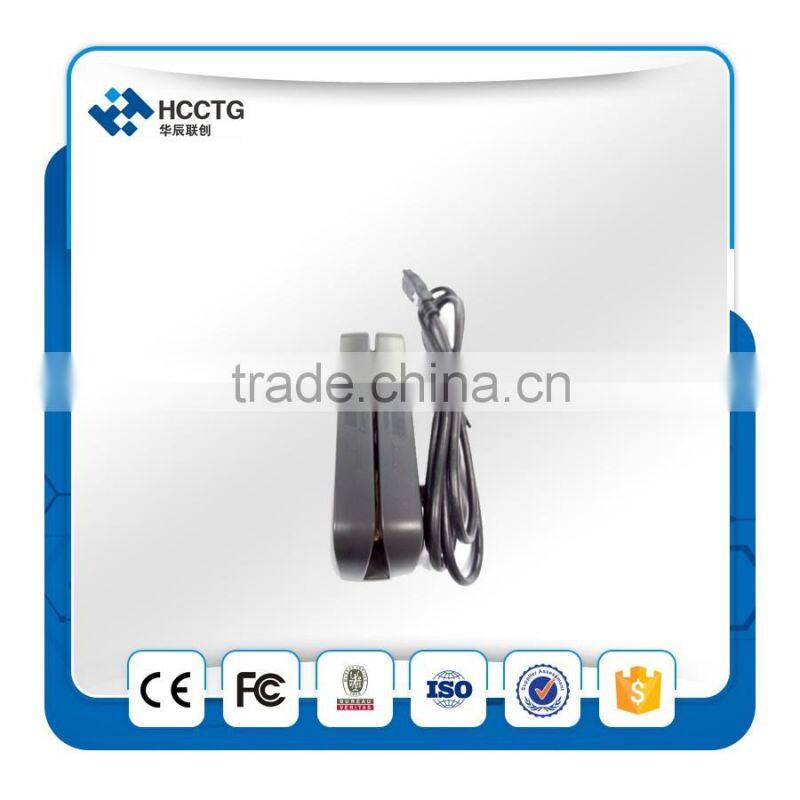

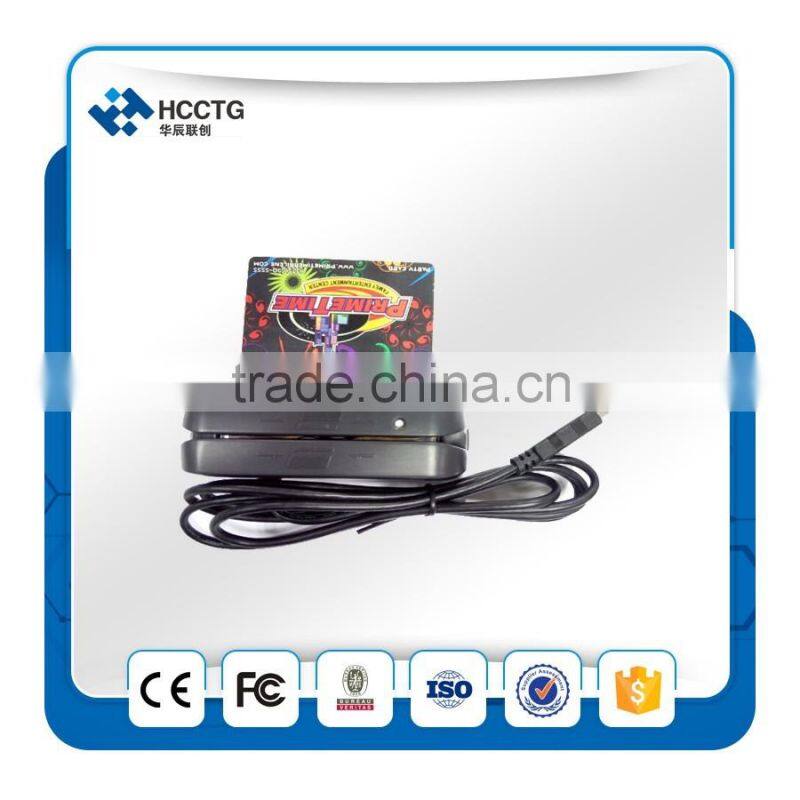

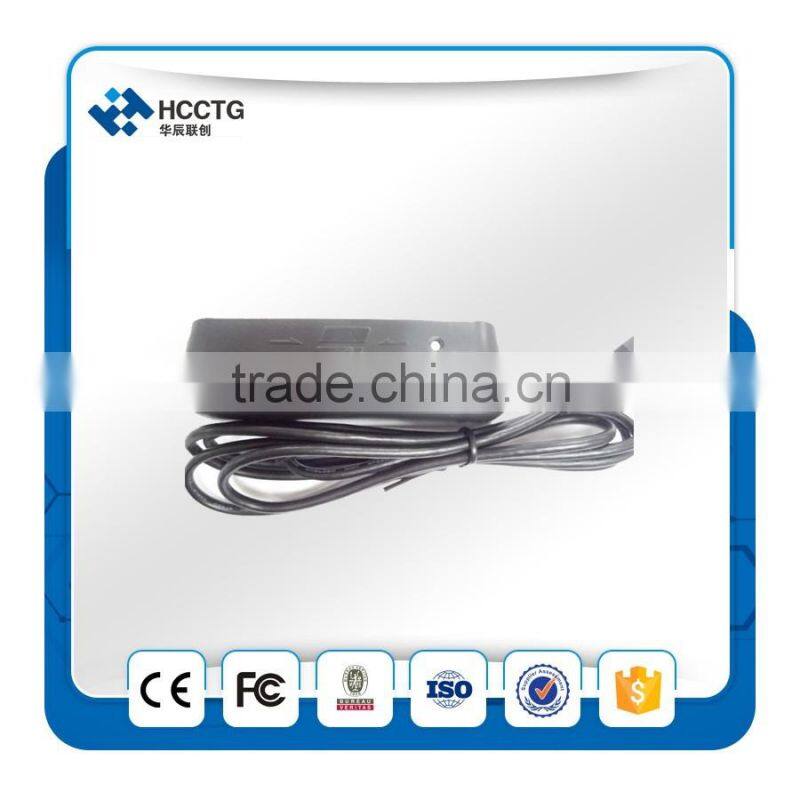

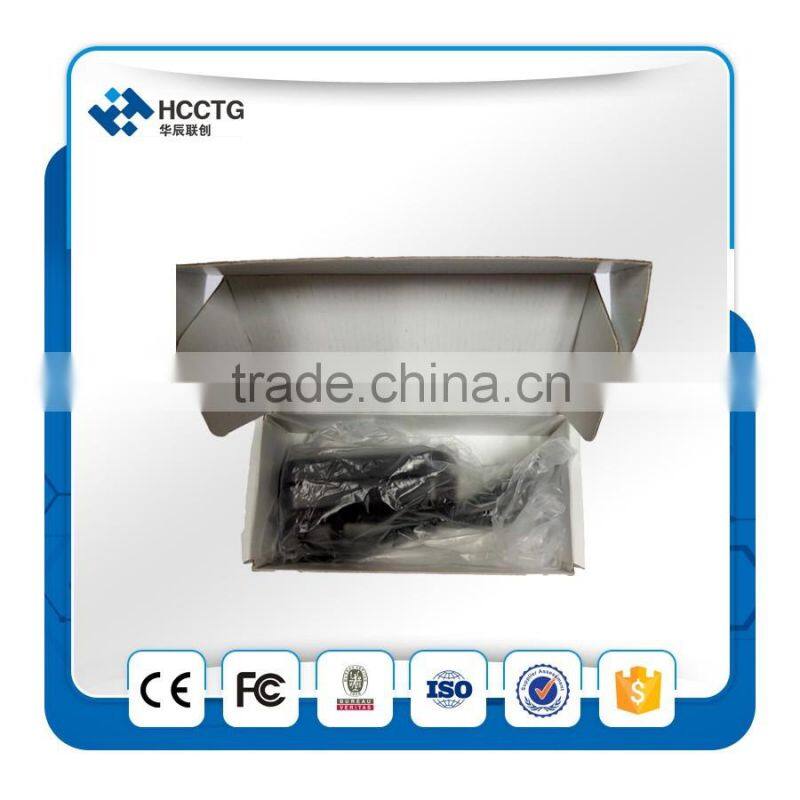

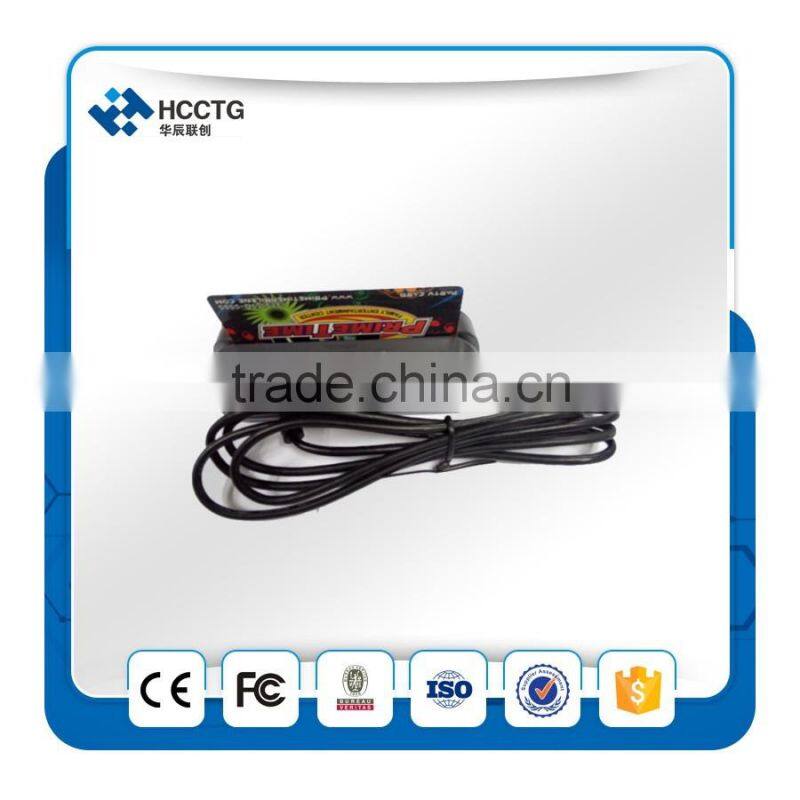

Small size RS-232 interface Magnetic Card Reader-HCC780 Picture
