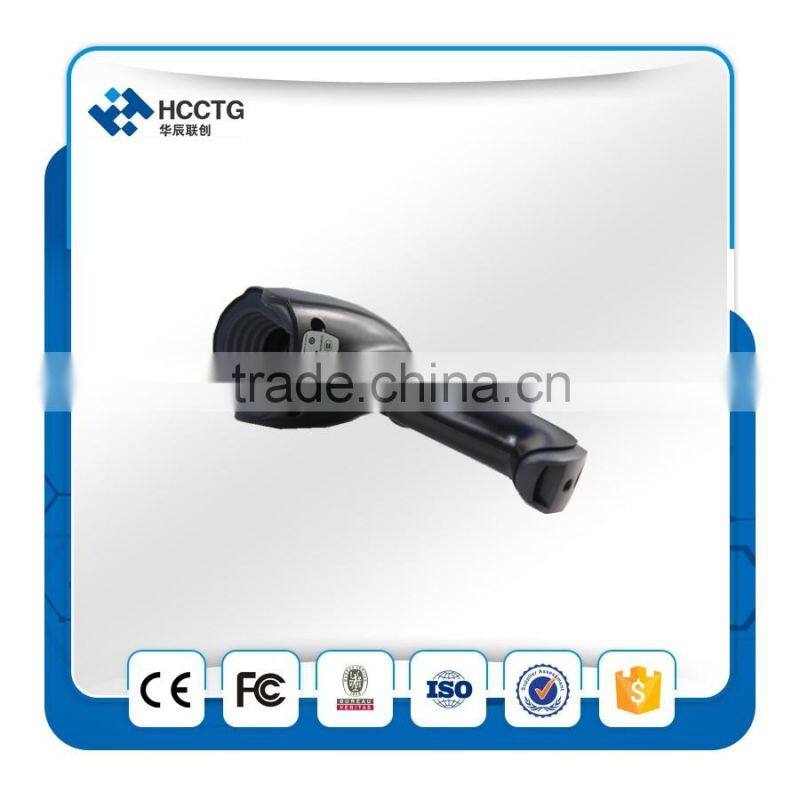

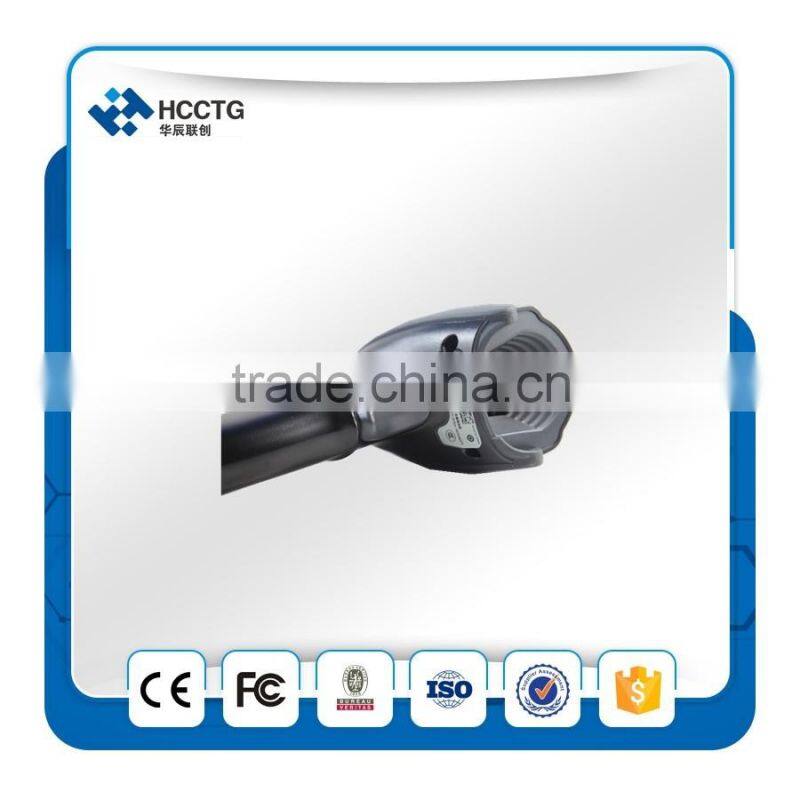

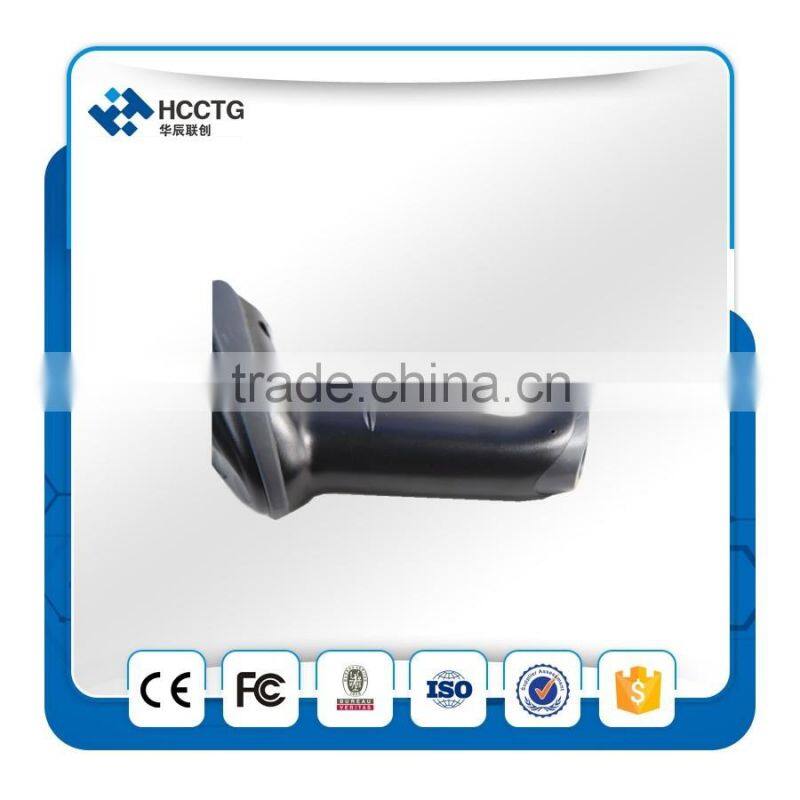

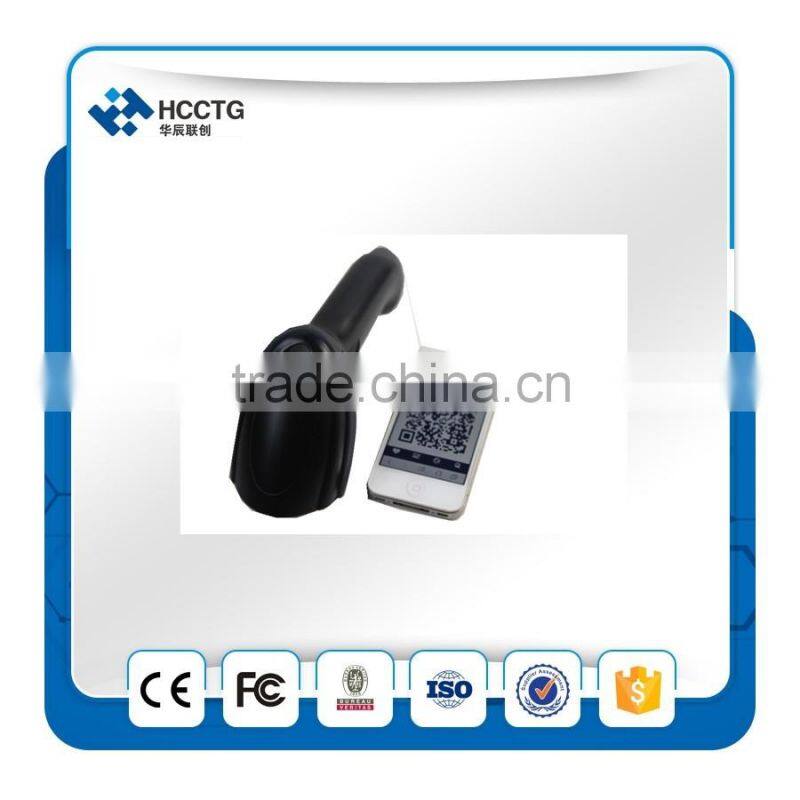

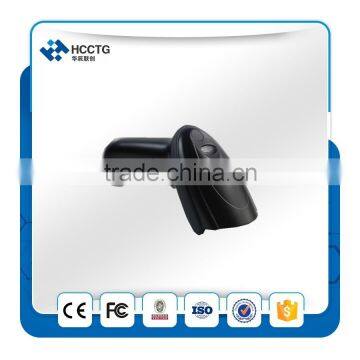

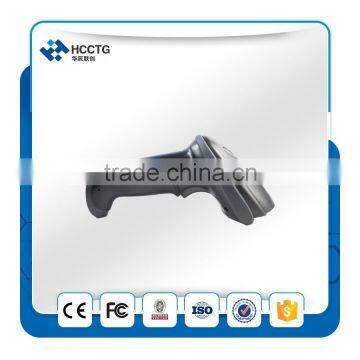

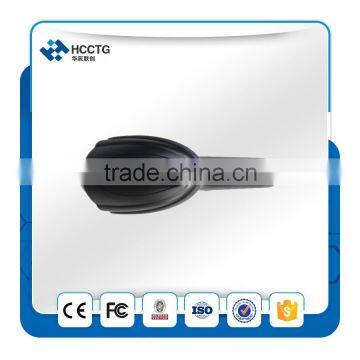

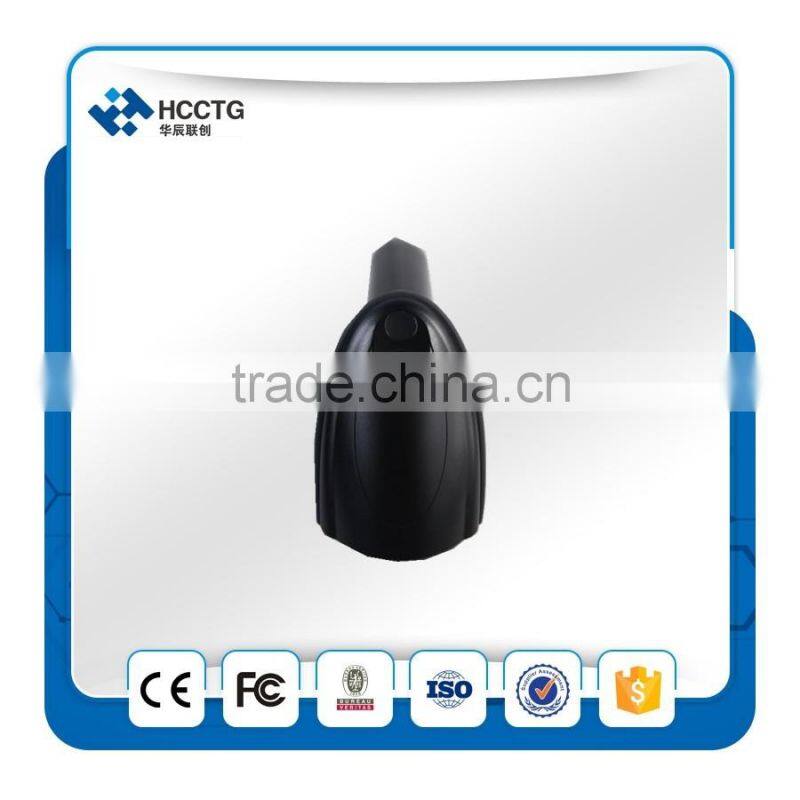

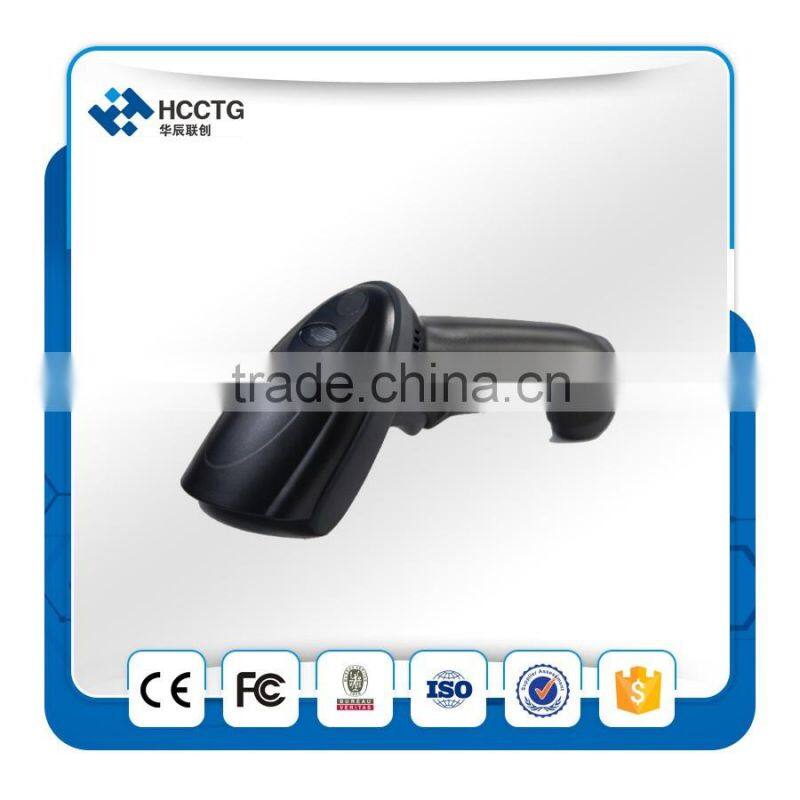

Area Image Barcode Scanner-HS5100

Physical Characteristics

Dimensions

18.0 cm H x 70cm L x 8.5 cm W

Weight (w/o cable)

160g

Power

5 VDC ±10% @ 450 mA

Power Supplies

Power supplies are available for applications that do not supply power over the host cable.

Performance Characteristics

Light Source

Aimer: 617 nm LED

Illumination: 625 nm LEDs

Field of View

39.6°(H) x 25.8°(V)

Roll

0 - 360°

Pitch

±65°or greater

Yaw

±60°or greater

Print Contrast

25% minimum reflective difference

Regulatory

Electrical Safety

UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed.

LED Safety

IEC/EN60825-1:2001, IEC/EN62471:2006

EMI/RFI

FCC Part 15 Class B, ICES-003 Class B,

EN55022 Class B, EN55024

Environmental

Compliant with RoHS directive 2002/95/EEC

Symbology Decode Capability

1D

UPC/EAN, UPC/EAN with supplementals, ISSN, BooklandEAN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39 Full, ASCII,Code93,Code11, Matrix 2 of 5, Code 32, Interleaved 2 of 5, Code 39, Trioptic Code 39,Discrete 2of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar, ISBT Concat Korean 3 of 5, Variants

2D

PDF417,MicroPDF417,ompositeCodes,TLC-39,Data Matrix,

Maxicode, QR Code, MicroQR, Aztec

Motion Tolerances

Up to 25 in. / 63.5 cm per second

Interfaces Supported

USB: HID Keyboard (default mode), COM Port Emulation

RS232: Standard

Minimum Resolution

-SR: Code 39 4.8mil, UPC 60% 5 mil,

PDF417 5 mil,Datamatrix 7.5 mil

-HD: Code 39 3 mil, UPC 60% 5 mil,

PDF417 4 mil,Datamatrix 4.8 mil

User Environment

Operating Temp

0° C to 55° C

Storage Temp

-40° C to 60° C

Humidity

5% to 95%, non-condensing

Drop Spec

Withstands multiple 6 ft. drops to concrete

Ambient Light

Immune to normal indoor lighting up to 1600 Lux.

Immunity

Immune to sunlight up to 86,000 Lux.

Accessories

Hands-Free Options

TBD
