2d android qr code usb RS232 barcode scanner HS5100
2d android qr code usb RS232 barcode scanner HS5100 Feature
- Ø Omni directional scanning capability: No need to adjust barcode
- Ø Promoted image processing: High quality image
- Ø Multiple Focal Options: Three product versions (Standard, HD and DPM), leading to improved productivity
- Ø Multi-interface: Auto interface detection
- Ø Support mobile screen reading: Capable to read coupons on mobile phone
- Ø Medical standard material: Anti- bacteria material
- Ø High IP rating: IP43
- Ø High Drop performance: 6 inches
2d android qr code usb RS232 barcode scanner HS5100 Specification
Physical Characteristics | |
Dimensions |
18.0 cm H x 70cm L x 8.5 cm W |
Weight (w/o cable) |
160g |
Power |
5 VDC ±10% @ 450 mA |
Power Supplies |
Power supplies are available for applications that do not supply power over the host cable. |
Performance Characteristics | |
Light Source |
Aimer: 617 nm LED |
Illumination: 625 nm LEDs | |
Field of View |
39.6°(H) x 25.8°(V) |
Roll |
0 - 360° |
Pitch |
±65°or greater |
Yaw |
±60°or greater |
Print Contrast |
25% minimum reflective difference |
Regulatory | |
Electrical Safety |
UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed. |
LED Safety |
IEC/EN60825-1:2001, IEC/EN62471:2006 |
EMI/RFI |
FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN55024 |
Environmental |
Compliant with RoHS directive 2002/95/EEC |
Symbology Decode Capability | |
1D |
UPC/EAN, UPC/EAN with supplementals, ISSN, BooklandEAN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39 Full, ASCII,Code93,Code11, Matrix 2 of 5, Code 32, Interleaved 2 of 5, Code 39, Trioptic Code 39,Discrete 2of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar, ISBT Concat Korean 3 of 5, Variants |
2D |
PDF417,MicroPDF417,ompositeCodes,TLC-39,Data Matrix, Maxicode, QR Code, MicroQR, Aztec |
Motion Tolerances |
Up to 25 in. / 63.5 cm per second |
Interfaces Supported |
USB: HID Keyboard (default mode), COM Port Emulation |
RS232: Standard | |
Minimum Resolution |
-SR: Code 39 4.8mil, UPC 60% 5 mil, PDF417 5 mil,Datamatrix 7.5 mil -HD: Code 39 3 mil, UPC 60% 5 mil, PDF417 4 mil,Datamatrix 4.8 mil |
User Environment | |
Operating Temp |
0° C to 55° C |
Storage Temp |
-40° C to 60° C |
Humidity |
5% to 95%, non-condensing |
Drop Spec |
Withstands multiple 6 ft. drops to concrete |
Ambient Light |
Immune to normal indoor lighting up to 1600 Lux. |
Immunity |
Immune to sunlight up to 86,000 Lux. |
Accessories | |
Hands-Free Options |
TBD |

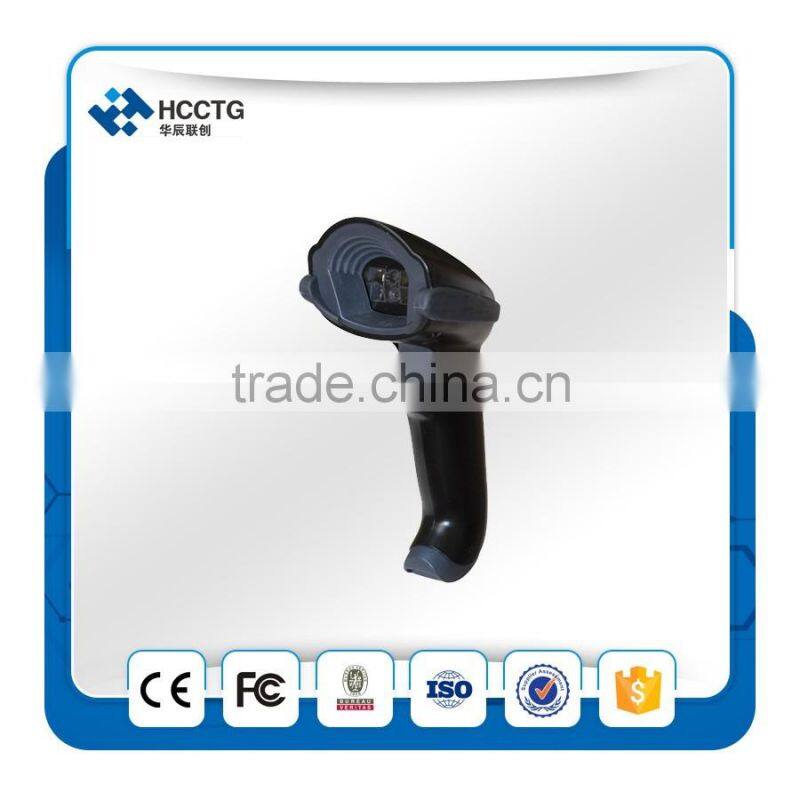

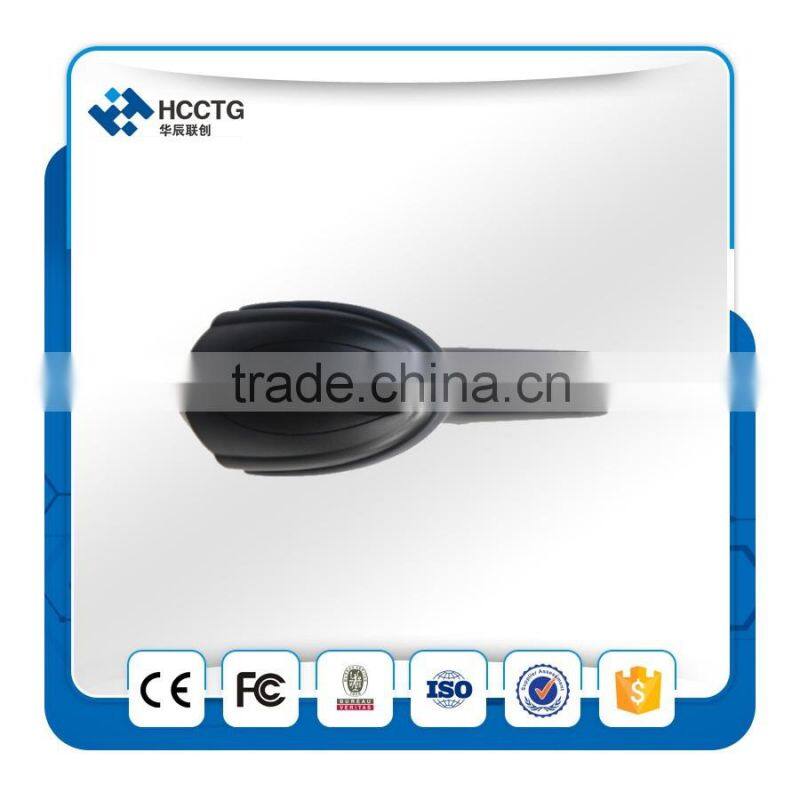

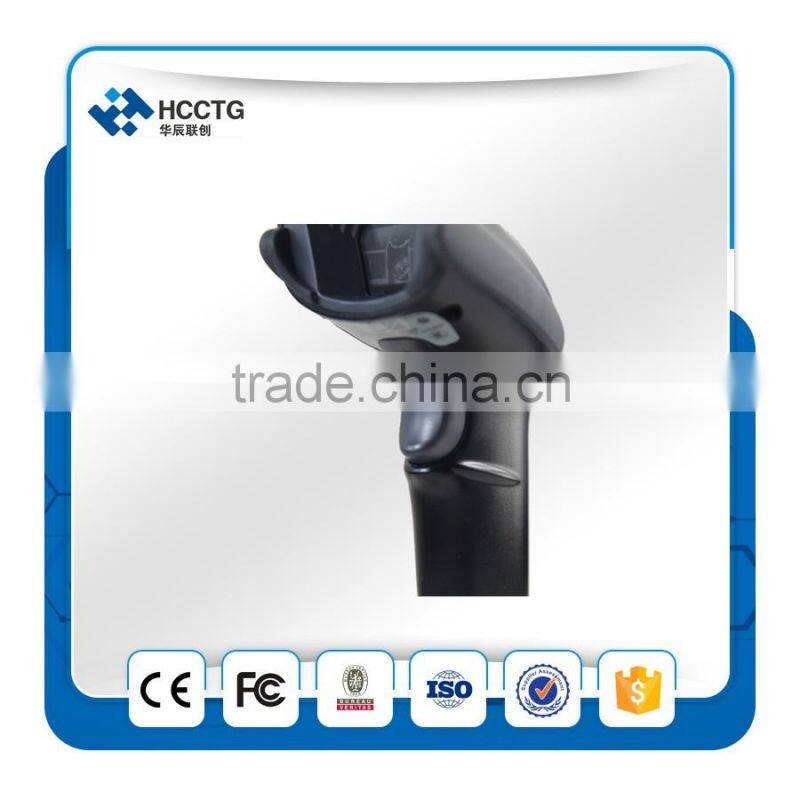

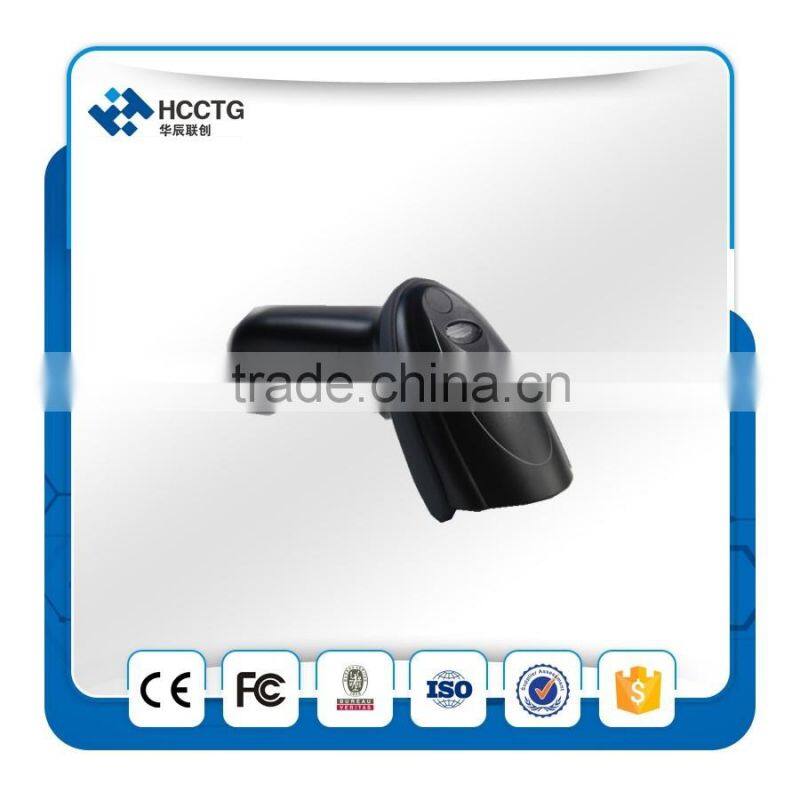

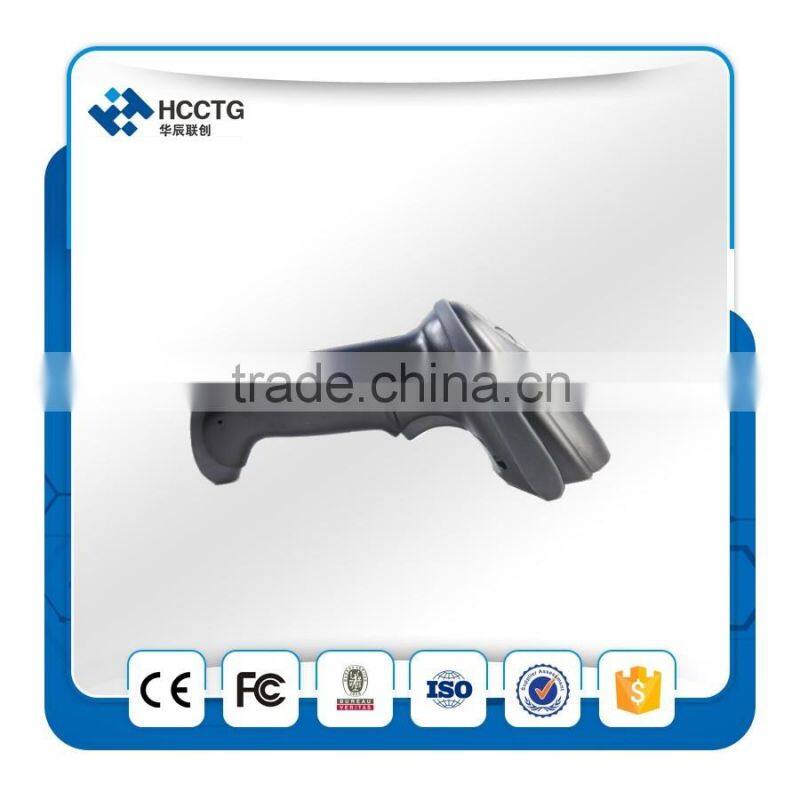

2d android qr code usb RS232 barcode scanner HS5100 Picture
