B251 5.8GHz Diversity Monitor RX For RC RTF WiFi Camera GPS 2 Drone

Specifications

5.8GHz Diversity Monitor RX For RC RTF WiFi Camera GPS 2 Drone
diversity
5.8GHz
RTF WiFi Drone
WiFi Camera Drone GPS

5.8GHz Diversity Monitor RX For RC RTF WiFi Camera GPS 2 Drone





• 7" HD 1024*600 Screen
• Two screen options: Matte screen and Mirror/brilliant screen
• 5 modes support: Diversity/RX1/RX2/AV IN//HDMI mode
• No "blue screen" .
• Support Image Zoom Function;
• Support Fatshark Nextwave&Airwave TX without distorted picture;

• Support image rotation 180 degree;

• Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
• Dual buffered AV outputs
• Can receive 2 different channels at the same time
• Not affect by 2.4GHz R/C Radios
• Anti-black, anti-blue, anti-flash.
• AV Receiver with Diversity inputs,AV, HDMI
• Small, light weight, durable,stylish
• 32 Channels



Display Screen

Diagonal:    7 inch

Resolution: 1024X600

Contrast:    700:1

Luminance: 300cd/m^2



Wireless Receiving

Working frequency:

Sensitivity:      -90dBm±1dBm

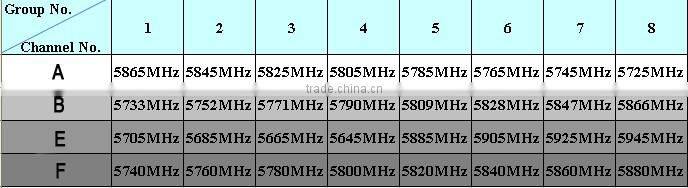

Channel:          32Channel ( 4 Band X 8 Channel )

Antenna Port:   2 X SMA,50ohm

Diversity receiving: Antenna diversity

TV System: NTSC/PAL

Video output level: 1.0Vp-p Typ,75ohm

Audio output level:1.0Vp-p Typ,10Kohm



AV Port

RX1 AV OUT:      Video,Audio output

RX2 AV OUT:      Video,Audio output

DIV AV OUT:      Diversity receiving, Video,Audio output

AV IN:            Video,Stereo Audio input HDMI IN(A Type) Support

HDMI:            1.3 Digital Input, Support HDMI Audio in

Built-in Microphone:  8Ω/1W X 2



Power Supply

DC IN:  7~28V/ 2A

DC OUT: Output Voltage:DC IN or battery voltage

                Output Current: 1A

Battery:  11.1V/1000mAh(3 series LiPo cells)

Consumption: 12V input:7.8W Dimensions



Dimensions

Main Body:  183X126X19.5mm(not include sun shadow)

Battery:  105X87.5X6.7 mm(not include prominent part)



Weight

Main body:  350 g

Battery:   95 g



Tripod connector: General 1/4 "thread

Working Temperature: -10°C~+65°C

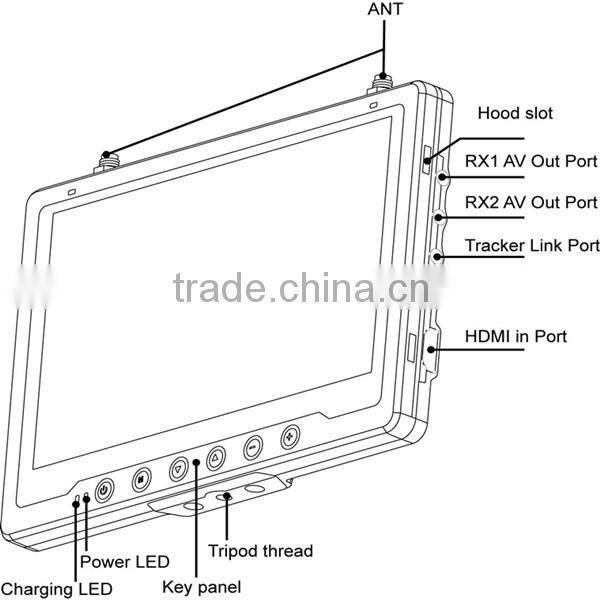

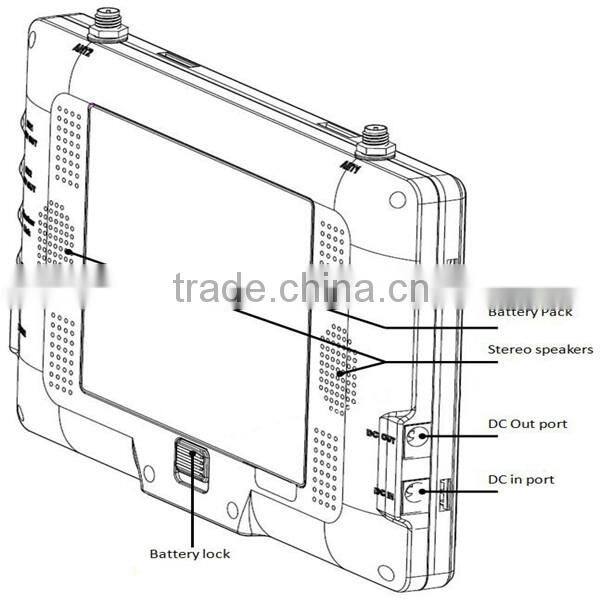

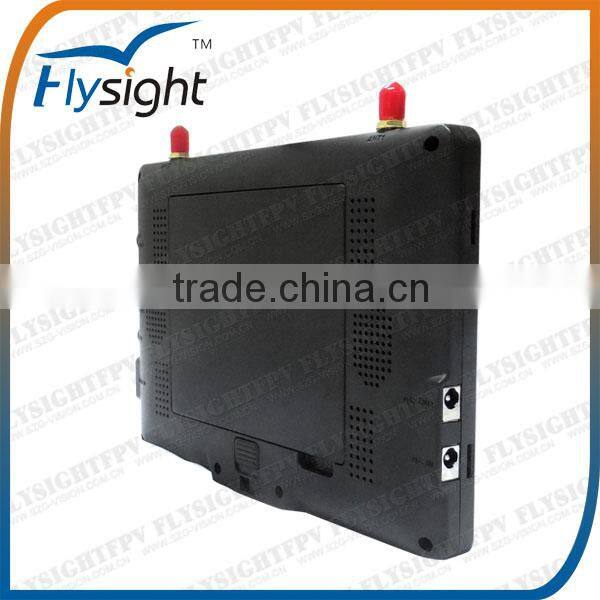

Main Body:

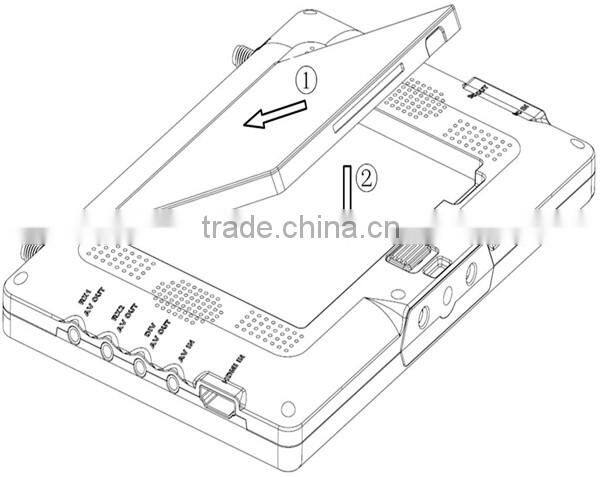

Battery installation:

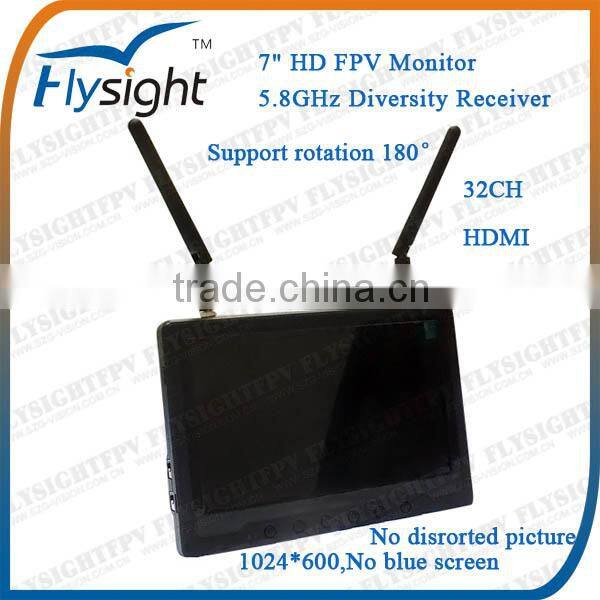

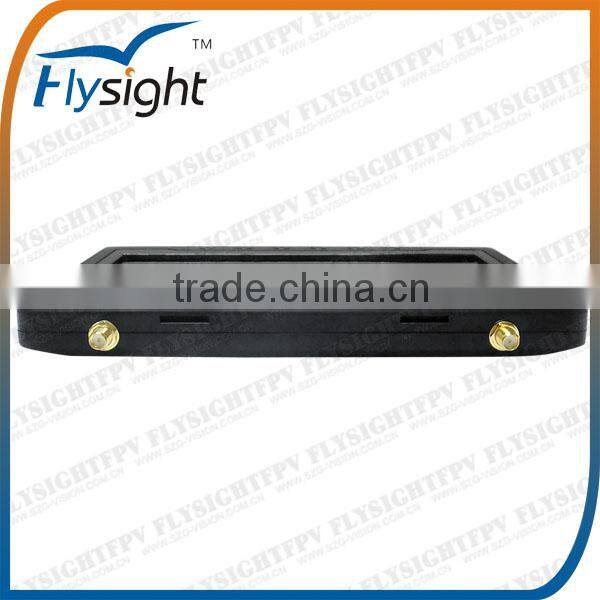

Images:

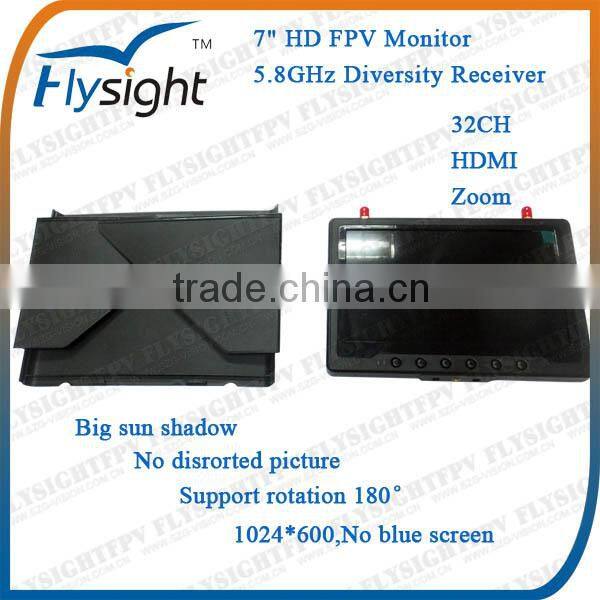

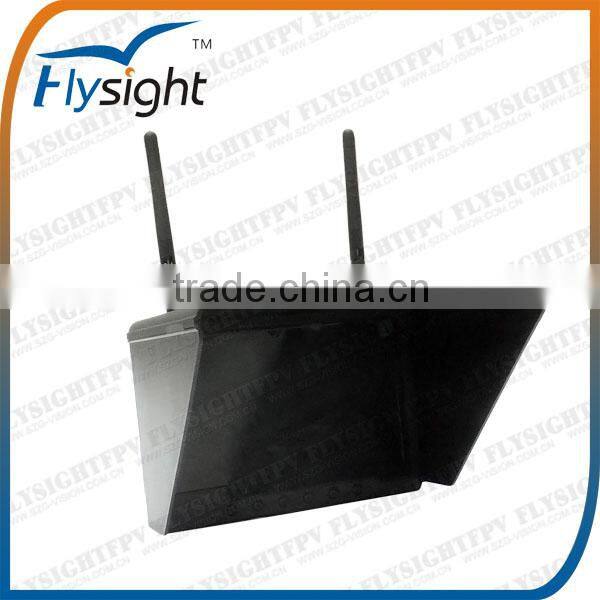

 With sun shadow:

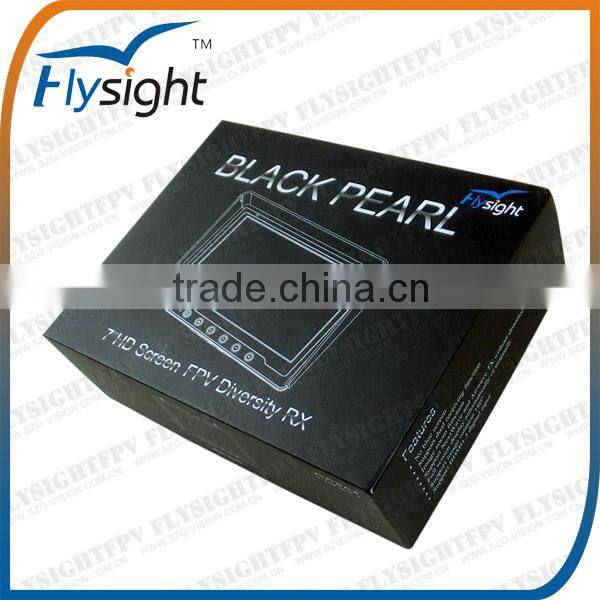

Package:





Packing List;

1*RC801

1*sunshadow

2*antenna

1*battery

AV cable

DC input cable

DC output cable
