10 Inch Cctv Led Touch Screen Monitor

Name: 10 Inch Cctv Led Touch Screen Monitor
Brand: AZUQI
SKU: 134444229
Availability: InStock

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

AZUQI

Model Number:

AKA-101MA

Azuqi International Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name AZUQI

Model Number AKA-101MA

Specifications

1.size:10.1 inch
2.Resolution:1024x600

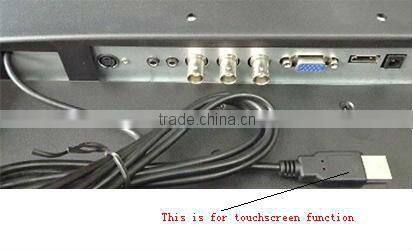

3.Connectors:VGA,BNC,Audio,HDMI,S-video
4.Regulation: CE,RoHs,FCC,C-tick etc.

10 inch cctv led touch screen monitor

Specification
Model No.		AKA-101MA
Display	Screen size	10.1 Inch
	Panel type	LED Backlight
	Max. Resolution	1024 x 600(16:9)
	Brightness	200 cd/square meter
	Contrast ratio	300:1 typical
	Viewing Angle(U/D/L/R)	40/40/10/30
	Display color	262K
	Response Time	8ms
	Power Consumption	Approx. 15 Watts
	Video system	NTSC / PAL
Interface	Solution No.	M2 (Economy style)
	Video 1 Input	CVBS Input(BNC type)x1
	Video 2 Input	CVBS Input(BNC type)x1
	Video 2 Output	CVBS Output(BNC type)x1
	PC-RGB Input	VGA (15Pin D-Sub)x 1
	Audio Input	Stereo 3.5mm input x1
	Audio Output	Stereo 3.5mm Output x1
	HDMI Input	1
	DC 12V Input	1
	Touch screen	2 points capcitive touch screen
Features	Built in Comb Filters	2D
	Built in De-interlace	3D
	Source	PC / Video1 / Video2 / HDMI
	Multi-Language	English, Chinse,French ,German,
	Multi-Language	Italian , Portuguese , Spanish
Audio	Built in Speakers(Option)	2
Cabinet	Color	Black
	Material	ABS Plastic
	Wall Mount	VESA
	Base Stand	Desktop Stand
Circumstance	Operating Temperature	0°C ~ 50°C / 32°F~122°F
Circumstance	Storage Temperature	20°C~60°C / 4°F~140°F
Packings	Unit N.W./G.W.	Approx. 1KG/1.8KG
Packings	Gift Box Dimension	315x110x292 mm (LxWxH)
Regulations	RoHs , FCC , CE , C-tick , and so on.
Specification are subject to change without notice
