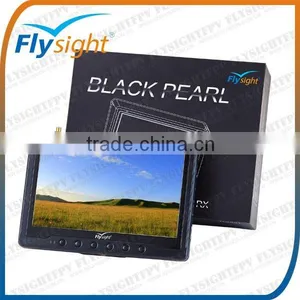

B164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame Kit ARTF thumbnail-6
B164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame Kit ARTF photo-1
B164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame Kit ARTF photo-2
B164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame Kit ARTF photo-3
B164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame Kit ARTF photo-4
B164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame Kit ARTF photo-5

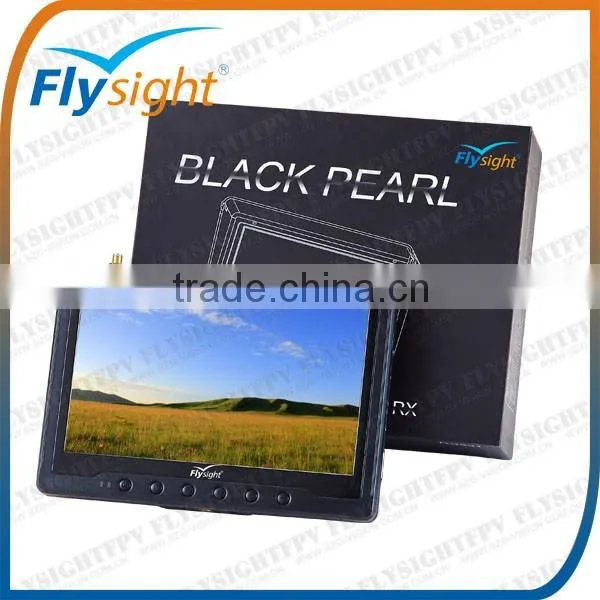

B164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame Kit ARTF photo-6
US$ 1 - 180 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, Airplane, For 2.4ghz/5.8ghz Quadcopter...
Power:
Battery
Material:
Plastic
Contact Supplier Request Quote Chat Now
Shenzhen Aoweishi Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Airplane, For 2.4ghz/5.8ghz Quadcopter...
Power Battery
Material Plastic
Plastic Type PC
Scale 1:5
Place of Origin Guangdong, China
Brand Name Flysight
Model Number RC801 for DJI Innovations F550

FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame kit ARTF



B164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame kit ARTF

  • 7" HD 1024*600 Screen
  • Two screen options: Matte screen and Mirror/brilliant screen
  • 5 modes support: Diversity/RX1/RX2/AV IN//HDMI mode
  • No "blue screen" .
  • Support Image Zoom Function;
  • Support Fatshark Nextwave&Airwave TX without distorted picture;

  • Support image rotation 180 degree;

  • Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
  • Dual buffered AV outputs
  • Can receive 2 different channels at the same time
  • Not affect by 2.4GHz R/C Radios
  • Anti-black, anti-blue, anti-flash.
  • AV Receiver with Diversity inputs,AV, HDMI
  • Small, light weight, durable,stylish
  • 32 Channels

B164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame kit ARTF



Display Screen

Diagonal:    7 inch

Resolution: 1024X600

Contrast:    700:1

Luminance: 300cd/m^2



Wireless Receiving

Working frequency:

B164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame kit ARTF

Sensitivity:      -90dBm±1dBm

Channel:          32Channel ( 4 Band X 8 Channel )

Antenna Port:   2 X SMA,50ohm

Diversity receiving: Antenna diversity

TV System: NTSC/PAL

Video output level: 1.0Vp-p Typ,75ohm

Audio output level:1.0Vp-p Typ,10Kohm



AV Port

RX1 AV OUT:      Video,Audio output

RX2 AV OUT:      Video,Audio output

DIV AV OUT:      Diversity receiving, Video,Audio output

AV IN:            Video,Stereo Audio input HDMI IN(A Type) Support

HDMI:            1.3 Digital Input, Support HDMI Audio in

Built-in Microphone:  8Ω/1W X 2



Power Supply

DC IN:  7~28V/ 2A

DC OUT: Output Voltage:DC IN or battery voltage

                Output Current: 1A

Battery:  11.1V/1000mAh(3 series LiPo cells)

Consumption: 12V input:7.8W Dimensions



Dimensions

Main Body:  183X126X19.5mm(not include sun shadow)

Battery:  105X87.5X6.7 mm(not include prominent part)



Weight

Main body:  350 g

Battery:   95 g



Tripod connector: General 1/4 "thread

Working Temperature: -10°C~+65°C





Main Body:B164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame kit ARTF

Battery installation:

B164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame kit ARTF

Images:



B164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame kit ARTFB164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame kit ARTFB164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame kit ARTFB164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame kit ARTFB164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame kit ARTF



 With sun shadow:



B164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame kit ARTF

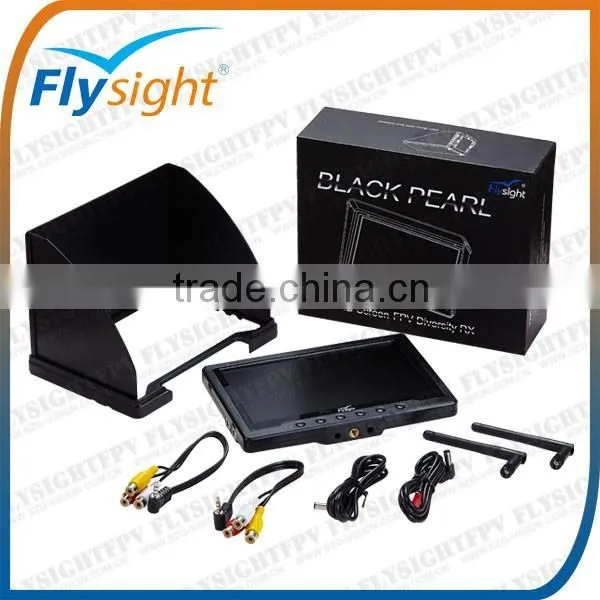

Package:



B164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame kit ARTF



Packing List;

1*RC801

1*sunshadow

2*antenna

1*battery

AV cable

DC input cable

DC output cable



B164 FPV FlySight HDMI Monitor With 5.8G Receiver For DJI Innovations F550 Hexa Frame kit ARTF
