15" capacitive touch screen with USB/I2C/RS232 interface

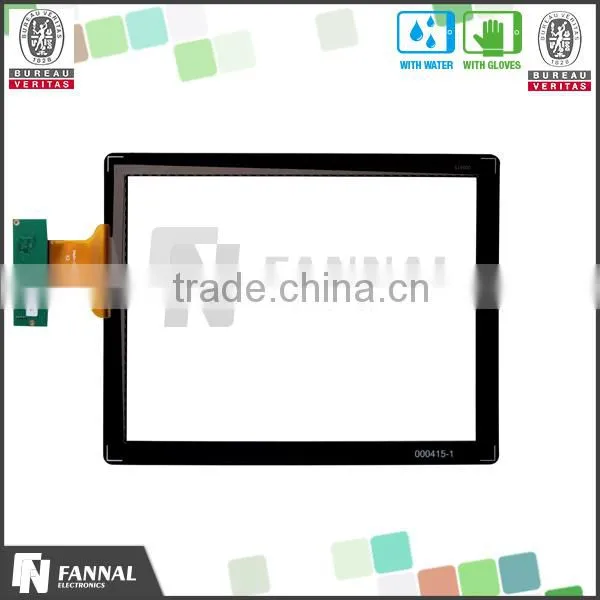

Photos of our 15" capacitive touch screen :
Fannal's Standard capacitive touch panel:
| Size | P/N | TP AA | Outline | Th | Structure | Interface | Touchs | CTP IC |
| 1.28 | FN82347 | 23.9*23.9 | 30.3*35.3 | 1.3 | G+F | I2C | 1touch | ZET6221 |
| 2.8 | FN028AV01 | 43.2*57.6 | 50.0*69.2 | 1.5 | G+G | I2C | 2touch | SSD2532 |
| 3.5 | FN035AY01 | 74.9*50.4 | 95.0*66.9 | 1.3 | G+G | I2C | 2touch | MSG2133A |
| 4.0 | FN040A01 | 51.8*86.4 | 62.3*101.1 | 1.3 | G+F | I2C | 2touch | MSG2133A |
| 4.3 | FN043AV01 | 89.1*49.4 | 105.1*66.8 | 1.5 | G+G | I2C | 2touch | SSD2532 |
| FN043S82329 | 93.6*56.2 | 106.0*63.6 | 1.8 | G+G | I2C | 2touch | S2202 | |
| FN043S82344 | 93.0*55.8 | 103.0*67.5 | 1.4 | G+G | I2C | 5touch | FT5336 | |
| FN043AY02 | 97.1*55.9 | 114.0*77.0 | 1.3 | G+G | I2C | 2touch | MSG2138a | |
| 5.0 | FN050AV02 | 108.0*64.8 | 120.0*75.9 | 1.5 | G+G | I2C | 2touch | SSD2532 |
| FN050A02-V1.0 | 108.0*64.8 | 120.7*76.3 | 1.4 | G+G | I2C | 10touch | CYTMA568 | |
| FN050AY01 | 108.0*64.8 | 127.0*85.8 | 1.8 | G+G | I2C | 5touch | FT5316 | |
| 5.7 | FN057AV01 | 112.3*83.5 | 130.9*104.8 | 3.5 | G+G+G | I2C | 2touch | SSD2533 |
| 7.0 | FN070AV01 | 154.1*85.9 | 164.5*99.6 | 1.5 | G+G | I2C | 2touch | SSD2533 |
| FN070AV02 | 154.1*85.9 | 164.5*99.6 | 1.5 | G+G | USB | 2touch | SSD2533 | |
| FN070AY02 | 156.5*88.3 | 163.5*99.6 | 1.4 | G+G | I2C | 5touch | FT5316 | |
| FN070AH01 | 153.4*87.7 | 168.5*110.6 | 1.4 | P+G | I2C | 2touch | FT5406 | |
| FN070A03 | 154.1*85.9 | 178.7*145.4 | 1.4 | G+G | I2C | 5touch | FT5406 | |
| FN070M01-2 | 154.1*85.9 | 165.0*100.0 | 1.4 | G+G | I2C | 5touch | CYTMA568 | |
| FN070AY82322 | 153.7*85.5 | 101.8*176.1 | 1.9 | G+G | I2C | 2touch | FT5206 | |
| FN070AY82343 | 153.6*90.0 | 176.2*111.9 | 1.4 | G+G | I2C | 2touch | S7020 | |
| 8.0 | FN080AV01 | 162.0*121.5 | 175.3*136.6 | 2.2 | G+G | I2C | 5touch | SSD2533 |
| FN080M01V2.0 | 162.0*121.5 | 183.0*141.0 | 1.6 | G+G | I2C | 5touch | FT5406 | |
| FN080A04 | 107.7*172.2 | 125.6*189.6 | 2.0 | G+G | I2C | 5touch | FT5406 | |
| 10.1 | FN101AY82331 | 222.7*125.3 | 234.0*142.0 | 1.5 | G+G | I2C | 5touch | FT5406 |
| FN101AE01 | 218.0*136.6 | 262.7*178.7 | 1.4 | G+G | USB | 10touch | EXC3062 | |
| FN101AS6210 | 218.0*136.6 | 258.0*168.6 | 1.6 | G+G | I2C | 5touch | FT5406 | |
| 10.2 | FN102AE01 | 222.8*132.5 | 235.0*149.5 | 1.4 | G+G | USB | 5touch | EXC3062 |
| FN102AV01 | 222.0*133.2 | 253.6*162.6 | 5.4 | G+G+G | I2C | 10touch | SSD2533 | |
| 12.1 | FN121AF01 | 250.6*189.1 | 270.0*212.5 | 2.4 | G+G | USB/IIC/RS232 | 4touch | EXC7200 |
| FN121F0.7-01 | 247.0*186.0 | 287.7*226.1 | 4.9 | G+G | USB | 2touch | EXC7200 | |
| 15.0 | FN150AF01 | 305.0*229.0 | 346.1*270.0 | 2.4 | G+G | USB/I2C/RS232 | 4touch | EXC7200 |
| FN150AF02 | 305.0*229.0 | 340.0*263.6 | 2.0 | G+G | USB/I2C/RS232 | 4touch | EETI | |
| 15.6 | FN156AF01 | 344.0*194.0 | 387.0*226.0 | 2.4 | G+G | USB/I2C/RS232 | 4touch | EXC7200 |
| FN156AF02 | 344.0*194.0 | 387.0*231.0 | 2.0 | G+G | USB/I2C/RS232 | 4touch | EXC7200 | |
| 17.0 | FN170AF01 | 340.9*273.3 | 377.0*309.0 | 2.4 | G+G | USB/I2C/RS232 | 4touch | EXC7200 |
| FN170AF02 | 216.0*383.0 | 239.0*402.0 | 2.7 | G+G | USB/I2C/RS232 | 4touch | EETI | |
| 17.3 | FN173AE01 | 385.3*217.5 | 398.1*232.8 | 1.9 | G+G | USB | 10touch | EETI |
| 18.5 | FN185AF01 | 410.8*231.4 | 452.8*281.4 | 2.4 | G+G | USB/I2C/RS232 | 4touch | EXC7200 |
| 19.0 | FN190AF01 | 377.3*302.1 | 421.0*346.0 | 2.4 | G+G | USB/I2C/RS232 | 4touch | EXC7200 |
| FN190AF02 | 377.3*302.1 | 421.0*346.0 | 2.0 | G+G | USB/I2C/RS232 | 4touch | EETI | |
| 21.5 | FN215AF01 | 478.0*269.8 | 516.0*321.0 | 2.4 | G+G | USB/I2C/RS232 | 4touch | EXC7200 |
| FN215AF02 | 478.0*269.8 | 524.0*321.8 | 2.7 | G+G | USB/I2C/RS232 | 4touch | EETI | |
| 23.0 | FN230AF01 | 511.2*288.4 | 551.2*334.4 | 2.7 | G+G | USB/I2C/RS232 | 4touch | EETI |
| 27.0 | FN270AF01 | 598.0*336.0 | 658.0*416.0 | 3.3 | G+G | USB/I2C/RS232 | 4touch | EXC7200 |
| 32.0 | FN320AF01 | 698.7*393.3 | 765.0*466.5 | 3.1 | G+G | USB/I2C/RS232 | 10touch | EETI |
Fannal's customized services for capacitive touch panel:
| Classification | Projected Capacitive Touch Screen |
| Size | 1.28 ~32 inch |
| Controller IC | Cypress, EETI, Atmel, Focaltech, SIS, Mstar, Goodix, etc. |
| Support Systems | Windows, Android, Linux |
| Power Voltage | 3.3V, 2.8V, 1.8V |
| Touch Points | 1~10 points with gesture |
| Interface | USB, I2C, RS232, SPI |
| CTP Structure | G+G, G+F, G+F+F, OGS |
| Cover Glass Thickness | 0.55, 0.7, 1.1, 1.8, 2.0, 3.0, 4.0, 5.0, 6.0 mm |
| Surface Hardness | 6H, 7H |
| Cover Lens Brand | Corning, AGC, Schott, etc |
| Cover Lens Treatment | AG, AR, AF, Silk print, Punching, Chamfer |
| Special Function | Touch with water, Glove touch, Sunlight readable |
| Bonding Type | Optical bonding, Tapes bonding with LCD |
Remark: For matching display, we have 1.28 ~17 inch TN-TFT & IPS LCD. Interface can be RGB, TTL, LVDS, SPI, MIPI.
Touch with water & Glove touch:
Sunlight readable solution:
We can make AR treatment on cover glass, Optical bonding CTP with TFT to reach sunlight readability.
AR: Anti-Reflection coating is a great way to reduce surface reflections on touch panel cover glass. AR can
significantly reduce surface reflections down to 0.5% or better. Make the transmittance higher than 98%.
Optical bonding: Normal touch screen only bond the 4 edge of TP and display. Optical bonding means Using OCA to bonding TP with LCD. It will eliminate the gap between them. It will decrease the light reflection from
the gap. Optical bonding technology will highly increase the intensity, clarity and durance of screen.
Sunlight readable solution Normal screen
All our capacitive touch screen are standard packed. We will deliver to clients within one to eight weeks according to the details of the order: We generally use DHL, FEDEX, TNT, EMS, UPS, etc.
We deliver worldwide
Fannal Electronics focus on touch screen solutions for global SMEs. We mainly work for industrial level touch screen, which is very stable and durable. Our team has more than 10 years experience in touch industry. With a strong R&D team, we offer the most suitable touch screen for our customers and help them shorten the production cycle. We have a series of standard capacitive touch screen (1.28 ~32 inch) ready for sale and customize service available. We are committed to supplying professional touch screen solution, best quality products and excellent technical support.
1. What about your export experience?
We have exported to Italy, UK, Poland, USA, Russia, Spain, Turkey, Ukraine, French, Colombia, Austria, Australia, Canada, Brazil, India and many other countries.
2. What is the lead time of the products?
Samples in stock will be delivered within one week after payment.
Mass production typically needs 4~6 weeks for delivery.
Tailor-made design drawings will begin after payment. The initial samples will be finished within 3 weeks after the drawing is approved.
3. Payment methods:
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. What certifications do you have?
ROHS, ISO9001, ISO14001, TS16949, QC080000 and OHSAS18001
5. What is the MOQ?
It depends on different products. Please keep in touch with sales to confirm the MOQ.
6. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
7. Could we place an order as OEM to produce under our own brand?
Yes, our company accepts OEM and ODM only for Capacitive Touch Panel (1.28 ~32 inch)
The sizes of the Touch Panel can be adjusted according to the customers' requirements (customizing).
