7" tft lcd touch screen module with led touch screen
- 5000 Piece / Pieces per Month
- Ning bo port or Shang hai port
- Credit Card
- 12.1" SVGA Open Frame Touch Screen Industrial LCD Display (LCD Module)
- 7" Open Type Module (OTM) Touch Screen Industrial LCD Display
- 7" Open Type Module (OTM) Touch Screen Embedded LCD Monitor
- 17" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 19" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 12.1" XGA Open Frame Touch Screen Embedded LCD Monitor (LCD Module)
Product Details
Products Status: | Stock | Screen Size: | Other, 7" | Type: | Other, capacitive touch screen panel module |
Interface Type: | Serial, USB, Other, Serial, USB, I2C | Resolution: | Other, high resolution | Brand Name: | Fannal |
Model Number: | FN070MV01 | Place of Origin: | Guangdong, China |
Product Description
Specifications
led touch screenLong life span
high stability
accept customizing

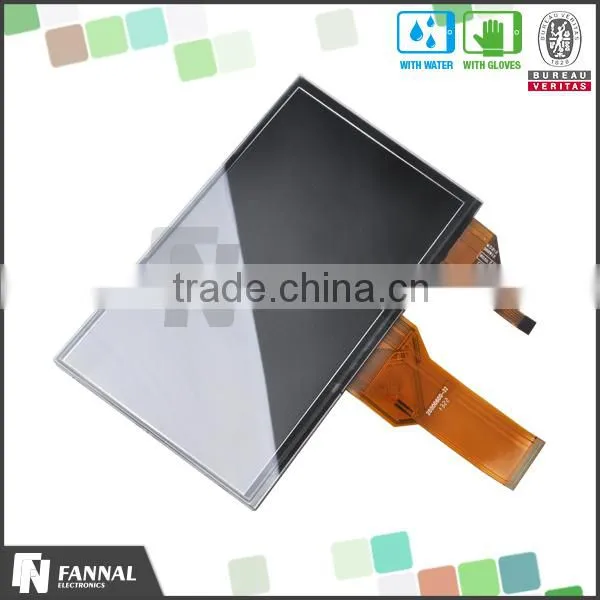

7" tft lcd touch screen module with led touch screen
Specification:
Outline dimension | 164.9*100.0 |
LCD AA | 154.08*85.92 |
CTP IC | SSD2533 |
Operating Temperature | -20 °C ~70 °C |
Number of touch | 2touch |
Brightness | 360 |
Addtional options:

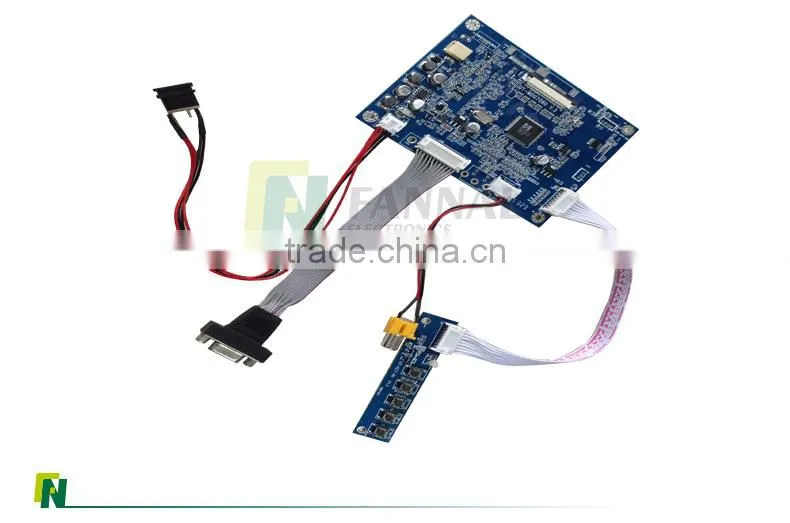

Standard 7" capacitive touch screen panel, includes the IIC interface and USB interface, can match with an extra Transfer Board which has VGA, HDMI, AV. etc. signal interfaces. If customer need these interface, we can also supply the transfer board. More details please contact with our sales.

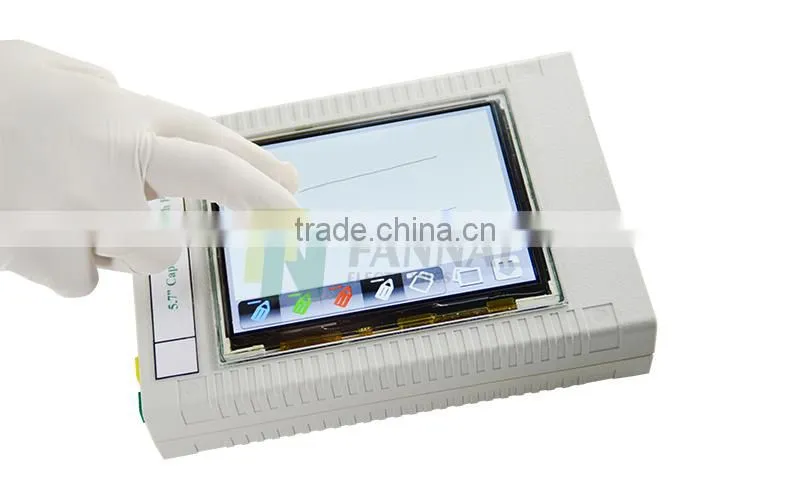

5.7 inch demo performance:
Fannal's standard capacitive touch with tft :
Panel Size | Part No | Resolution | LCD AA(mm) | Outline dimension(mm) | Brightness | No. of touch |
2.8 | FN028MV02 | QVGA | 43.2*57.6 | 50.4*69.6 | 350 | 2 |
3.5 | FN035MY01 |
HVGA
| 48.96*73.44 | 94.94*66.86 | 300 | 2 |
4.3 | FN043MY02 | WQVGA | 95.04*53.86 | 118.0*77.0 | 300 | 3 |
FN043MV04 |
WQVGA
| 95.04*53.86 | 115.1*81 | 360 | 5 | |
5 | FN050MV02 | WVGA | 108*64.8 | 120*76.3 | 315 | 2 |
FN050MY01 | WVGA 800*480 | 108*64.8 | 127.0*85.8 | 250 | 5 | |
5.7 | FN057MV01 | VGA 640*480 | 115.2*86.4 | 130.9*104.8 | 1600 | 2 |
7 | FN070MV01 | WVGA 800*480 | 154.08*85.92 | 164.9*100.0 | 360 | 2 |
FN070MV02 | WVGA | 154.08*85.92 | 164.9*100.0 | 360 | 2 | |
FN070MY03 | WVGA | 154.08*85.92 | 164.9*100.0 | 360 | 5 | |
8 | FN080MV01 | SVGA 800*600 | 162.0*121.5 | 176.9*140.2 | 600 | 2 |
10.2 | FN102MV01 | WVGA 800*480 | 220.0*133.2 | 253.6*162.6 | 425 | 10 |
Fannal's Capability and Service in LCD Display/Touch Screen Area:
Touch Controller | small and medium size | Focaltech, Mstar, Goodix, Elan, Solomen, Synaptics , cypress, Atmel |
medium and big size | EETI, SIS | |
CTP interface | USB,IIC,RS232 | |
Customize service | Cover glass | AG/AF/AR, silk print, anti-vandal |
Function | touch with water, touch with gloved | |
Sun Readable Solution | High brightness backlight, optical bonding, AR | |
Bongding size | CTP with tft: MAX 17 inch, CTP: MAX 27 inch | |
Quality certifications | SGS, UKAS Environmental Management Standard, IECQ |
All our products are standard packed, for detailed information you can contact our customer service representatives.
Our company will deliver the order to you within one to eight weeks according to the details of the order.
Fannal is a professional supplier of capacitive touch screen, target at small and medium enterprises all over the world.
Our products are widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields. Our strength lies in understanding the special needs of clients, to provide the most suitable products and professional technical supports.
1. Have you ever exported to foreign countries?
We started our international trade at the beginning of 2013, so most of our customers still remain in the stage of sample testing and initial batch.
We have exported to Italy, UK, Poland, USA, Russia, Spain, Turkey, Ukraine, French, Colombia, Austria, Australia, Canada, Brazil, India and many other countries.
2. What is the lead time of the products?
Samples in stock will be delivered within a week after payment.
Mass production typically needs four to six weeks for delivery.
Tailor-made design drawings will begin after payment. The initial samples will be finished within 3 weeks after the drawing is approved.
3. Payment methods:
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. What certifications do you have?
ROHS, ISO9001, ISO14001, TS16949, QC080000 and OHSAS18001
5. What is the MOQ?
It depends on different products. Please keep in touch with sales to confirm the MOQ.
6. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
7. Could we place an order as OEM to produce under our own brand?
Yes, our company accepts OEM and ODM ONLY for the following types:
Resistive Touch Panel (1.8 inch to 19 inches)
Capacitive Touch Panel (1.5 inch to 32 inches)
The sizes of the Touch Panel can be adjusted according to the customers' requirements (customizing).
