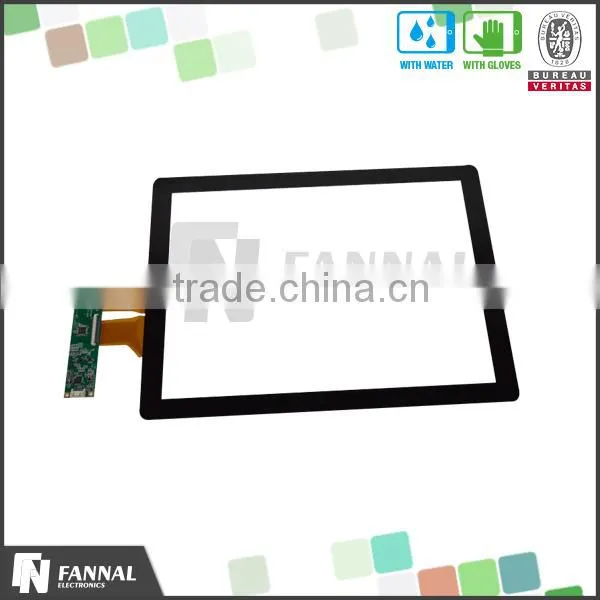

Help CenterG+g Structure Capacitive 15inch Touch Panel
Related Products
-
Multi-Touch Gesture 15.6 Touch Screen PanelUS$ 1 - 100MOQ: 1 Piece -
Industry Control Capacitive Screen Touch Panel 27" With USB/IIC/RS232 InterfacesUS$ 1 - 230MOQ: 1 Piece
-
Support Water Touch PCT Touch Screens,smart Home Touch Control Panel 7 InchUS$ 1 - 50MOQ: 1 Piece
-
10-point Touch 17 Inch G+g Structure Capacitive Touch Screen PanelUS$ 1 - 100MOQ: 1 Piece
-
Glass Based Capacitive Touch Screen 14"US$ 1 - 100MOQ: 1 Piece
Product Specification
Item |
Specification |
Type |
Projected capacitive touch panel |
Model Number |
FN150A03-V1.0 |
Size |
15 inch |
Structure |
G+G |
Controller IC |
EETI 3188 |
Visible Area,mm |
305.00*228.00 |
Outline Dimension,mm |
328.00*255.00*3.30 |
Cover Glass Thickness,mm |
2.00 |
Interface |
USB/IIC/RS232 |
Touch Points |
10 touch |
Surface Hardness |
6H |
Transmittance |
> 87% |
Operating temperature |
-20℃~70℃ |
Storage temperature |
-30℃~80℃ |
Durability |
> 300 million touch |
Remark: For more information please go to our website Http://
We can also make the matching module ( TFT + CTP ). Please contact us for details.
l. Cover lens customization
Size:1.28”-42”
Irregular shaped:support punching(down to radius 0.4mm)
Color:different color silk printing or logo printing(UV resistance ink supportable)
Strengthen glass:Coring Gorilla,AGC,Schott
Thickness:0.55;0.7;1.0;1.1;1.8;2.0;2.5;3.0;4.0;5.0;6.0mm
2.Special function
support different gloves(Nylon,Latex,Cotton,Wool,Snow gloves),max 5mm thickness
Support touch with water,oil,water-oil mixture,salt water
Support thick cover lens,max 6mm tempered glass
3.Sunlight readability
1.hight brightness TFT 500nit~1600nit
2.Optical boning technology
3.AG/AR/AF coating
We have more than 10 years experience on industrial touch panel field.
We are ISO:9001, ISO:14001 Certified with Class 1,000 clean rooms.
We provide standard capacitive touch panel (1.28 ~42 inch)&LCD modules and custom touch solutions with sunlight readability,optical bonding,AR/AG/AF treatment on cover glass etc.
Our advanced equipment,quality raw material, precise process management methods and professional technical team generate our high quality products,and ensure long term supply.
We offer the best debugging and after sales services worldwide.
Our factory
Trade terms |
FOB CIF EXW CPT |
Payment terms |
T/T |
MOQ |
Normally 1k, but depends on different products |
Lead time |
4~8 weeks |
